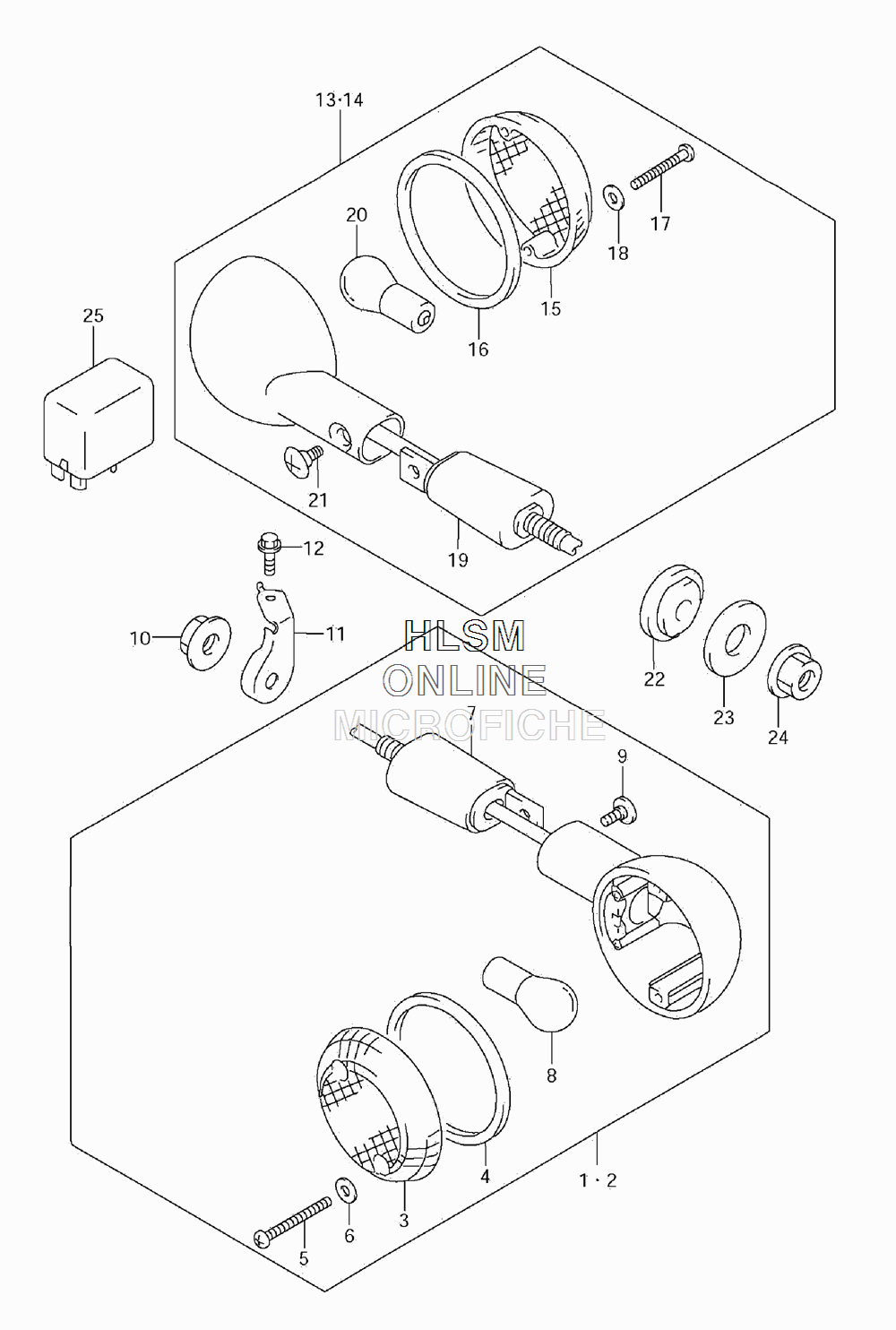

TURN SIGNAL ASSY. для Suzuki GZ 250 K8 - 2008 года выпуска
-
№АртикулНазвание
-
135601-33DA0 LAMP ASSY, FRONT RIGHT HAND (INCL. 3 - 9)LAMP ASSY, FRONT RIGHT HAND (INCL. 3 - 9)
-
235602-33DA0 LAMP ASSY, FRONT LEFT HAND (INCL. 3 - 9)LAMP ASSY, FRONT LEFT HAND (INCL. 3 - 9)
-
335612-38A30 LENSLENS
-
435613-38A00 GASKETGASKET
-
503211-0425B SCREWSCREW
-
635627-43010 GASKETGASKET
-
735619-45C10 STAY, TURN SIGNALSTAY, TURN SIGNAL
-
809471-12083 BULB (12V, 21/5W)BULB (12V, 21/5W)
-
935623-38A01 SCREWSCREW
-
1008316-1010B NUTNUT
-
1135670-12F00 BRACKET, FR RIGHT HANDBRACKET, FR RIGHT HAND
-
1135680-12F00 BRACKET, FR LEFT HANDBRACKET, FR LEFT HAND
-
12D1557-0612B BOLT, BRACKETBOLT, BRACKET
-
1335603-33DA0 LAMP ASSY, REAR TURN, RIGHT (INCL. 15 - 21)LAMP ASSY, REAR TURN, RIGHT (INCL. 15 - 21)
-
1435604-33DA0 LAMP ASSY, REAR TURN, LEFT (INCL. 15 - 21)LAMP ASSY, REAR TURN, LEFT (INCL. 15 - 21)
-
1535612-38A01 LENSLENS
-
1635613-38A00 GASKETGASKET
-
1703211-0425B SCREWSCREW
-
1835627-43010 GASKETGASKET
-
1935659-45C10 STAY, TURN SIGNALSTAY, TURN SIGNAL
-
2009471-12045 BULB (12V, 21W)BULB (12V, 21W)
-
2135623-38A01 SCREWSCREW
-
2235695-17C00 SPACERSPACER
-
2309160-10501 WASHER (10.5X30X2.3)WASHER (10.5X30X2.3)
-
2408316-1010B NUTNUT
-
2538610-12FA0 RELAY ASSY, TURN SIGNALRELAY ASSY, TURN SIGNAL
