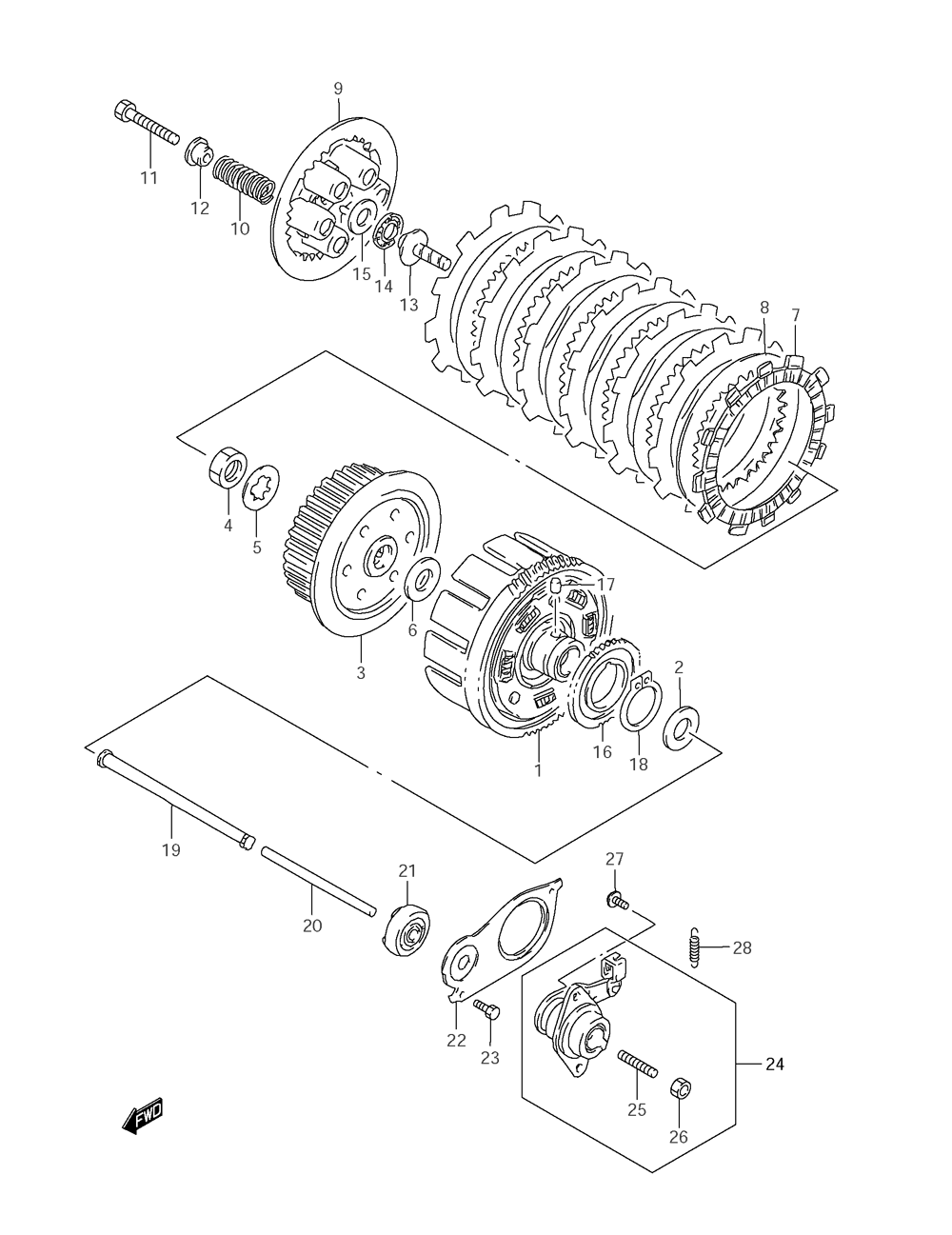

CLUTCH для Suzuki GS500F K9 - 2009 года выпуска
-
№АртикулНазвание
-
121200-44102 GEAR, PRIMARY DRIVEN (NO. OF TEETH: 76)GEAR, PRIMARY DRIVEN (NO. OF TEETH: 76)
-
209181-25223 WASHER (25X38X1.0)WASHER (25X38X1.0)
-
321411-44101 HUB, SLEEVEHUB, SLEEVE
-
409140-20001 NUTNUT
-
509167-20006 WASHER (20.5X38X0.8)WASHER (20.5X38X0.8)
-
609160-20015 WASHER (20X44X3)WASHER (20X44X3)
-
721441-37400 PLATE, DRIVEPLATE, DRIVE
-
821451-28C31 PLATE, DRIVENPLATE, DRIVEN
-
921462-14301 DISK, PRESSUREDISK, PRESSURE
-
1009440-20019 SPRINGSPRING
-
1109100-06145 BOLTBOLT
-
1221414-01D00 SPACERSPACER
-
1323121-44100 PIECE, PUSHPIECE, PUSH
-
1409263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
1509160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
1616321-01D10 GEAR, OIL PUMP DRIVE (NO. OF TEETH: 39)GEAR, OIL PUMP DRIVE (NO. OF TEETH: 39)
-
1709261-06002 PINPIN
-
1808331-31383 CIRCLIPCIRCLIP
-
1923110-44111 ROD, PUSH RIGHT HANDROD, PUSH RIGHT HAND
-
2023111-24A01 ROD, PUSH LEFT HANDROD, PUSH LEFT HAND
-
2109285-06011 OIL SEAL (6X34X10)OIL SEAL (6X34X10)
-
2223117-44102 HOLDER, OIL SEALHOLDER, OIL SEAL
-
2301500-0612B BOLTBOLT
-
2423200-01D00 SCREW ASSEMBLY, RELEASESCREW ASSEMBLY, RELEASE
-
2509134-06010 ...SCREW...SCREW
-
2608310-00067 ...NUT...NUT
-
2703141-0616B SCREWSCREW
-
2809443-08001 SPRINGSPRING
