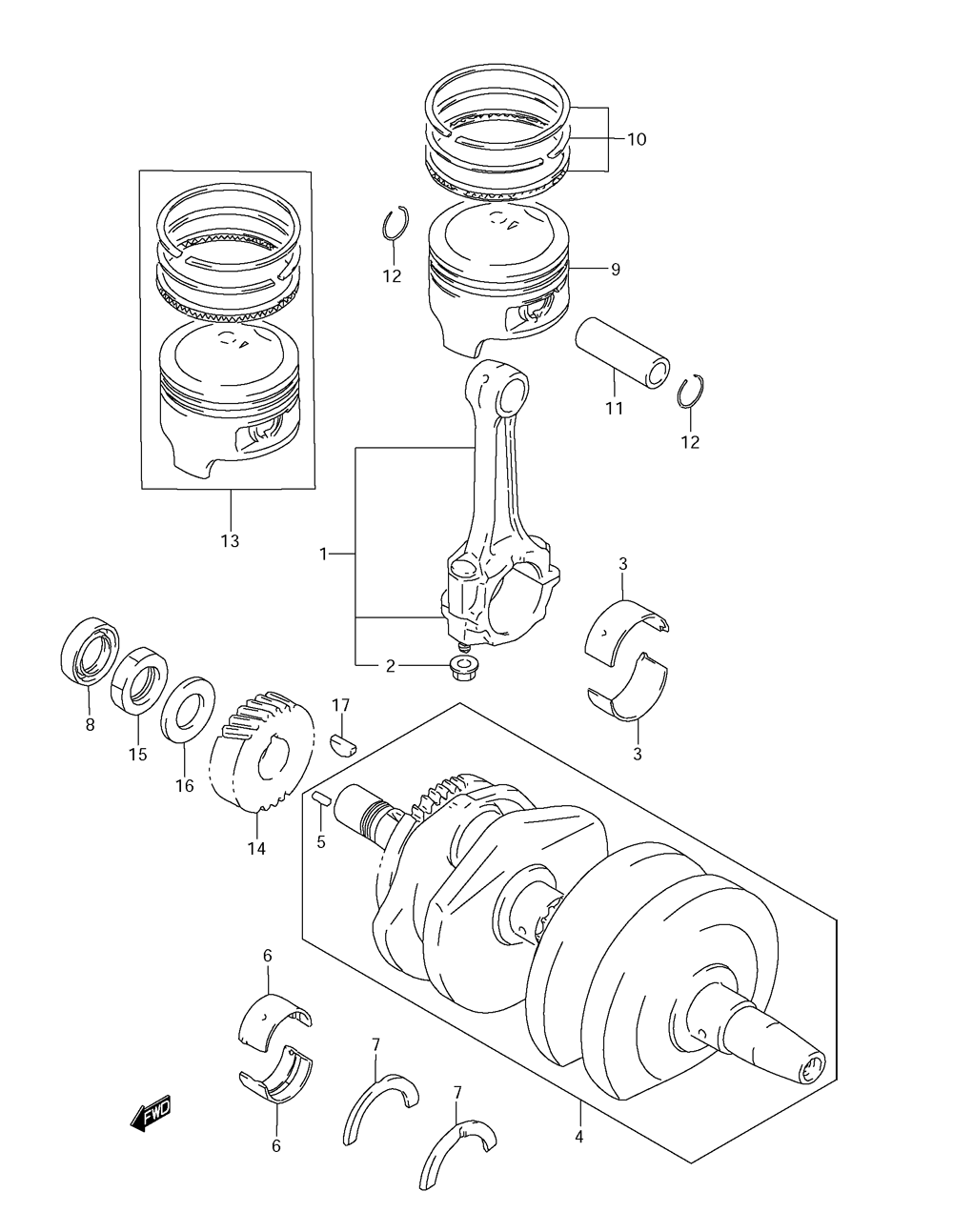

CRANKSHAFT W/ PISTON для Suzuki GS500F K9 - 2009 года выпуска
-
№АртикулНазвание
-
112160-44101 ROD ASSEMBLY, CONNECTINGROD ASSEMBLY, CONNECTING
-
209159-08033 ...NUT...NUT
-
312164-01D01-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
312164-01D01-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
312164-01D01-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
312164-01D01-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
412220-01D02 CRANKSHAFTCRANKSHAFT
-
509202-03016 ...PIN...PIN
-
612229-01D01-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
612229-01D01-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
612229-01D01-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
612229-01D01-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
712228-44106 BEARING, THRUSTBEARING, THRUST
-
809283-22015 OIL SEAL, RIGHT HAND (22X40X8)OIL SEAL, RIGHT HAND (22X40X8)
-
912111-01D01-0F0 PISTONPISTON
-
1012140-01D20 RING SET, PISTONRING SET, PISTON
-
1112151-45501 PIN, PISTONPIN, PISTON
-
1209381-18002 CIRCLIPCIRCLIP
-
1312100-01D00-050 PISTON SET (OVER SIZE: 0.5) (OPTIONAL)PISTON SET (OVER SIZE: 0.5) (OPTIONAL)
-
1421111-44100 GEAR, PRIMARY DRIVE (NO. OF TEETH: 28)GEAR, PRIMARY DRIVE (NO. OF TEETH: 28)
-
1509140-24007 NUTNUT
-
1609164-25001 WASHERWASHER
-
1708341-31059 KEYKEY
