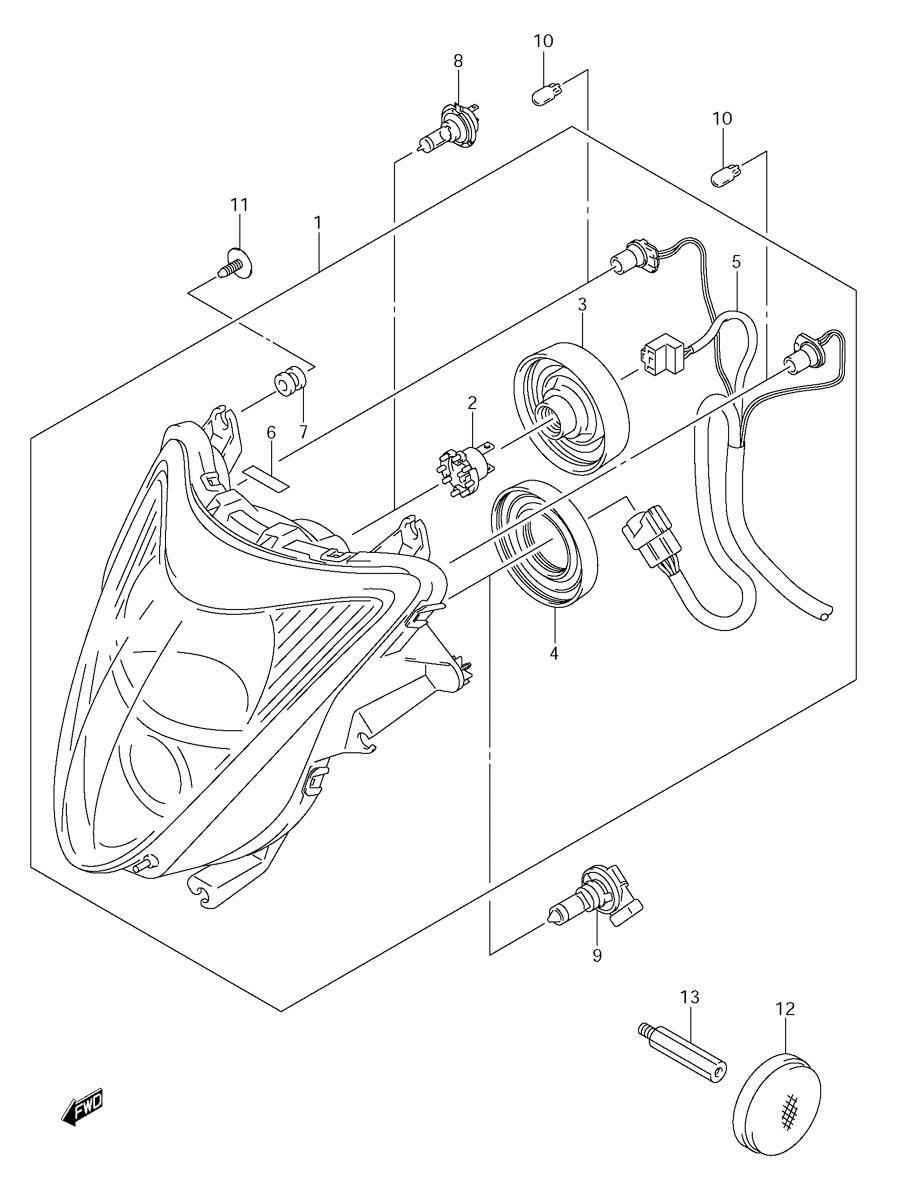

HEADLAMP для Suzuki GSX-1300R K9 - 2009 года выпуска
-
№АртикулНазвание
-
135100-15H30-999 HEADLAMP ASSEMBLYHEADLAMP ASSEMBLY
-
235175-24F00 ...ADAPTOR ASSEMBLY...ADAPTOR ASSEMBLY
-
335173-15H00 ...SOCKET, COVER...SOCKET, COVER
-
435173-14G00 ...SOCKET, COVER...SOCKET, COVER
-
536118-15H00 ...CORD ASSEMBLY...CORD ASSEMBLY
-
694443-21H00 ...TAPE (5X20X0.4)...TAPE (5X20X0.4)
-
709320-09039 ...CUSHION...CUSHION
-
809471-12188 BULB (12V55W,H7)BULB (12V55W,H7)
-
909471-12222 BULB (12V65W,H9)BULB (12V65W,H9)
-
1009471-12216 BULB (12V5W)BULB (12V5W)
-
1109136-05062 SCREW, HEADLAMP (5X15)SCREW, HEADLAMP (5X15)
-
1235950-14A10 REFLEX REFLECTOR ASSEMBLY, FRONTREFLEX REFLECTOR ASSEMBLY, FRONT
-
1309119-06104 BOLT, FR SIDEBOLT, FR SIDE
