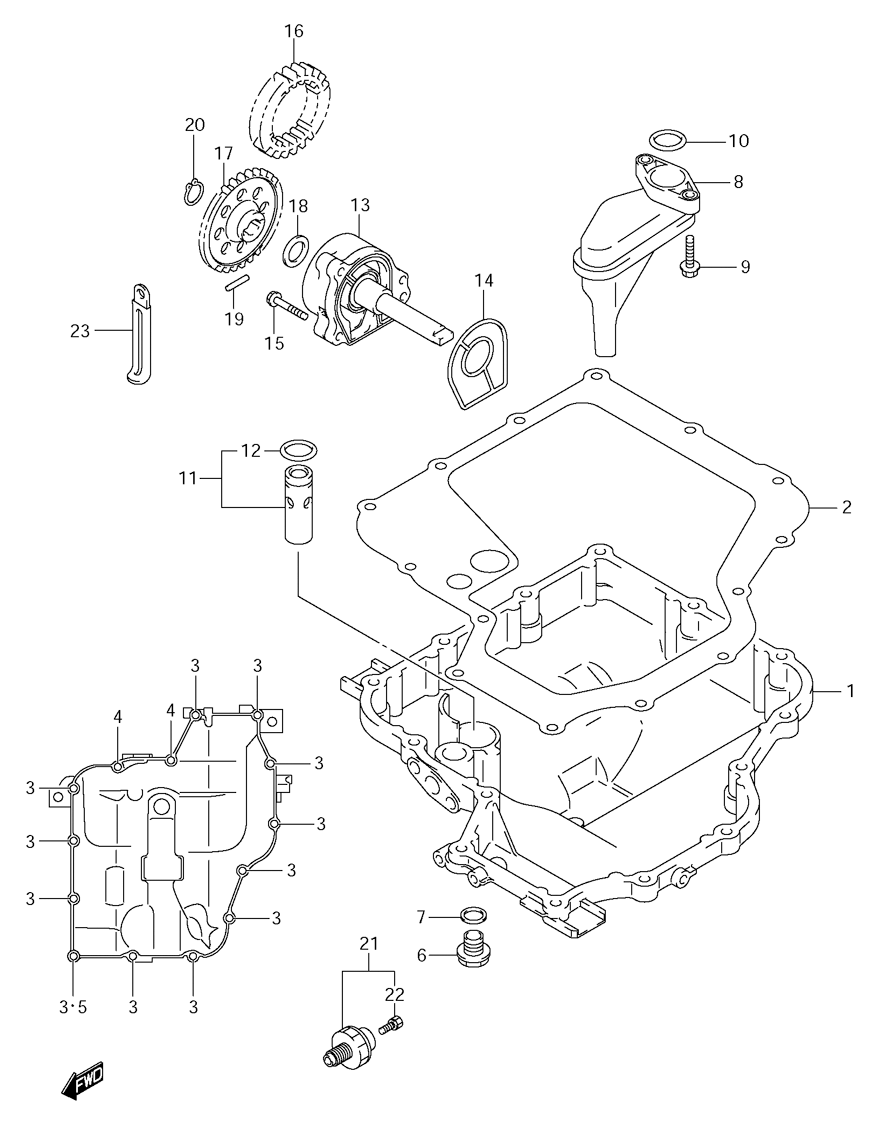

OIL PAN W/ OIL PUMP для Suzuki GSX-1300R K9 - 2009 года выпуска
-
№АртикулНазвание
-
111511-24F10 PAN, OILPAN, OIL
-
211489-24F01 GASKET, OIL PANGASKET, OIL PAN
-
301547-0630A BOLTBOLT
-
401547-0640A BOLTBOLT
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
609247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
709168-14002 GASKETGASKET
-
816520-24F00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
901550-0620A BOLTBOLT
-
1009280-19008 O RING (DIAMETER: 2.62,INSIDE DIAMETER: 20.3)O RING (DIAMETER: 2.62,INSIDE DIAMETER: 20.3)
-
1116440-24F00 VALVE ASSEMBLY, OIL RELIEFVALVE ASSEMBLY, OIL RELIEF
-
1209280-13004 ...O RING...O RING
-
1316400-24F01 PUMP ASSEMBLY, ENGINE OILPUMP ASSEMBLY, ENGINE OIL
-
1416491-24F00 O RINGO RING
-
1501547-0630A BOLTBOLT
-
1616321-33E10 GEAR, OIL PUMP DRIVE (NO. OF TEETH: 34)GEAR, OIL PUMP DRIVE (NO. OF TEETH: 34)
-
1716331-33E00 GEAR, OIL PUMP DRIVEN (NO. OF TEETH: 37)GEAR, OIL PUMP DRIVEN (NO. OF TEETH: 37)
-
1809181-12158 WASHERWASHER
-
1909261-05006 PINPIN
-
2008331-31126 CIRCLIPCIRCLIP
-
2137820-33D10 SWITCH ASSEMBLY, OIL PRESSURESWITCH ASSEMBLY, OIL PRESSURE
-
2237822-33D00 ...BOLT...BOLT
-
2309404-06429 CLAMPCLAMP
