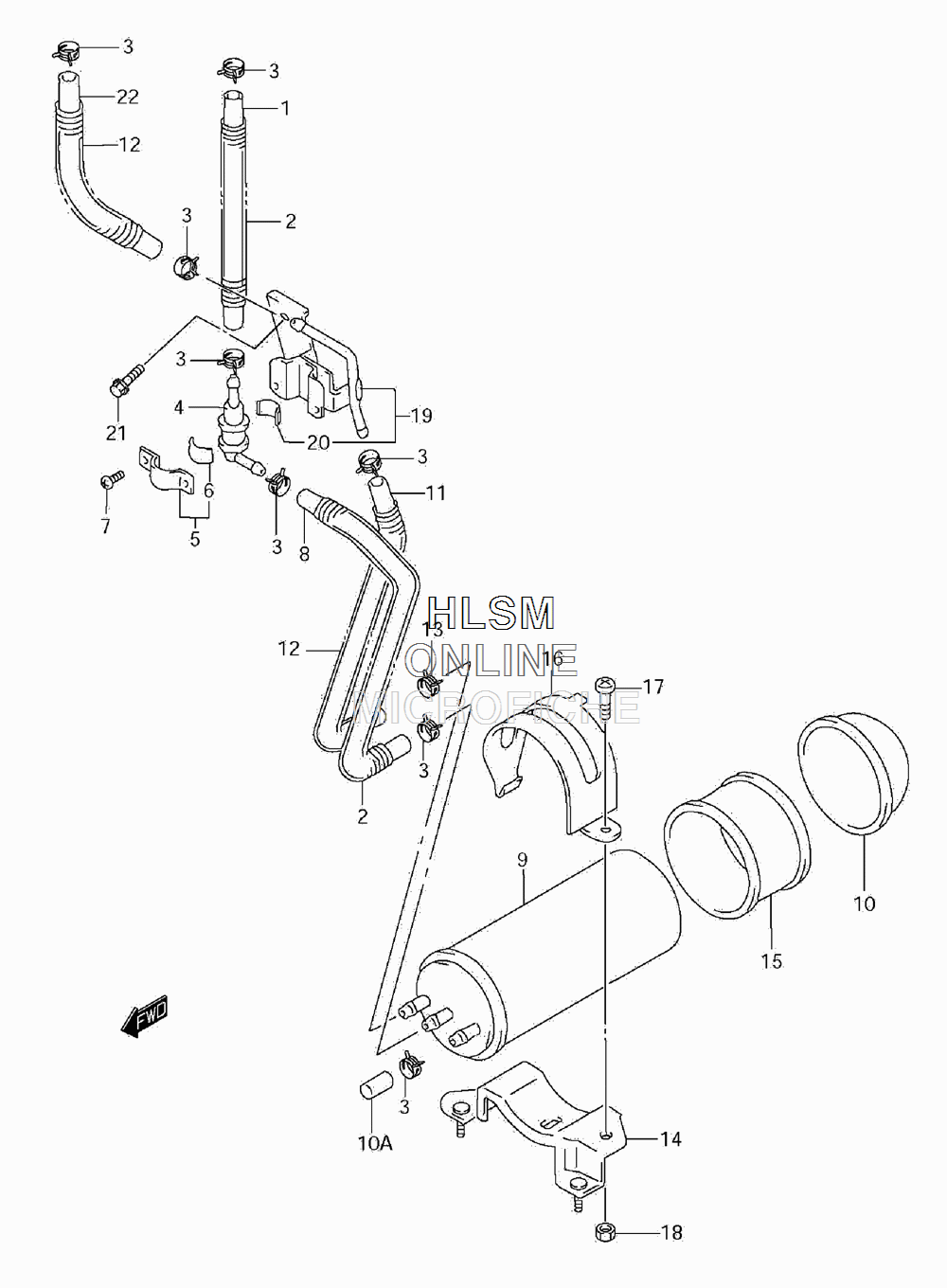

EVAPO SYSTEM (CALIFORNIA ONLY) для Suzuki GZ 250 K9 - 2009 года выпуска
-
№АртикулНазвание
-
144434-13F10 HOSE, TANK AND VALVEHOSE, TANK AND VALVE
-
209440-13043 SPRINGSPRING
-
309401-11413 CLIPCLIP
-
444240-17C00 VALVE, BREATHERVALVE, BREATHER
-
544892-24A00 PLATE (INCL. 6)PLATE (INCL. 6)
-
644894-24A00 CUSHIONCUSHION
-
702142-0408B SCREWSCREW
-
844435-13F00 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
917210-26E00 CANISTERCANISTER
-
1017211-48E00 CAPCAP
-
10A09251-07003 CAP, PURGECAP, PURGE
-
1144436-13F00 HOSE, CANISTER AND CARBURETORHOSE, CANISTER AND CARBURETOR
-
1209440-13052 SPRINGSPRING
-
1309401-12404 CLIPCLIP
-
1444880-02F01 BRACKET, CANISTERBRACKET, CANISTER
-
1544883-26E00 CUSHIONCUSHION
-
1644882-02F01 HOLDERHOLDER
-
17D2116-0612B SCREWSCREW
-
1808316-1006B NUTNUT
-
1944890-13F00 BRACKET, BREATHER VALVE (INCL. 20)BRACKET, BREATHER VALVE (INCL. 20)
-
2044894-24A00 CUSHIONCUSHION
-
21D1557-0612B BOLTBOLT
-
2209355-54115-600 HOSE, CARBURETORHOSE, CARBURETOR
