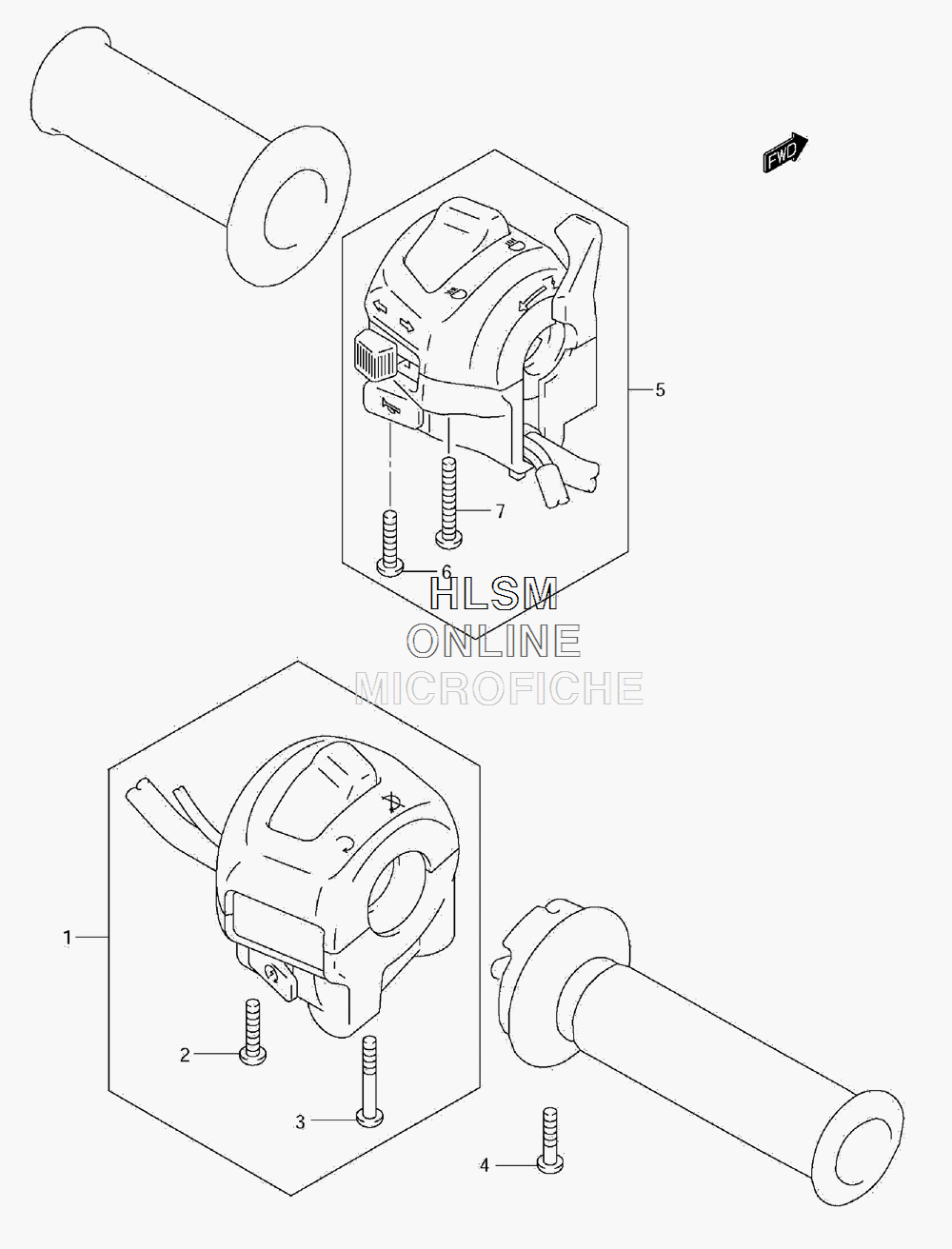

HANDLEBAR - LEVERS / SWITCHES для Suzuki GZ 250 K9 - 2009 года выпуска
-
№АртикулНазвание
-
137200-13FB0 SWITCH ASSY, HANDLE RIGHT HAND (INCL. 2 - 3)SWITCH ASSY, HANDLE RIGHT HAND (INCL. 2 - 3)
-
2D2116-0530B SCREWSCREW
-
3D2116-0550B SCREWSCREW
-
402112-0510B SCREW, THROTTLE CABLESCREW, THROTTLE CABLE
-
537400-13FB0 SWITCH ASSY, HANDLE LEFT HAND (INCL. 6 - 7)SWITCH ASSY, HANDLE LEFT HAND (INCL. 6 - 7)
-
6D2116-0525B SCREWSCREW
-
7D2116-0545B SCREWSCREW
