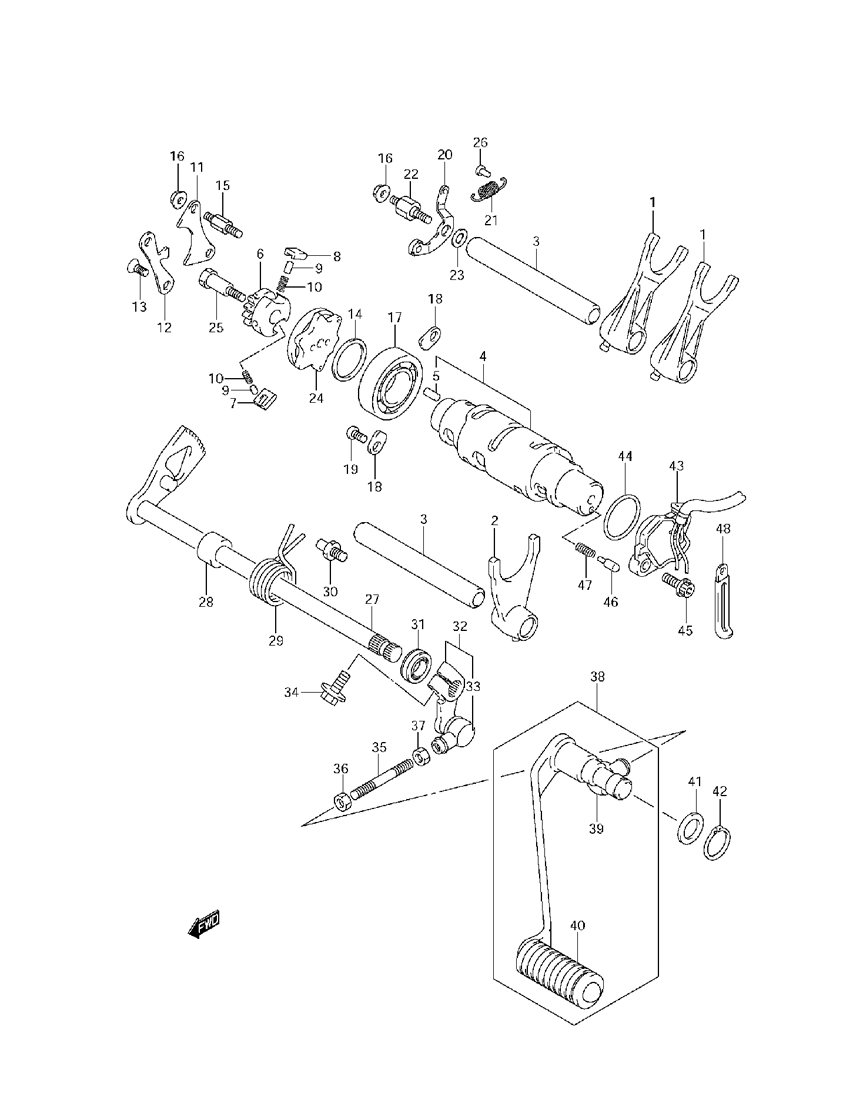

GEAR SHIFTING для Suzuki VZ800 K9 - 2009 года выпуска
-
№АртикулНазвание
-
125211-38A10 FORK, GEAR SHIFTING NO.1FORK, GEAR SHIFTING NO.1
-
225221-38A10 FORK, GEAR SHIFTING NO.2FORK, GEAR SHIFTING NO.2
-
325411-38A00 SHAFT, GEAR SHIFTING FORKSHAFT, GEAR SHIFTING FORK
-
425310-41F00 CAM, GEAR SHIFTING (INCLUDES ITEM(S) 5)CAM, GEAR SHIFTING (INCLUDES ITEM(S) 5)
-
504221-04089 PINPIN
-
625322-31310 GEAR, CAM DRIVENGEAR, CAM DRIVEN
-
725323-34201 PAWL, NO.1PAWL, NO.1
-
825324-34201 PAWL, NO.2PAWL, NO.2
-
909261-05003 PINPIN
-
1009440-04003 SPRINGSPRING
-
1125331-38A00 LIFTER, PAWLLIFTER, PAWL
-
1225341-38A00 GUIDE, CAMGUIDE, CAM
-
1309126-06011 SCREW (6X12)SCREW (6X12)
-
1409160-25059 WASHER (25X32X3)WASHER (25X32X3)
-
1525332-38A10 BOSS, SHIFT PAWL LIFTERBOSS, SHIFT PAWL LIFTER
-
1608316-1006B NUTNUT
-
1709262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1824741-21A00 RETAINER, BEARINGRETAINER, BEARING
-
1909125-06110 SCREW (6X12)SCREW (6X12)
-
2025350-38A00 STOPPER, CAMSTOPPER, CAM
-
2109443-09027 SPRINGSPRING
-
2225355-38A10 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
2308211-06141 WASHERWASHER
-
2425380-38A02 PLATE, STOPPERPLATE, STOPPER
-
2525312-38A00 PIN, SHIFT CAMPIN, SHIFT CAM
-
2609223-04004 RIVET, SPRING STOPPERRIVET, SPRING STOPPER
-
2725510-38A00 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
2809180-12068 SPACER (12X20X15.3)SPACER (12X20X15.3)
-
2909444-26013 SPRINGSPRING
-
3025671-01011 STOPPER, ARMSTOPPER, ARM
-
3109285-12002 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
3225520-47000 ARM, GEAR SHIFT LINK (INCLUDES ITEM(S) 33)ARM, GEAR SHIFT LINK (INCLUDES ITEM(S) 33)
-
3325526-47000 COVER, DUSTCOVER, DUST
-
3401547-0620A BOLT, GEAR ARMBOLT, GEAR ARM
-
3525525-22A10 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
3609140-06011 NUT, GEAR SHIFTNUT, GEAR SHIFT
-
3708310-00067 NUT, RNUT, R
-
3825600-41F00 LEVER ASSY, GEAR SHIFT (INCLUDES ITEM(S) 39 - 40)LEVER ASSY, GEAR SHIFT (INCLUDES ITEM(S) 39 - 40)
-
3925526-47000 COVER, DUSTCOVER, DUST
-
4025652-38B00 RUBBER, GEAR FRRUBBER, GEAR FR
-
4109160-14055 WASHER, GEAR SHIFTWASHER, GEAR SHIFT
-
4208331-3114A CIRCLIPCIRCLIP
-
4337730-41F01 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
4409280-26005 O RING (D:2.4,ID:25.7)O RING (D:2.4,ID:25.7)
-
4507120-0516A BOLTBOLT
-
4609209-05011 CONTACT, SWITCHCONTACT, SWITCH
-
4709440-04010 SPRINGSPRING
-
4809404-06429 CLAMP (L:45)CLAMP (L:45)
