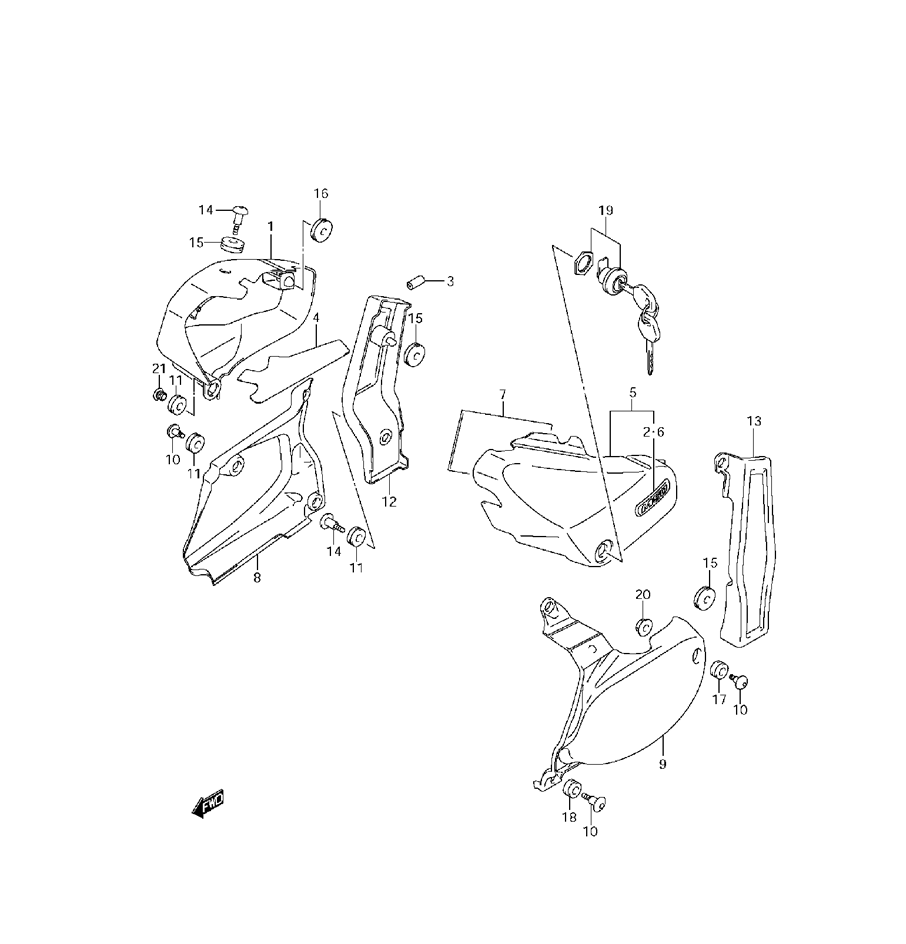

SIDE COVER для Suzuki VZ800 K9 - 2009 года выпуска
-
№АртикулНазвание
-
147110-39G60-YAY COVER, FRAME RIGHT HAND (BLACK) (US & CANADA) (INCLUDES ITEM(S) 2 - 4)COVER, FRAME RIGHT HAND (BLACK) (US & CANADA) (INCLUDES ITEM(S) 2 - 4)
-
147110-39G40-YAY COVER, FRAME RIGHT HAND (BLACK) (CALIF. ONLY) (INCLUDES ITEM(S) 2 - 4)COVER, FRAME RIGHT HAND (BLACK) (CALIF. ONLY) (INCLUDES ITEM(S) 2 - 4)
-
268131-39G00 EMBLEMEMBLEM
-
394631-35F00 MOLDINGMOLDING
-
447166-41F00 SHIELD, RIGHT HANDSHIELD, RIGHT HAND
-
547210-39G30-YAY COVER, FRAME LEFT HAND (BLACK) (INCLUDES ITEM(S) 6 - 7)COVER, FRAME LEFT HAND (BLACK) (INCLUDES ITEM(S) 6 - 7)
-
668131-39G00 EMBLEM, M50EMBLEM, M50
-
747217-41F00 CUSHION, SIDE COVERCUSHION, SIDE COVER
-
847130-41F10 COVER, SIDE LOWER RIGHT HANDCOVER, SIDE LOWER RIGHT HAND
-
947231-41F10 COVER, SIDE LOWER LEFT HANDCOVER, SIDE LOWER LEFT HAND
-
1047133-43H00 SCREWSCREW
-
1109320-08021 CUSHIONCUSHION
-
1247141-41F01-019 COVER, SIDE REAR RIGHT HAND (BLACK)COVER, SIDE REAR RIGHT HAND (BLACK)
-
1347241-41F00-019 COVER, SIDE REAR LEFT HAND (BLACK)COVER, SIDE REAR LEFT HAND (BLACK)
-
1409139-06126 SCREWSCREW
-
1509320-08018 CUSHIONCUSHION
-
1609320-08028 CUSHION BOX REARCUSHION BOX REAR
-
1709320-09501 CUSHIONCUSHION
-
1809320-09045 CUSHION BOX FRONTCUSHION BOX FRONT
-
1995700-07860 LOCK SET, FUEL LIDLOCK SET, FUEL LID
-
2008316-1006B NUT, SIDE LOWER LEFT HANDNUT, SIDE LOWER LEFT HAND
-
2109250-09001 CAPCAP
