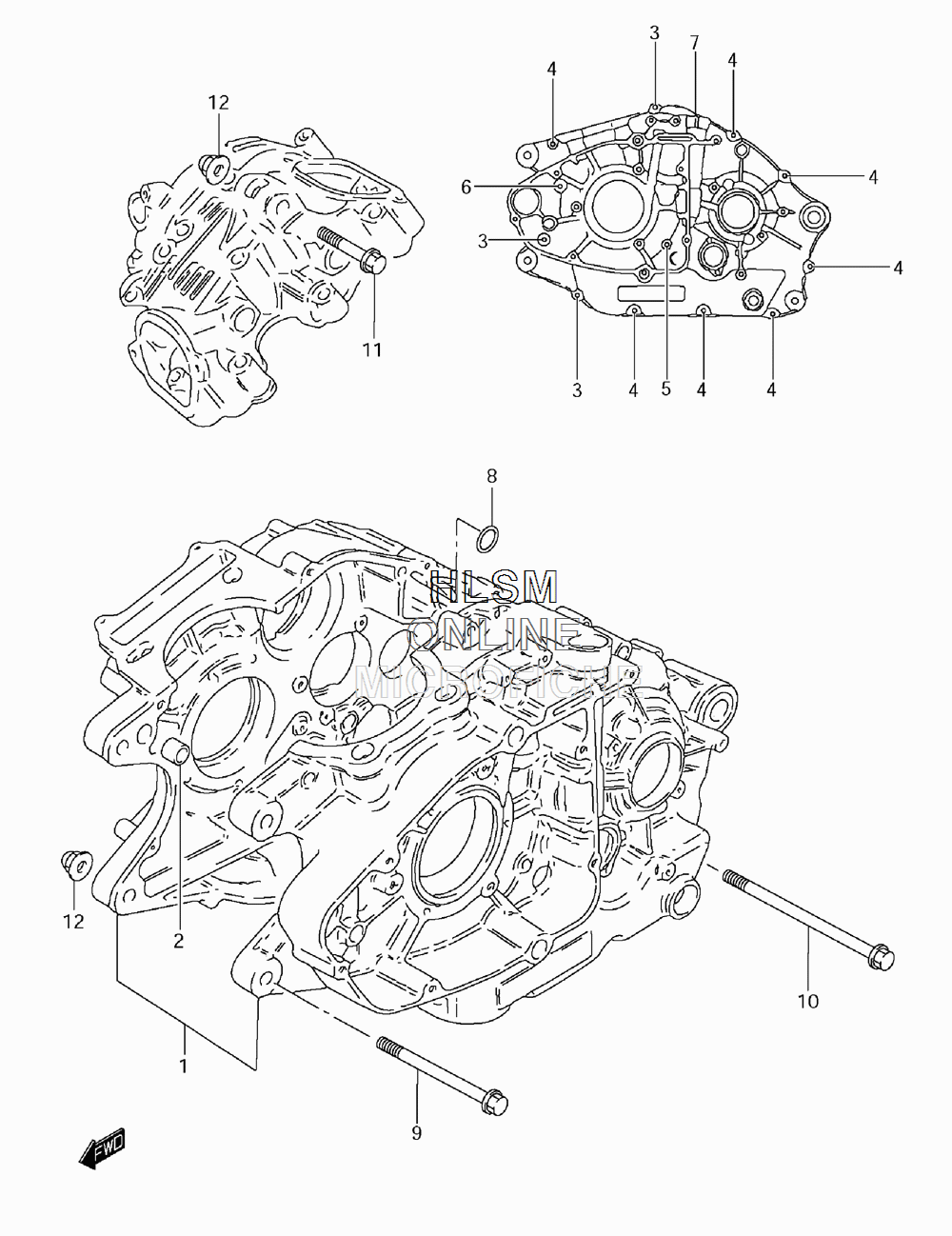

CRANKCASE для Suzuki GZ 250 L0 - 2010 года выпуска
-
№АртикулНазвание
-
111300-13F03 CRANKCASE SETCRANKCASE SET
-
204211-13189 PINPIN
-
301547-06357 BOLTBOLT
-
401547-06457 BOLTBOLT
-
501547-0655B BOLTBOLT
-
601547-0660B BOLTBOLT
-
701547-06707 BOLTBOLT
-
809280-10015 O RING (D:1.9, ID:9.8)O RING (D:1.9, ID:9.8)
-
909103-08037 BOLT (8X67)BOLT (8X67)
-
1009103-08114 BOLT (8X100)BOLT (8X100)
-
1109103-08081 BOLT (8X50)BOLT (8X50)
-
1208319-3108A NUTNUT
