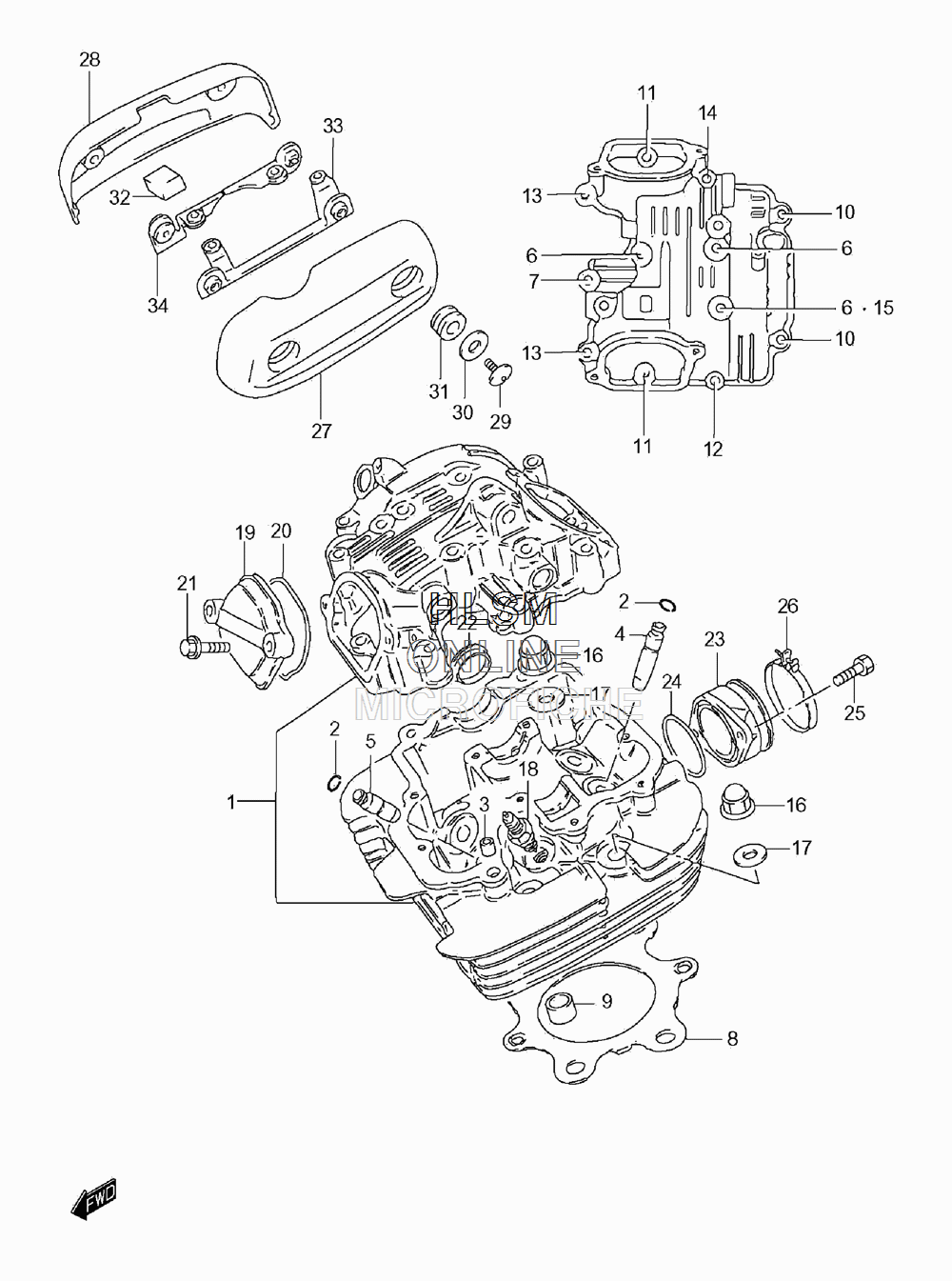

CYLINDER HEAD для Suzuki GZ 250 L0 - 2010 года выпуска
-
№АртикулНазвание
-
111100-25D02 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209381-10004 SNAP RINGSNAP RING
-
309206-08001 PIN (6.2X8X11)PIN (6.2X8X11)
-
411115-38270 GUIDE, VALVE (OS: 0.3)GUIDE, VALVE (OS: 0.3)
-
511115-05270 GUIDE, VALVE (OS: 0.3)GUIDE, VALVE (OS: 0.3)
-
601550-0660B BOLT (GREEN)BOLT (GREEN)
-
701550-0630B BOLT (GREEN)BOLT (GREEN)
-
811141-25D11 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
904211-13189 PINPIN
-
1009103-06148 BOLT (6X120)BOLT (6X120)
-
1101550-0630B BOLT (GREEN)BOLT (GREEN)
-
1201550-0645B BOLT (GREEN)BOLT (GREEN)
-
1301550-0650B BOLT (GREEN)BOLT (GREEN)
-
1401550-0660B BOLT (GREEN)BOLT (GREEN)
-
1509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1609159-10026 NUTNUT
-
1709168-10017 GASKET (10.5X22X2)GASKET (10.5X22X2)
-
1809482-00399 SPARK PLUG (NGK, DR8EA)SPARK PLUG (NGK, DR8EA)
-
1809482-00223 SPARK PLUG (DENSO, X24ESR-U)SPARK PLUG (DENSO, X24ESR-U)
-
1911175-38202 CAP, INSPECTIONCAP, INSPECTION
-
2009280-55003 O RINGO RING
-
2101550-0625B BOLT (GREEN)BOLT (GREEN)
-
2209241-30004 PLUGPLUG
-
2313110-13F00 PIPE, INTAKEPIPE, INTAKE
-
2409280-40010 O RING (D:2.4, ID:39.7)O RING (D:2.4, ID:39.7)
-
2502122-0616B SCREWSCREW
-
2609402-48208 CLAMPCLAMP
-
2711171-13F00 CAP, CYLINDER HEAD COVER LEFT HANDCAP, CYLINDER HEAD COVER LEFT HAND
-
2811172-13F00 CAP, CYLINDER HEAD COVER RIGHT HANDCAP, CYLINDER HEAD COVER RIGHT HAND
-
2911178-12F10 BOLT, HEAD COVER CAPBOLT, HEAD COVER CAP
-
3009160-06134 WASHER, HEAD COVER (6.5X24X1.6)WASHER, HEAD COVER (6.5X24X1.6)
-
3109320-13015 CUSHIONCUSHION
-
3211178-13F00 DAMPER, HEAD CAP RIGHT HANDDAMPER, HEAD CAP RIGHT HAND
-
3311179-13F01 BRACKET, HEAD CAP LEFT HANDBRACKET, HEAD CAP LEFT HAND
-
3411179-13F11 BRACKET, HEAD CAP RIGHT HANDBRACKET, HEAD CAP RIGHT HAND
