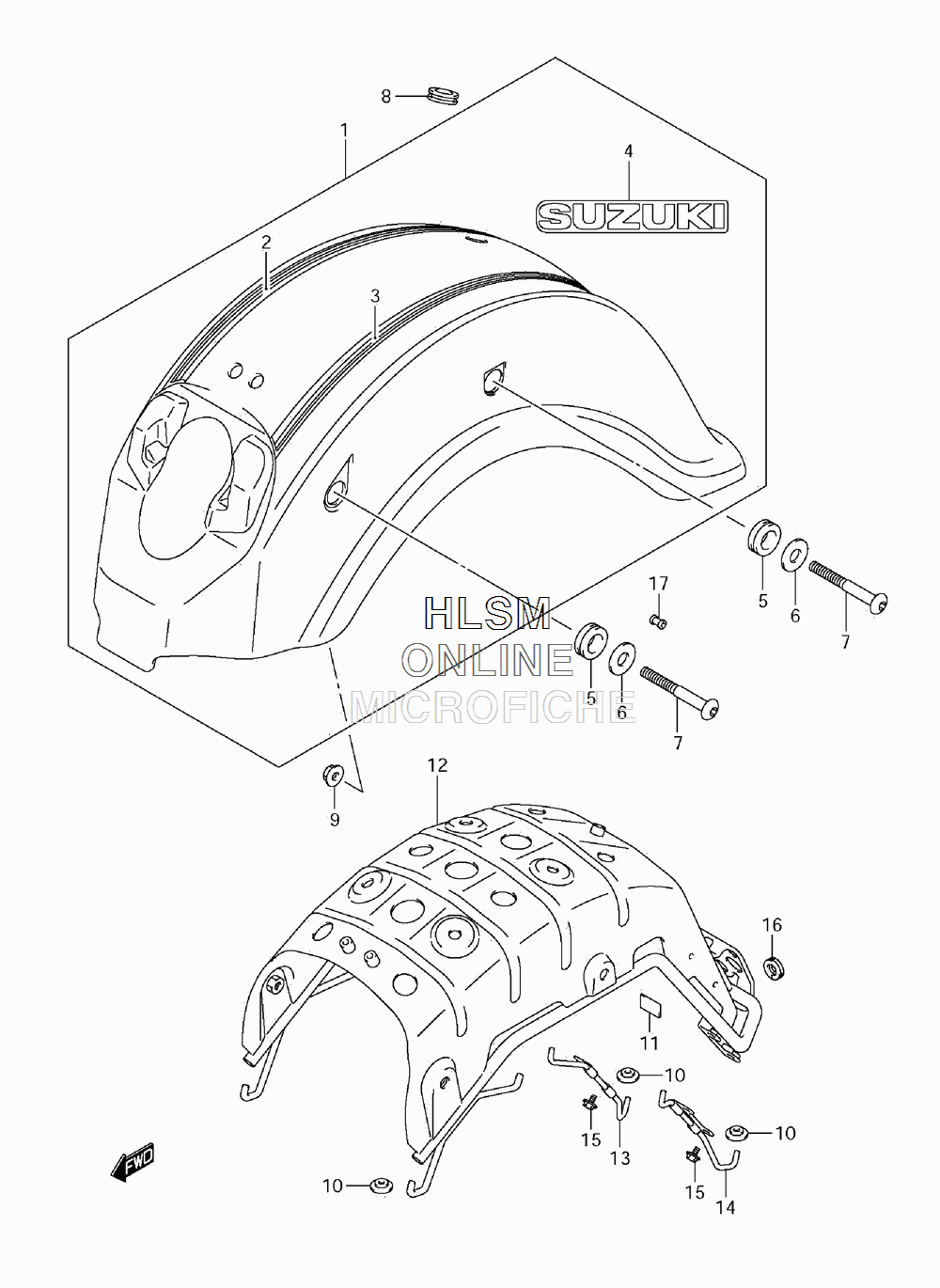

FENDER - REAR для Suzuki VZ800T L2 - 2012 года выпуска
-
№АртикулНазвание
-
163110-43H20-AAB FENDER, REAR (AAB - WHITE/BLUE) (INCL. 2-4)FENDER, REAR (AAB - WHITE/BLUE) (INCL. 2-4)
-
163110-43H20-AAC FENDER, REAR (AAC - RED/SILVER) (INCL. 2-4)FENDER, REAR (AAC - RED/SILVER) (INCL. 2-4)
-
268170-43H00-AAD TAPE SET, RIGHT HAND (MOONLAND/SILVER AAB)TAPE SET, RIGHT HAND (MOONLAND/SILVER AAB)
-
268170-43H00-AAE TAPE SET, RIGHT HAND (BLUE/SILVER FOR AAC)TAPE SET, RIGHT HAND (BLUE/SILVER FOR AAC)
-
368710-43H00-AAD TAPE SET, LEFT HAND (MOONLAND/SILVER AAB)TAPE SET, LEFT HAND (MOONLAND/SILVER AAB)
-
368710-43H00-AAE TAPE SET, LEFT HAND (BLUE/SILVER FOR AAC)TAPE SET, LEFT HAND (BLUE/SILVER FOR AAC)
-
468271-34A00-YES EMBLEM (YES - SILVER)EMBLEM (YES - SILVER)
-
547191-24F00 CUSHIONCUSHION
-
609160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
763161-41F00 BOLTBOLT
-
809320-15008 CUSHIONCUSHION
-
908316-1008B NUTNUT
-
1009320-06026 CUSHIONCUSHION
-
1153145-17C11 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1263130-43H00 PLATE, REAR FENDERPLATE, REAR FENDER
-
1363150-43H00 BRACKET, LOWER RIGHT HANDBRACKET, LOWER RIGHT HAND
-
1463160-43H00 BRACKET, LOWER LEFT HANDBRACKET, LOWER LEFT HAND
-
1501550-0610B BOLTBOLT
-
1609308-10017 GROMMETGROMMET
-
1709250-07004 PLUG (OD:9)PLUG (OD:9)
