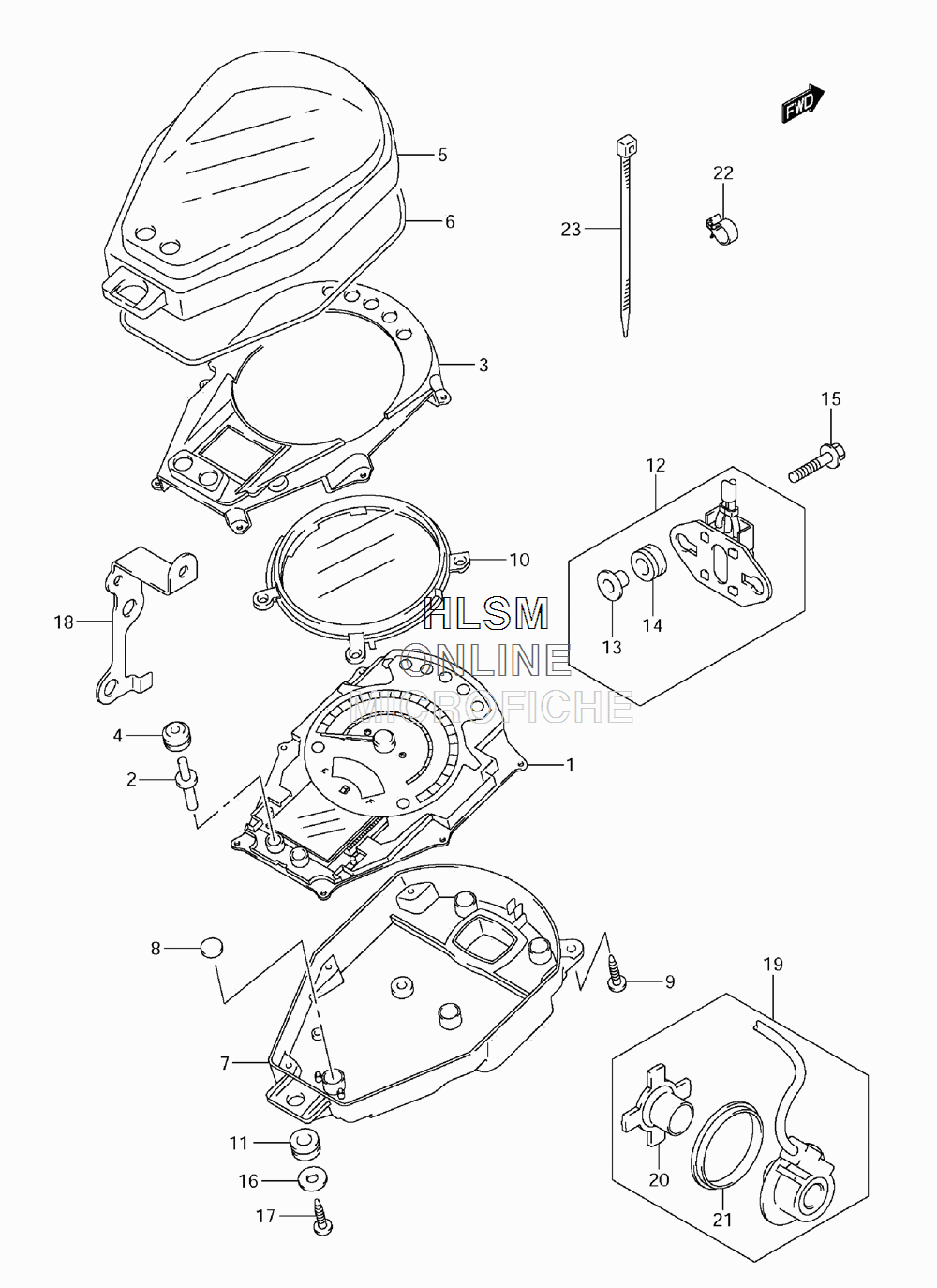

SPEEDOMETER для Suzuki VZ800T L2 - 2012 года выпуска
-
№АртикулНазвание
-
134120-43H50 SPEEDOMETER (MILE/KILO)SPEEDOMETER (MILE/KILO)
-
234124-16G00 KNOBKNOB
-
334125-43H40 PLATE, WINDOWPLATE, WINDOW
-
434126-44G00 BUSHINGBUSHING
-
534151-43H00 CASE ASSYCASE ASSY
-
634153-43H00 PACKING, RUBBERPACKING, RUBBER
-
734156-43H00 CASE, LOWERCASE, LOWER
-
834167-13E00 CUSHION, METERCUSHION, METER
-
934183-29F00 SCREW (3X12)SCREW (3X12)
-
1034193-43H00 RINGRING
-
1134996-43410 CUSHION, METERCUSHION, METER
-
1236510-39F00 RESISTOR ASSY (INCL. 13, 14)RESISTOR ASSY (INCL. 13, 14)
-
1309180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
1409320-10015 CUSHIONCUSHION
-
1509116-06047 BOLT (6X25)BOLT (6X25)
-
1609160-05037 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
1703541-0516A SCREWSCREW
-
1834938-41F50 GUIDE, SPEED SENSORGUIDE, SPEED SENSOR
-
1934990-41F10 SENSOR, SPEEDO (INCL. 20, 21)SENSOR, SPEEDO (INCL. 20, 21)
-
2009286-44001 OIL SEAL (44X55X6)OIL SEAL (44X55X6)
-
2134983-27G00 MAGNETMAGNET
-
2209403-06410 CLAMPCLAMP
-
2309407-14407 CLAMP (L:145)CLAMP (L:145)
