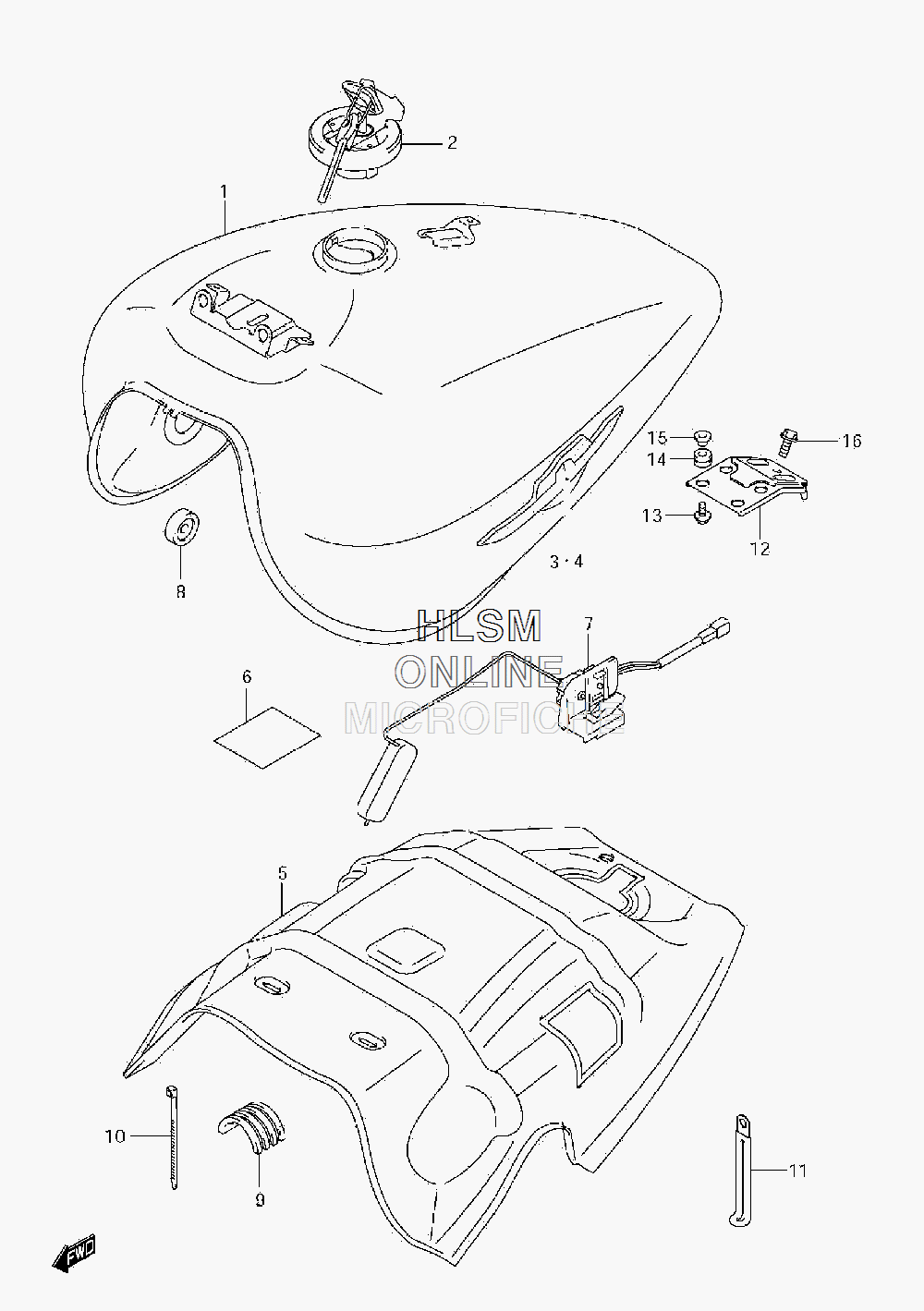

FUEL TANK (CALIF ONLY) для Suzuki VZR1800 L2 BOULEVARD - 2012 года выпуска
-
№АртикулНазвание
-
144100-48GF0-YVB TANK ASSY, FUEL (YVB - BLACK)TANK ASSY, FUEL (YVB - BLACK)
-
244200-39840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
368111-48G01 EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
468121-48G01 EMBLEM, LEFT HANDEMBLEM, LEFT HAND
-
544191-48G10 SHIELD, TANK HEATSHIELD, TANK HEAT
-
644192-48G00 TAPETAPE
-
734810-48G00 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
809329-10007 CUSHIONCUSHION
-
944541-13E10 CUSHION, SIDECUSHION, SIDE
-
1009407-30402 CLAMP (L:300)CLAMP (L:300)
-
1109404-06434 CLAMP (L:80 T:1.0)CLAMP (L:80 T:1.0)
-
1244530-48G10 BRACKET, REARBRACKET, REAR
-
1309116-06192 BOLT (6X20)BOLT (6X20)
-
1409320-08001 CUSHIONCUSHION
-
1509169-06062 WASHERWASHER
-
1601550-0816A BOLTBOLT
