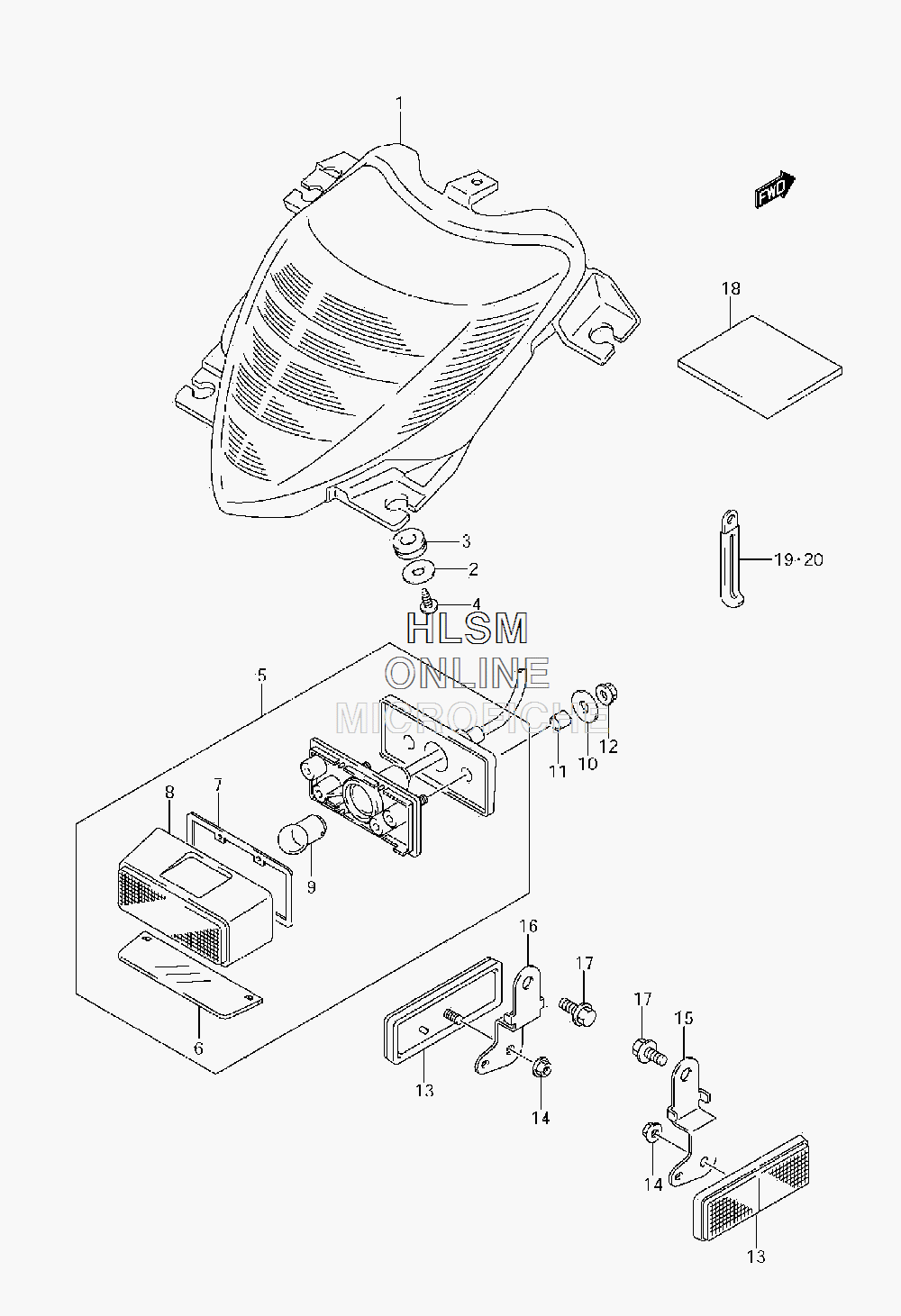

TAILLIGHT ASSY. для Suzuki VZR1800 L2 BOULEVARD - 2012 года выпуска
-
№АртикулНазвание
-
135710-48G50 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
209160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
309320-10054 CUSHIONCUSHION
-
403541-0512A SCREWSCREW
-
535910-41G01 LAMP ASSY, LICENSE (INCL. 6-9)LAMP ASSY, LICENSE (INCL. 6-9)
-
635912-41G01 LENS, LICENSELENS, LICENSE
-
735913-41G00 GASKETGASKET
-
835917-41G00 COVER, LICENSE LAMPCOVER, LICENSE LAMP
-
909471-12140 BULB (12V5W)BULB (12V5W)
-
1009160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1109180-06261 SPACER (6.5X9X8)SPACER (6.5X9X8)
-
1208316-1006A NUTNUT
-
1335970-07F01 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1408316-1005A NUTNUT
-
1535975-48G00 BRACKET, REAR SIDE REAR RIGHT HANDBRACKET, REAR SIDE REAR RIGHT HAND
-
1635976-48G00 BRACKET, REAR SIDE REAR LEFT HANDBRACKET, REAR SIDE REAR LEFT HAND
-
1702162-0612A SCREWSCREW
-
1892213-33G00 CUSHION, REAR COMBCUSHION, REAR COMB
-
1909404-06429 CLAMP (L:45)CLAMP (L:45)
-
2009404-10415 CLAMPCLAMP
