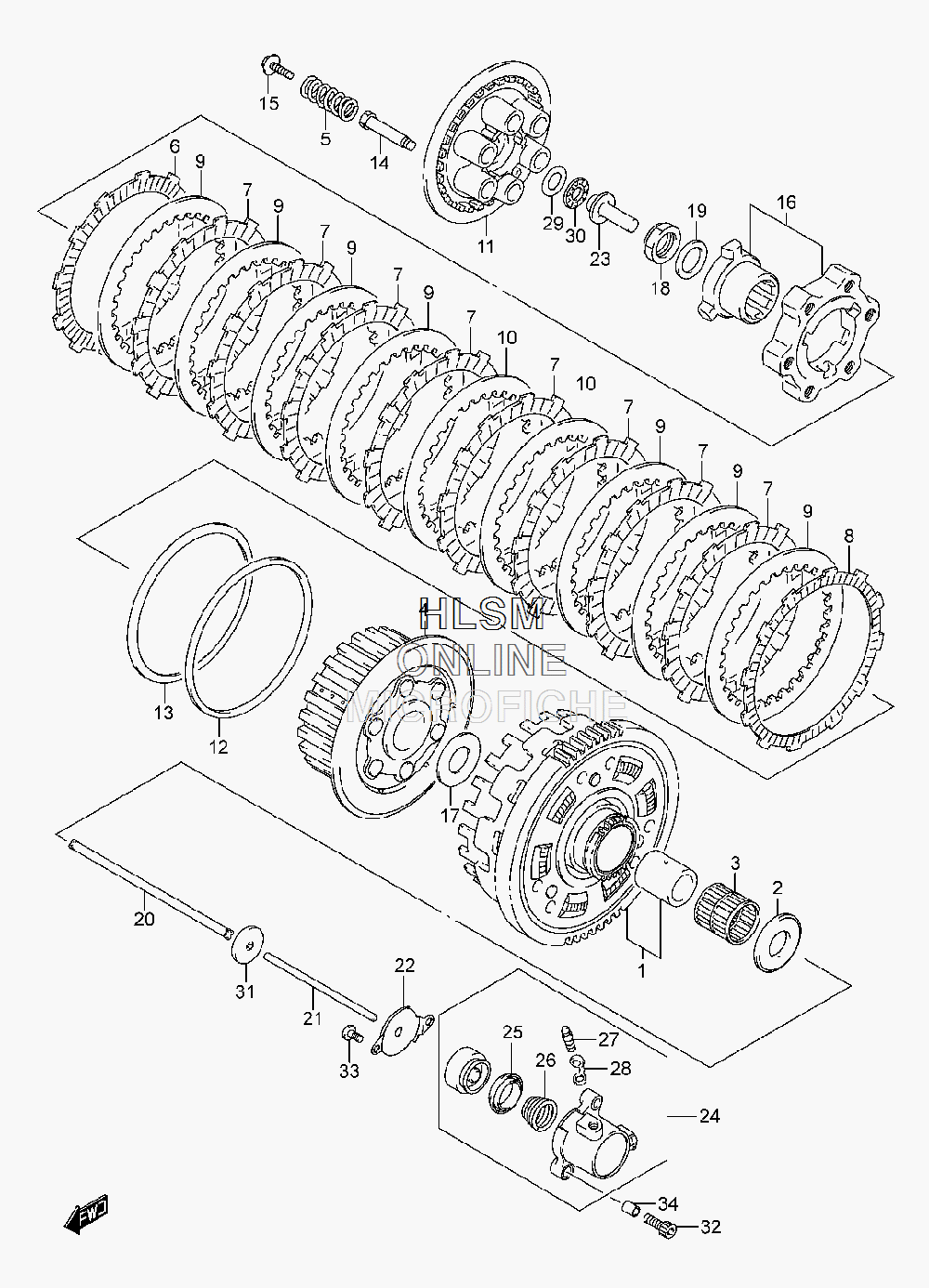

CLUTCH для Suzuki GSX-R1300ZC L3 - 2013 года выпуска
-
№АртикулНазвание
-
121200-24810 GEAR ASSY, PRIMARY DRIVEN (NT:83)GEAR ASSY, PRIMARY DRIVEN (NT:83)
-
209160-25073 WASHER (25X54X2.4)WASHER (25X54X2.4)
-
309263-35013 BEARING (35X40X39.8)BEARING (35X40X39.8)
-
421410-24F00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521413-24F30 SPRING, CLUTCHSPRING, CLUTCH
-
621441-24F10 PLATE, CLUTCH DRIVE NO.2 (T:3.8)PLATE, CLUTCH DRIVE NO.2 (T:3.8)
-
721441-24F30 PLATE, CLUTCH DRIVE NO.1 (T:3.0)PLATE, CLUTCH DRIVE NO.1 (T:3.0)
-
821442-24F00 PLATE, CLUTCH DRIVE NO.3 (T:3.8)PLATE, CLUTCH DRIVE NO.3 (T:3.8)
-
921451-24F00 PLATE, CLUTCH DRIVEN NO.1 (T:2.0)PLATE, CLUTCH DRIVEN NO.1 (T:2.0)
-
1021451-24F10 PLATE, CLUTCH DRIVEN NO.2 (T:2.3)PLATE, CLUTCH DRIVEN NO.2 (T:2.3)
-
1121462-24F00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1221471-24F00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1321472-06G00 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1421481-24F32 BOLT, CLUTCH SPRING SUPPORTBOLT, CLUTCH SPRING SUPPORT
-
1521482-24F30 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
1621610-02F12 CAM SET, CLUTCHCAM SET, CLUTCH
-
1709160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1809159-24010 NUTNUT
-
1909164-24006 WASHERWASHER
-
2023110-24F00 ROD, CLUTCH (L:195.5)ROD, CLUTCH (L:195.5)
-
2123111-26D00 ROD, CLUTCH PUSH (L:132.5)ROD, CLUTCH PUSH (L:132.5)
-
2223117-46E00 COVER, CLUTCH RELEASECOVER, CLUTCH RELEASE
-
2323121-31E00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2423160-15H00 CYLINDER, CLUTCH RELEASECYLINDER, CLUTCH RELEASE
-
2523163-10F00 ...CUP...CUP
-
2623164-10F00 ...SPRING...SPRING
-
2759121-01A00 ...BLEEDER...BLEEDER
-
2859122-01A00 ...CAP, BLEEDER...CAP, BLEEDER
-
2909160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
3009263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
3109285-06015 OIL SEAL (6X34X5.5)OIL SEAL (6X34X5.5)
-
3207130-0625A BOLTBOLT
-
3302112-0610A SCREWSCREW
-
3404211-09129 PINPIN
