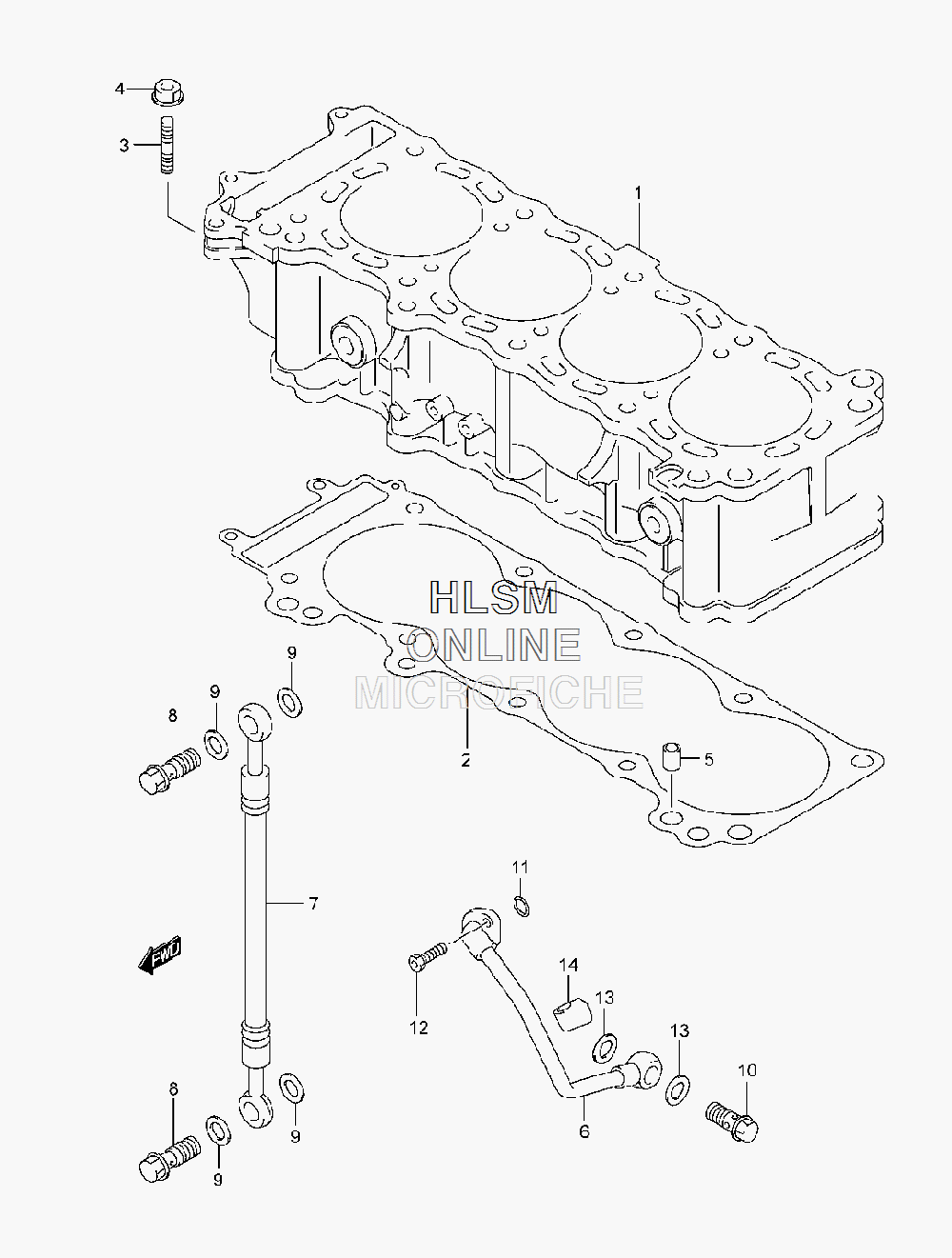

CYLINDER для Suzuki GSX-R1300ZC L3 - 2013 года выпуска
-
№АртикулНазвание
-
111210-15H00-0F0 CYLINDERCYLINDER
-
211241-15H00 GASKETGASKET
-
301421-0625B STUD BOLTSTUD BOLT
-
408316-1006B NUTNUT
-
504211-11169 PINPIN
-
611280-24F00 PIPE, CRANKCASE OILPIPE, CRANKCASE OIL
-
711282-24F00 HOSE, OILHOSE, OIL
-
809360-10062 UNION, BOLTUNION, BOLT
-
909168-10007 GASKET (10.1X16X1)GASKET (10.1X16X1)
-
1009360-14012 UNIONUNION
-
1109280-12012 O RING (D:2.4,ID:11.8)O RING (D:2.4,ID:11.8)
-
1209106-06073 BOLT (6X16)BOLT (6X16)
-
1309168-14015 GASKET (14X20X1.5)GASKET (14X20X1.5)
-
1411283-24F00 CUSHION, CRANKCASE OIL PIPECUSHION, CRANKCASE OIL PIPE
