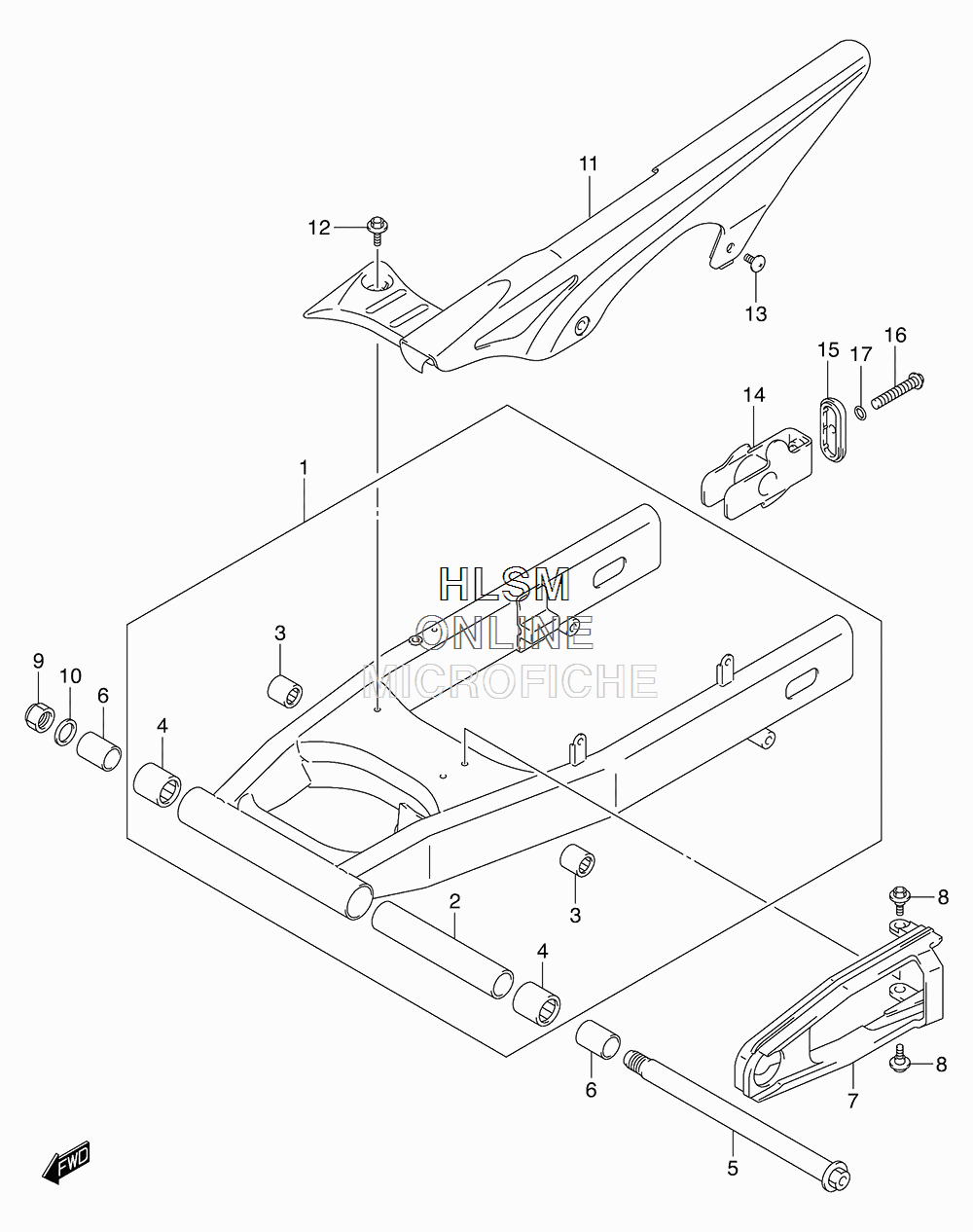

REAR SWINGARM для Suzuki SFV650A ABS L3 - 2013 года выпуска

№

Артикул

Название
1

61000-44H00-YAP SWINGINGARM ASSY, REAR (BLACK)

SWINGINGARM ASSY, REAR (BLACK)

6 514 300 ₽
2

61282-17C00 ...SPACER, REAR SWGARM PIVOT

...SPACER, REAR SWGARM PIVOT

4 070 ₽
3

09263-17037 ...BEARING (17X24X25)

...BEARING (17X24X25)

3 790 ₽
4

09263-25059 ...BEARING (25X33X35)

...BEARING (25X33X35)

6 430 ₽
5

61211-31E00 SHAFT, REAR SWGARM PIVOT

SHAFT, REAR SWGARM PIVOT

18 410 ₽
6

61251-21E00 SPACER, REAR SWGARM PIVOT

SPACER, REAR SWGARM PIVOT

4 460 ₽
7

61273-44H00 BUFFER, CHAIN TOUCH DEFENSE

BUFFER, CHAIN TOUCH DEFENSE

5 370 ₽
8

09111-06072 BOLT (6X17.8)

BOLT (6X17.8)

350 ₽
9

09159-18007 NUT

NUT

2 930 ₽
10

09160-18030 WASHER (18.5X28X2.6)

WASHER (18.5X28X2.6)

420 ₽
11

61310-44H00 CASE, CHAIN

CASE, CHAIN

13 150 ₽
12

09111-06065 BOLT (6X16)

BOLT (6X16)

420 ₽
13

09139-06168 SCREW (6X16)

SCREW (6X16)

440 ₽
14

61410-44H00 ADJUSTER, CHAIN

ADJUSTER, CHAIN

5 710 ₽
15

61421-44H00-13L PLATE, ADJUSTER GUIDE (SILVER)

PLATE, ADJUSTER GUIDE (SILVER)

161 200 ₽
16

09106-08119 BOLT (8X50)

BOLT (8X50)

680 ₽
17

09164-08015 WASHER

WASHER

540 ₽
