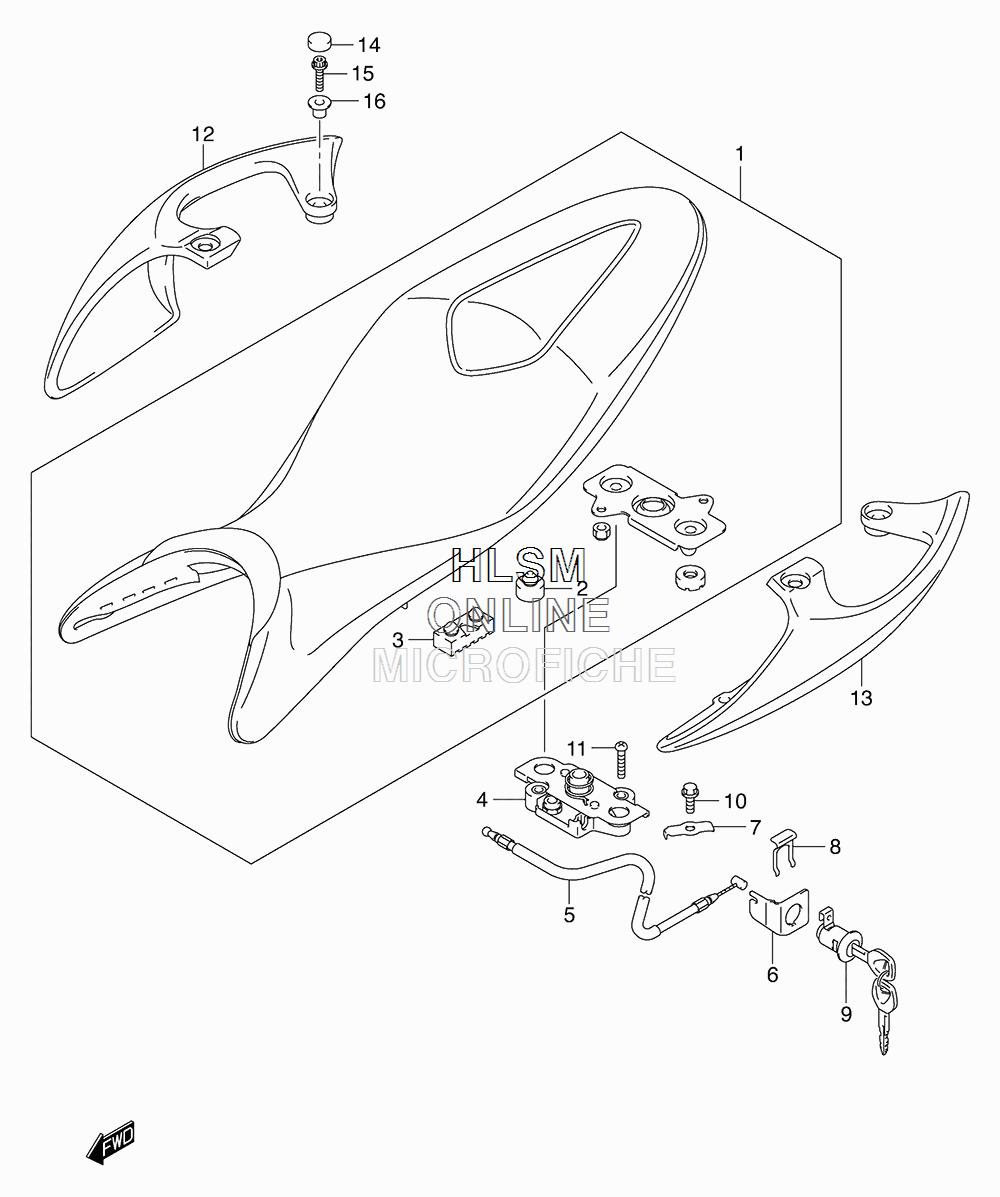

SEAT для Suzuki SFV650A ABS L3 - 2013 года выпуска
-
№АртикулНазвание
-
145100-44H30-JRV SEAT ASSY (BLACK/GRAY/BLACK)SEAT ASSY (BLACK/GRAY/BLACK)
-
209321-10011 ...CUSHION...CUSHION
-
345149-42F00 ...CUSHION...CUSHION
-
445220-15H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
545280-44H01 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
645288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
745288-44H00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
845289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
-
995700-14810 LOCK ASSY, SEATLOCK ASSY, SEAT
-
1001547-0612A BOLTBOLT
-
1102112-0630A SCREWSCREW
-
1246211-44H00-YVB HANDLE, PILLION RIDER RIGHT HAND (BLACK)HANDLE, PILLION RIDER RIGHT HAND (BLACK)
-
1346231-44H10-YVB HANDLE, PILLION RIDER LEFT HAND (BLACK)HANDLE, PILLION RIDER LEFT HAND (BLACK)
-
1446271-14G00 CAP, PILLION RIDER HANDLECAP, PILLION RIDER HANDLE
-
1509106-08151 BOLT (8X25)BOLT (8X25)
-
1609169-08049 WASHERWASHER
