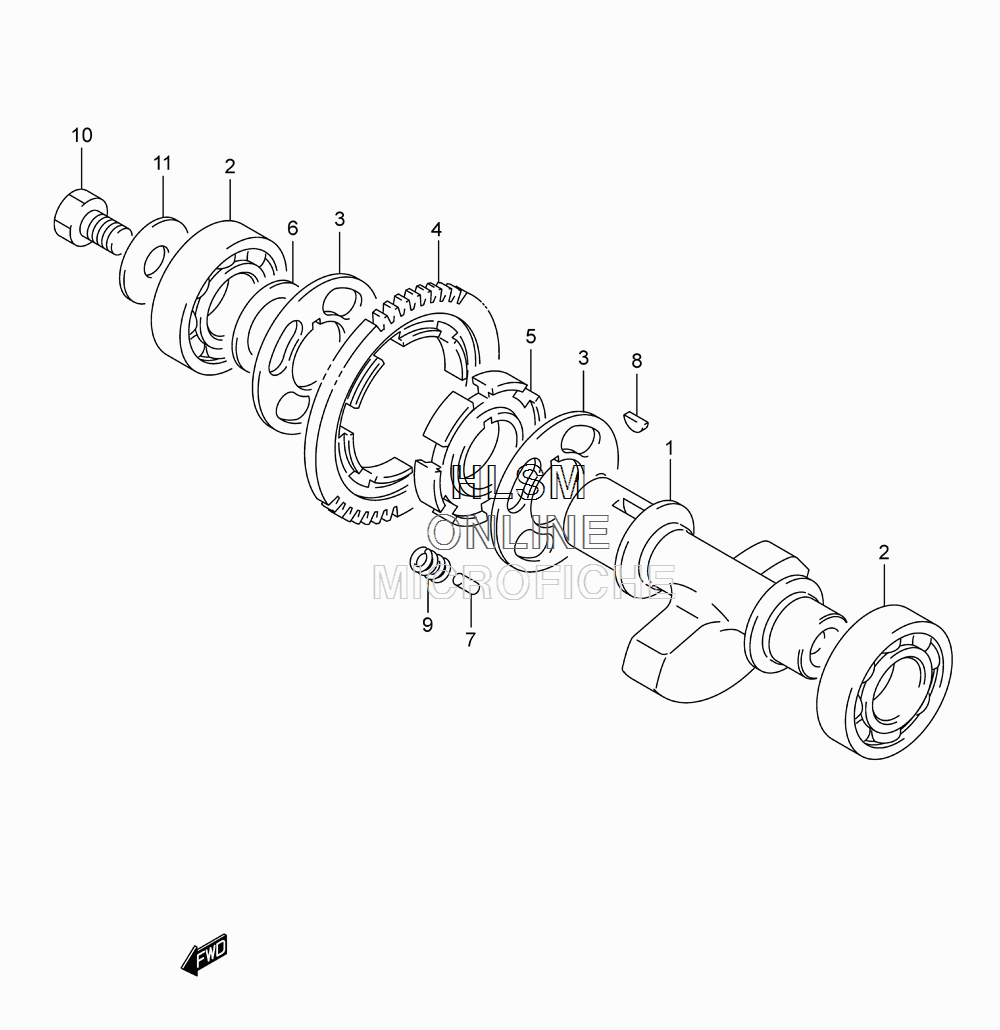

CRANK BALANCER для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
112651-38202 SHAFT, CRANK BALANCERSHAFT, CRANK BALANCER
-
209262-25084 BEARING (25X62X17)BEARING (25X62X17)
-
312663-38200 WASHERWASHER
-
412666-38200 GEAR, CRANK BALANCER DRIVENGEAR, CRANK BALANCER DRIVEN
-
512669-38200 RACE, CRANK BAL DRIVEN INNERRACE, CRANK BAL DRIVEN INNER
-
609181-25186 SHIM (25X36X0.5)SHIM (25X36X0.5)
-
709202-04017 PIN (4.5X9.5)PIN (4.5X9.5)
-
809420-04008 KEYKEY
-
909440-09015 SPRINGSPRING
-
1001500-1216B BOLTBOLT
-
1109160-12076 WASHER (12X40X2.5)WASHER (12X40X2.5)
