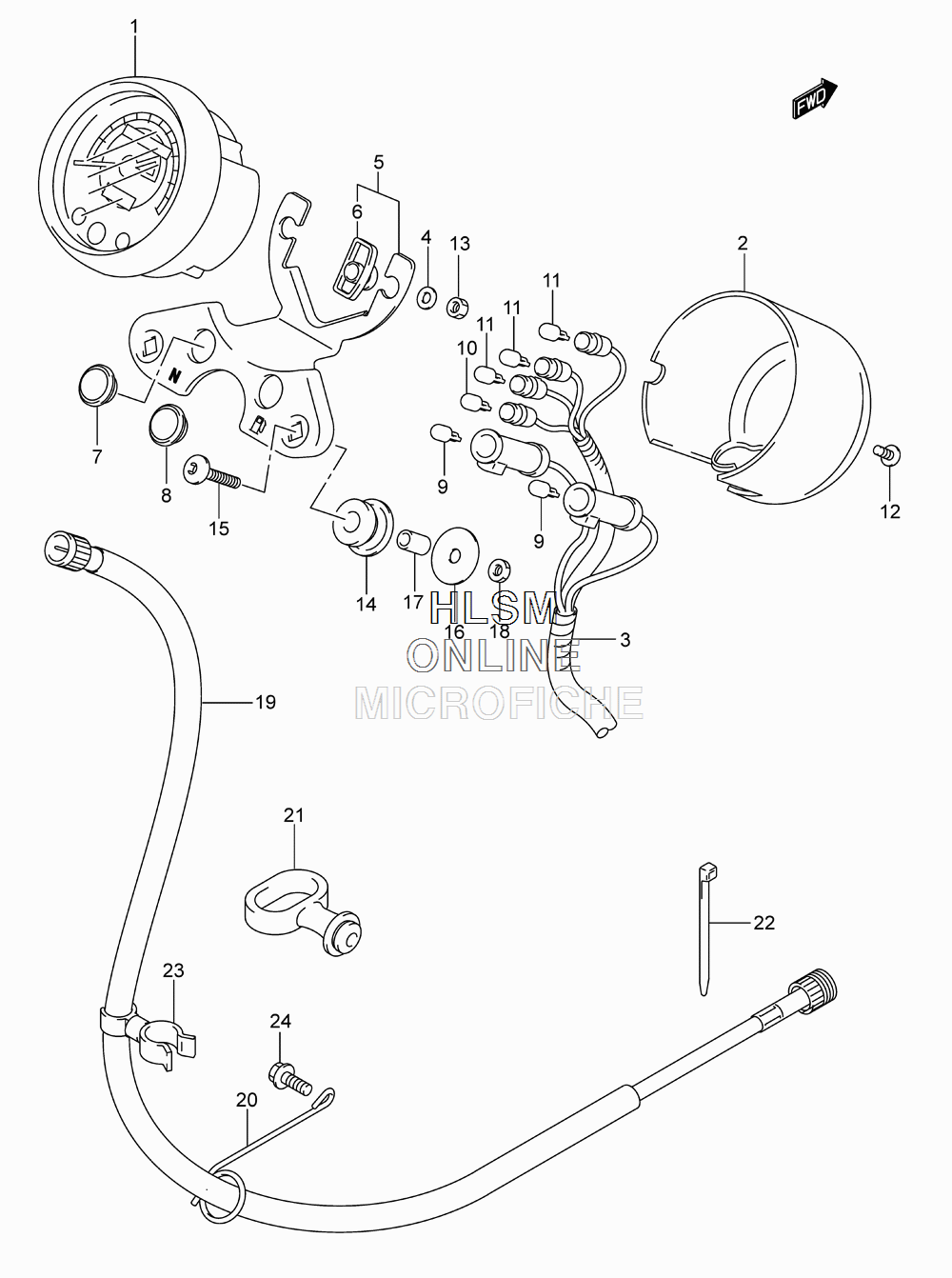

SPEEDOMETER для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
134110-26G50 SPEEDOMETERSPEEDOMETER
-
234111-26G01 COVER, UNDERCOVER, UNDER
-
334170-26G30 CORD ASSYCORD ASSY
-
409160-05013 WASHER (5.2X16X1)WASHER (5.2X16X1)
-
534950-26G30 BRACKET ASSYBRACKET ASSY
-
634191-25D00 ...CUSHION, DAMPER...CUSHION, DAMPER
-
736321-13G00 LENS (GREEN)LENS (GREEN)
-
836331-13GA0 LENS (ORANGE)LENS (ORANGE)
-
909471-12028 BULB (12V,3.4W)BULB (12V,3.4W)
-
1009471-12103 BULB (12V3.4W)BULB (12V3.4W)
-
1109471-12108 BULB (12V1.7W)BULB (12V1.7W)
-
1203541-1412A SCREWSCREW
-
1308310-00057 NUTNUT
-
1434956-31001 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
1509107-06003 BOLT (6X30)BOLT (6X30)
-
1609160-06136 WASHER (6.5X28X1.6)WASHER (6.5X28X1.6)
-
1709180-06294 SPACER (6.5X10X15.7)SPACER (6.5X10X15.7)
-
1808310-0006B NUTNUT
-
1934910-26G01 CABLE ASSY, SPEEDOMETERCABLE ASSY, SPEEDOMETER
-
2034938-37000 GUIDE, METER CABLEGUIDE, METER CABLE
-
2158621-21204 GUIDE, METER CABLEGUIDE, METER CABLE
-
2209407-14407 CLAMP (L:145)CLAMP (L:145)
-
2309408-00056 CLIPCLIP
-
2401550-0612B BOLTBOLT
