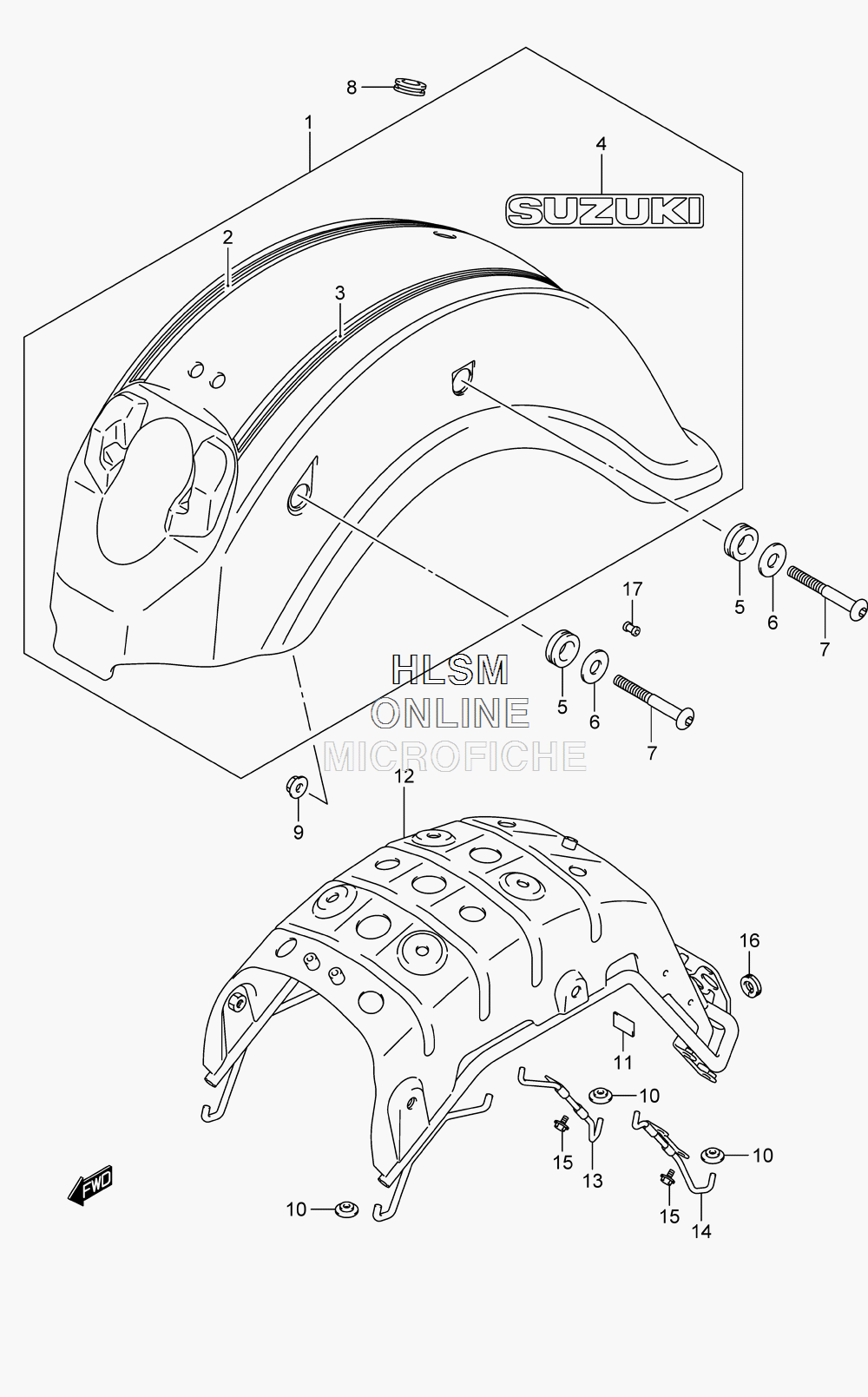

FENDER - REAR (CANADA ONLY) для Suzuki VL800C L3 - 2013 года выпуска
-
№АртикулНазвание
-
163110-43H20-AAC FENDER, REAR (AAC - RED/SILVER)FENDER, REAR (AAC - RED/SILVER)
-
163110-43H20-FGF FENDER, REAR (FGF - WHITE/SILVER)FENDER, REAR (FGF - WHITE/SILVER)
-
268170-43H00-AAE ...TAPE SET, RIGHT (BLUE/SILVER FOR AAC)...TAPE SET, RIGHT (BLUE/SILVER FOR AAC)
-
268170-43H00-AGU ...TAPE SET, RIGHT (BLACK FOR FGF)...TAPE SET, RIGHT (BLACK FOR FGF)
-
368710-43H00-AAE ...TAPE SET, LEFT (BLUE/SILVER FOR AAC)...TAPE SET, LEFT (BLUE/SILVER FOR AAC)
-
368710-43H00-AGU ...TAPE SET, LEFT (BLACK FOR FGF)...TAPE SET, LEFT (BLACK FOR FGF)
-
468271-34A00-YES ...EMBLEM (SILVER FOR AAC)...EMBLEM (SILVER FOR AAC)
-
468271-34A00-YJH ...EMBLEM (GRAY FOR FGF)...EMBLEM (GRAY FOR FGF)
-
547191-24F00 CUSHIONCUSHION
-
609160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
763161-41F00 BOLTBOLT
-
809320-15008 CUSHIONCUSHION
-
908316-1008B NUTNUT
-
1009320-06026 CUSHIONCUSHION
-
1153145-17C11 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1263130-43H00 PLATE, REAR FENDERPLATE, REAR FENDER
-
1363150-43H00 BRACKET, LOWER RIGHTBRACKET, LOWER RIGHT
-
1463160-43H00 BRACKET, LOWER LEFTBRACKET, LOWER LEFT
-
1501550-0610B BOLTBOLT
-
1609308-10017 GROMMETGROMMET
-
1709250-07004 PLUG (OD:9)PLUG (OD:9)
