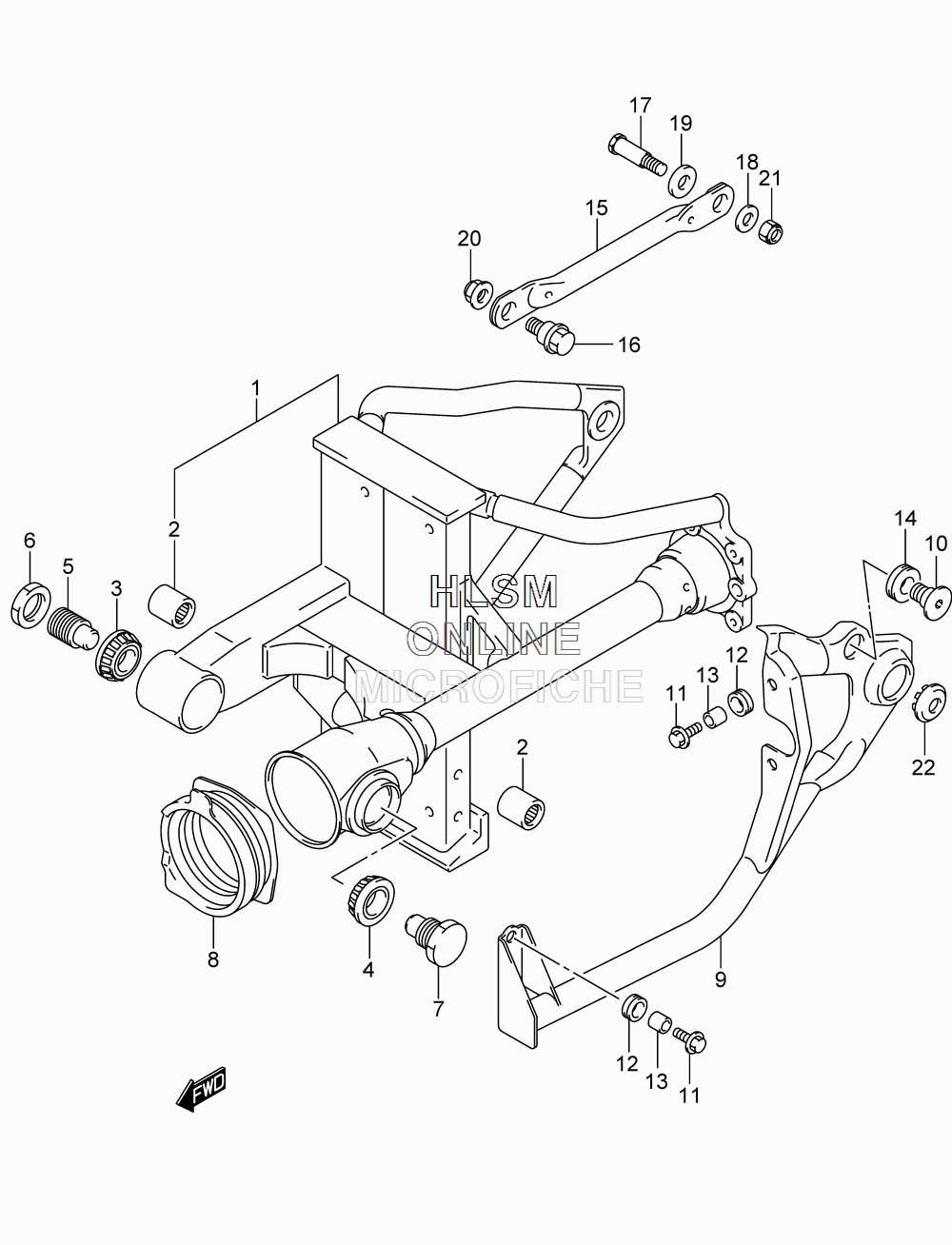

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki VL800C L3 - 2013 года выпуска
-
№АртикулНазвание
-
161101-41890-019 SWINGING ARM SET, REAR (019 - BLACK)SWINGING ARM SET, REAR (019 - BLACK)
-
209263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
309265-17013 BEARING (17X40X13.25)BEARING (17X40X13.25)
-
409265-17012 BEARING (17X40X13.25)BEARING (17X40X13.25)
-
561213-24A00 BOLT, PIVOT RIGHTBOLT, PIVOT RIGHT
-
609140-24007 NUTNUT
-
761213-10F00 BOLT, PIVOT LEFTBOLT, PIVOT LEFT
-
861372-41F00 BOOT, SHAFTBOOT, SHAFT
-
961120-41F10-019 COVER, REAR SWGARM LEFT (019 - BLACK)COVER, REAR SWGARM LEFT (019 - BLACK)
-
1061127-41F20 BOLT, REAR SWGARM COVER, REARBOLT, REAR SWGARM COVER, REAR
-
1109116-06152 BOLT (6X20)BOLT (6X20)
-
1209320-10056 CUSHIONCUSHION
-
1309180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
1409320-22003 CUSHIONCUSHION
-
1564310-41F00 TORQUE LINK, REARTORQUE LINK, REAR
-
1609111-10062 BOLT (10X22)BOLT (10X22)
-
1709111-10057 BOLT (10X41)BOLT (10X41)
-
1809160-10142 WASHER (10X20X2.3)WASHER (10X20X2.3)
-
1909320-12501 CUSHIONCUSHION
-
2008319-3110B NUTNUT
-
2108319-2110A NUTNUT
-
2241899-42F10 CAPCAP
