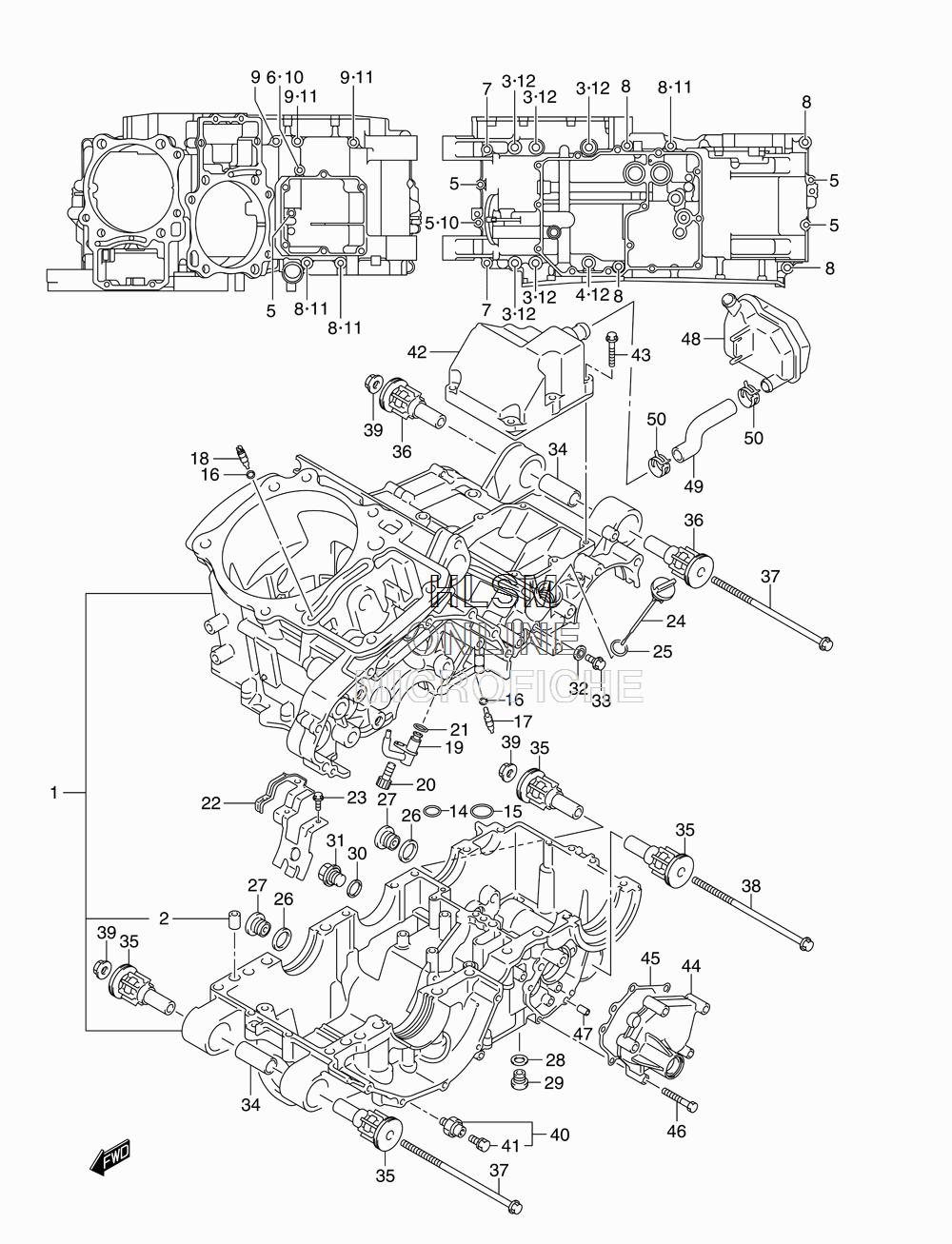

CRANKCASE для Suzuki VZR1800 L3 - 2013 года выпуска
-
№АртикулНазвание
-
111300-48881 CRANKCASE SET (INCL. 2)CRANKCASE SET (INCL. 2)
-
211319-33E50 PIN, CRANKCASEPIN, CRANKCASE
-
309103-10110 BOLT (10X100)BOLT (10X100)
-
409103-10406 BOLT (10X115)BOLT (10X115)
-
501547-0645A BOLTBOLT
-
601547-0670A BOLTBOLT
-
707130-0850A BOLTBOLT
-
807130-0865A BOLTBOLT
-
907130-0885A BOLTBOLT
-
1009168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1109168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1209168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
1312228-48G00-0A0 WASHER, CRANK THRUST (RED)WASHER, CRANK THRUST (RED)
-
1312228-48G00-0B0 WASHER, CRANK THRUST (BLACK)WASHER, CRANK THRUST (BLACK)
-
1312228-48G00-0C0 WASHER, CRANK THRUST (BLUE)WASHER, CRANK THRUST (BLUE)
-
1312228-48G00-0D0 WASHER, CRANK THRUST (GREEN)WASHER, CRANK THRUST (GREEN)
-
1312228-48G00-0E0 WASHER, CRANK THRUST (YELLOW)WASHER, CRANK THRUST (YELLOW)
-
1312228-48G00-0F0 WASHER, CRANK THRUST (WHITE)WASHER, CRANK THRUST (WHITE)
-
1409280-08012 O RING (D:1.9,ID:7.8)O RING (D:1.9,ID:7.8)
-
1509280-12009 O RING (D:1.9,ID:12.6)O RING (D:1.9,ID:12.6)
-
1609280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1709493-80005 JET, OIL GALLERY MISSIONJET, OIL GALLERY MISSION
-
1809493-80005 JET, OIL GALLERY CYLINDERJET, OIL GALLERY CYLINDER
-
1911390-48G00 JET, PISTON COOLINGJET, PISTON COOLING
-
2009106-06075 BOLT (6X12)BOLT (6X12)
-
2109280-05007 O RING (D:1.2,ID:4.7)O RING (D:1.2,ID:4.7)
-
2211521-48G00 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
2301547-0612A BOLTBOLT
-
2411971-48G01 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
2509280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
2609168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2709248-16012 PLUGPLUG
-
2809168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2909248-14012 PLUGPLUG
-
3009168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
3109247-12006 PLUG (12X10)PLUG (12X10)
-
3209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
3301547-0612A BOLTBOLT
-
3411611-48G00 SPACERSPACER
-
3511652-10G00 BUSHBUSH
-
3611652-10G30 BUSHBUSH
-
3709103-10041-A05 BOLT (10X215)BOLT (10X215)
-
3809103-10118 BOLT (10X195)BOLT (10X195)
-
3908319-3110A NUTNUT
-
4037820-33D10 SWITCH ASSY, OIL PRESSURE (INCL. 41)SWITCH ASSY, OIL PRESSURE (INCL. 41)
-
4137822-33D00 BOLTBOLT
-
4211330-48G00 COVER, BREATHERCOVER, BREATHER
-
4301547-0630A BOLTBOLT
-
4411371-48G00 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
4511485-48G00 GASKETGASKET
-
4601547-0645A BOLTBOLT
-
4704211-09149 PIN 9X14PIN 9X14
-
4811332-48G00 TANK, OIL RETURNTANK, OIL RETURN
-
4911333-48G00 HOSE, OIL RETURN TANKHOSE, OIL RETURN TANK
-
5009401-20405 CLIPCLIP
