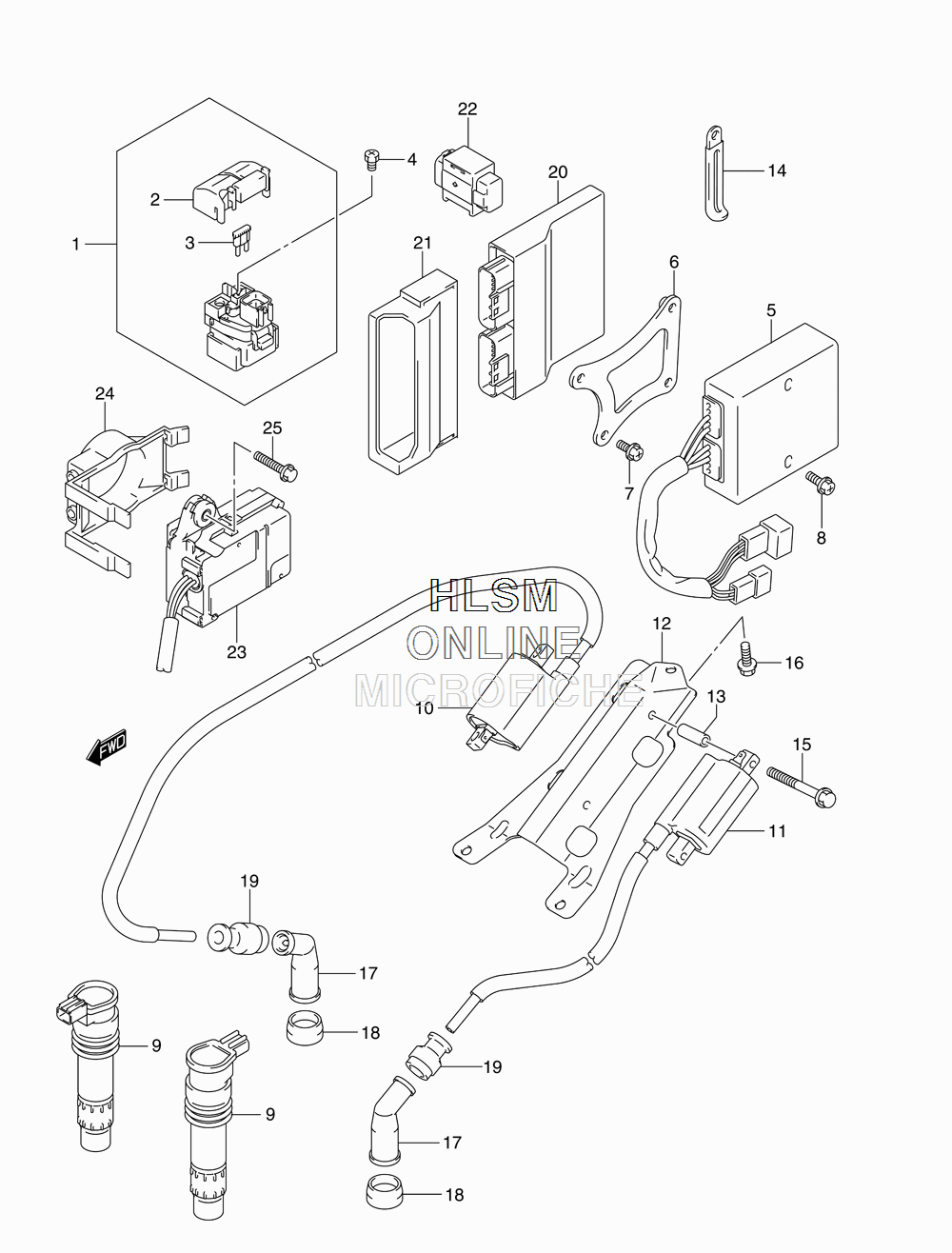

ELECTRICAL для Suzuki VZR1800 L3 - 2013 года выпуска
-
№АртикулНазвание
-
131800-38G10 RELAY ASSY, STARTING MOTOR (INC. 2,3)RELAY ASSY, STARTING MOTOR (INC. 2,3)
-
231861-38G00 COVERCOVER
-
309481-30501 FUSE (30A)FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-10G30 RECTIFIER ASSYRECTIFIER ASSY
-
632830-48G00 BRACKET, RECT FTGBRACKET, RECT FTG
-
702162-0620C BOLTBOLT
-
802162-0616A BOLTBOLT
-
933410-35F10 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1033410-38A20 COIL ASSY, IGNITION FRONTCOIL ASSY, IGNITION FRONT
-
1133410-48G00 COIL ASSY, IGNITION REARCOIL ASSY, IGNITION REAR
-
1233414-48G00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1309180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
1409404-06433 CLAMP (L:80)CLAMP (L:80)
-
1501547-0535A BOLTBOLT
-
1601550-0616A BOLTBOLT
-
1733510-20E00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1833541-47D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1933542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
2032920-48GH0 CONTROL UNIT, FICONTROL UNIT, FI
-
2132980-48G00 HOLDER, FI CONTROL UNITHOLDER, FI CONTROL UNIT
-
2233960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
2333970-48G00 ACTUATOR ASSY, EXHAUST CONTROLACTUATOR ASSY, EXHAUST CONTROL
-
2433973-48G01 COVER, ACTUATORCOVER, ACTUATOR
-
2501560-0625A BOLTBOLT
