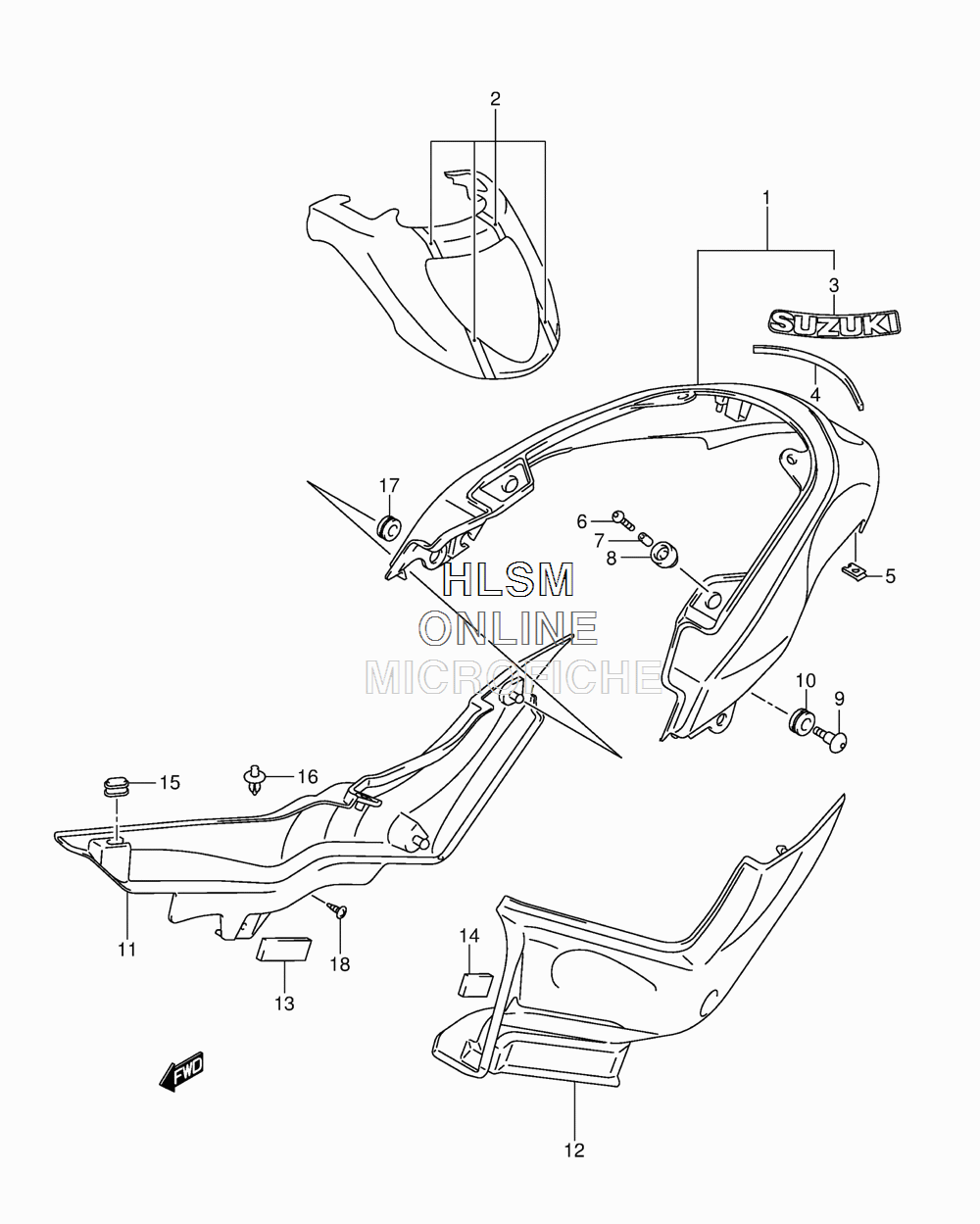

FENDER - REAR (CANADA) для Suzuki VZR1800Z L4 BOULEVARD M109R LTD - 2014 года выпуска
-
№АртикулНазвание
-
163110-48G50-GDV FENDER, REAR (GRAY/SILVER)FENDER, REAR (GRAY/SILVER)
-
268170-48G50-AS1 TAPE SET,REAR FENDERTAPE SET,REAR FENDER
-
368161-44GA0-AS1 EMBLEM, SUZUKI (SILVER)EMBLEM, SUZUKI (SILVER)
-
463117-39G00 CUSHION, LAMPCUSHION, LAMP
-
594484-24F00 NUT, COWLNUT, COWL
-
609139-06139 SCREW (6X16)SCREW (6X16)
-
709180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
809320-10045 CUSHIONCUSHION
-
909139-06190 BOLT (6X20)BOLT (6X20)
-
1009320-09016 CUSHIONCUSHION
-
1163171-48G51-YMD COVER, FENDER RIGHT HAND (SILVER)COVER, FENDER RIGHT HAND (SILVER)
-
1263181-48G51-YMD COVER, FENDER LEFT HAND (SILVER)COVER, FENDER LEFT HAND (SILVER)
-
1315439-70G10 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
-
1447161-19C00 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
1544276-29G00 CUSHION, COVERCUSHION, COVER
-
1609409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1709320-08028 CUSHIONCUSHION
-
1803541-0516A SCREWSCREW
