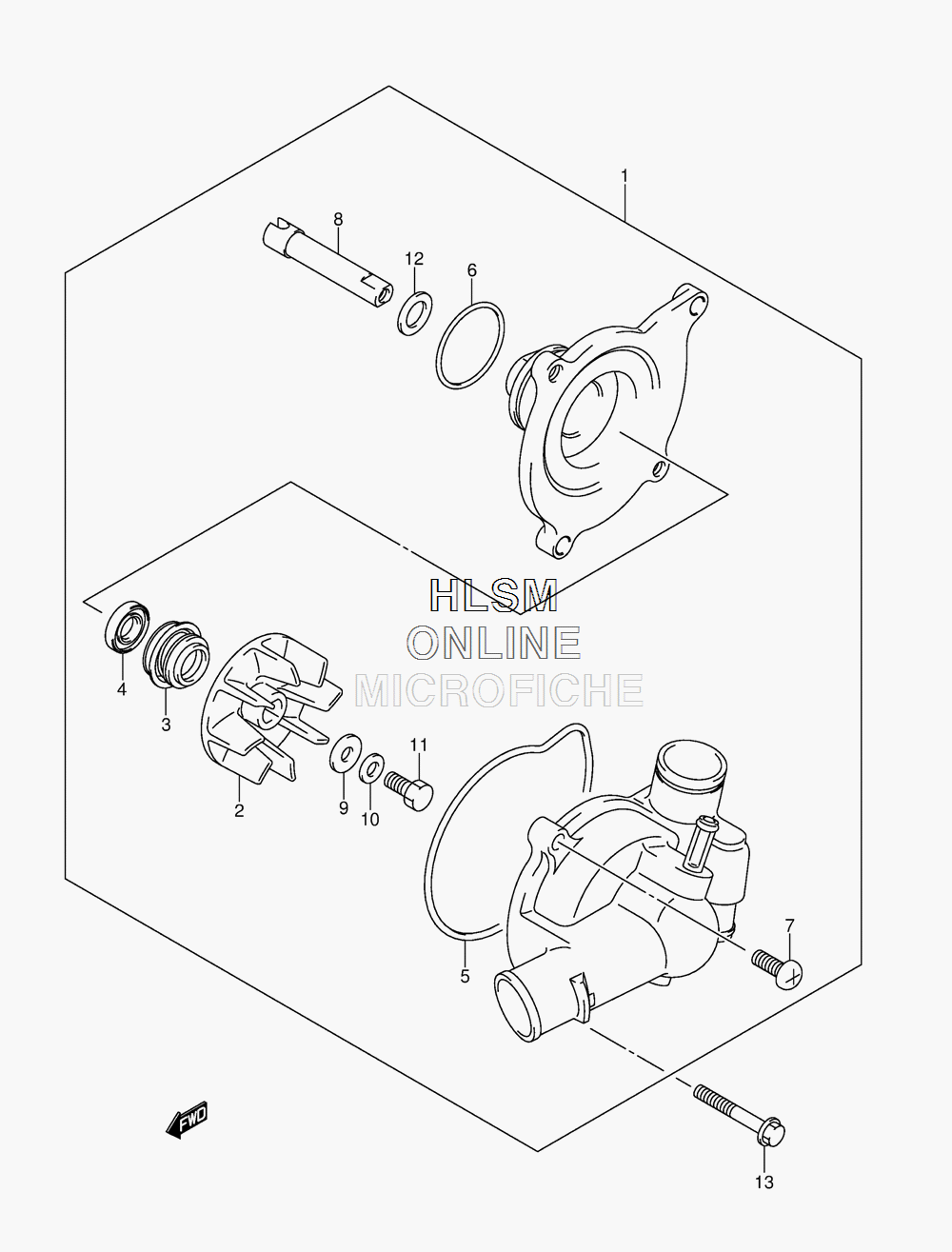

WATER PUMP для Suzuki VZR1800Z L4 BOULEVARD M109R LTD - 2014 года выпуска
-
№АртикулНазвание
-
117400-48G00 PUMP ASSY, WATERPUMP ASSY, WATER
-
217491-17E01 IMPELLERIMPELLER
-
317470-02F10 SEALSEAL
-
409283-10004 OIL SEAL (10X21X5)OIL SEAL (10X21X5)
-
517418-33400 O RINGO RING
-
617435-33400 O RINGO RING
-
702112-0616B SCREWSCREW
-
817511-48G00 SHAFTSHAFT
-
909168-06025 GASKET (6X15X2.2)GASKET (6X15X2.2)
-
1009164-06006 WASHERWASHER
-
1109100-06099 BOLT (6X13)BOLT (6X13)
-
1209181-10167 SHIM (10X18X1)SHIM (10X18X1)
-
1301547-0635A BOLTBOLT
