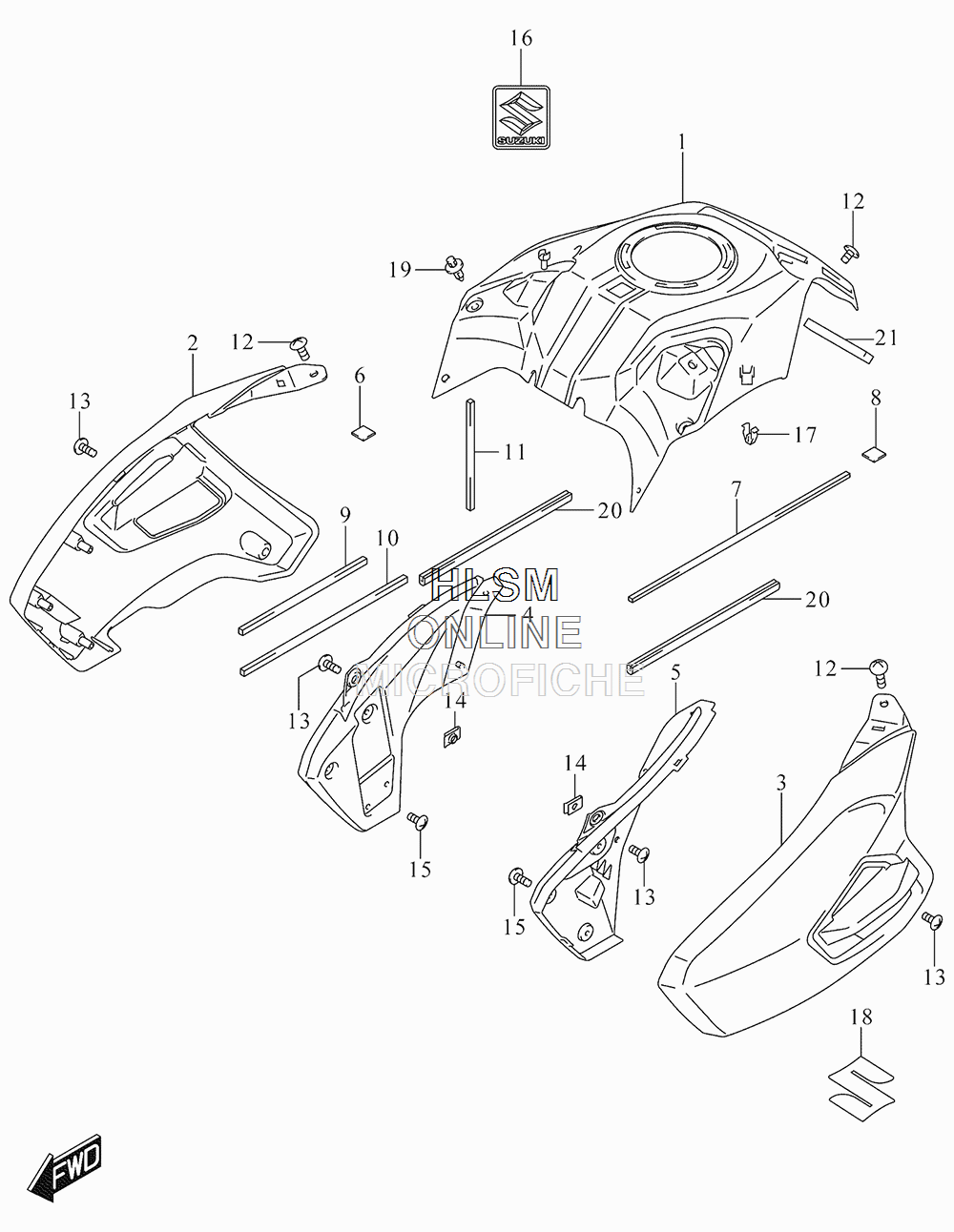

FUEL TANK COVER для Suzuki DL1000A L5 V-STROM 1000 ADVENTURE W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
144191-31J00-YKV COVER, FUEL TANK CENTER (BLACK)COVER, FUEL TANK CENTER (BLACK)
-
244171-31J00-YKV COVER, FUEL TANK SIDE RIGHT HAND (BLACK)COVER, FUEL TANK SIDE RIGHT HAND (BLACK)
-
344181-31J00-YKV COVER, FUEL TANK SIDE LEFT HAND (BLACK)COVER, FUEL TANK SIDE LEFT HAND (BLACK)
-
444271-31J00 COVER, FUEL TANK FRONT RIGHT HANDCOVER, FUEL TANK FRONT RIGHT HAND
-
544281-31J00 COVER, FUEL TANK FRONT LEFT HANDCOVER, FUEL TANK FRONT LEFT HAND
-
644612-13600 CUSHION, TANK COVER SIDE NO.4CUSHION, TANK COVER SIDE NO.4
-
744277-01H00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
894642-10GA0 CUSHION, FUEL TANK COVER NO.2CUSHION, FUEL TANK COVER NO.2
-
944176-31J00 CUSHION, TANK COVER SIDE NO.1CUSHION, TANK COVER SIDE NO.1
-
1044177-31J00 CUSHION, TANK COVER SIDE NO.2CUSHION, TANK COVER SIDE NO.2
-
1144178-31J00 CUSHION, TANK COVER SIDE NO.3CUSHION, TANK COVER SIDE NO.3
-
1209139-06178 BOLT (6X8)BOLT (6X8)
-
1309139-05074 BOLT (5X13)BOLT (5X13)
-
1409148-05052 NUTNUT
-
1503241-0516B SCREWSCREW
-
1668281-47HA0 EMBLEM, ''S''EMBLEM, ''S''
-
1709409-08326 CLIPCLIP
-
1868111-47HA0 EMBLEM, ''S''EMBLEM, ''S''
-
1909409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
2044552-24B00 MOLDING, FUEL TANKMOLDING, FUEL TANK
-
2145289-05H00 CUSHIONCUSHION
