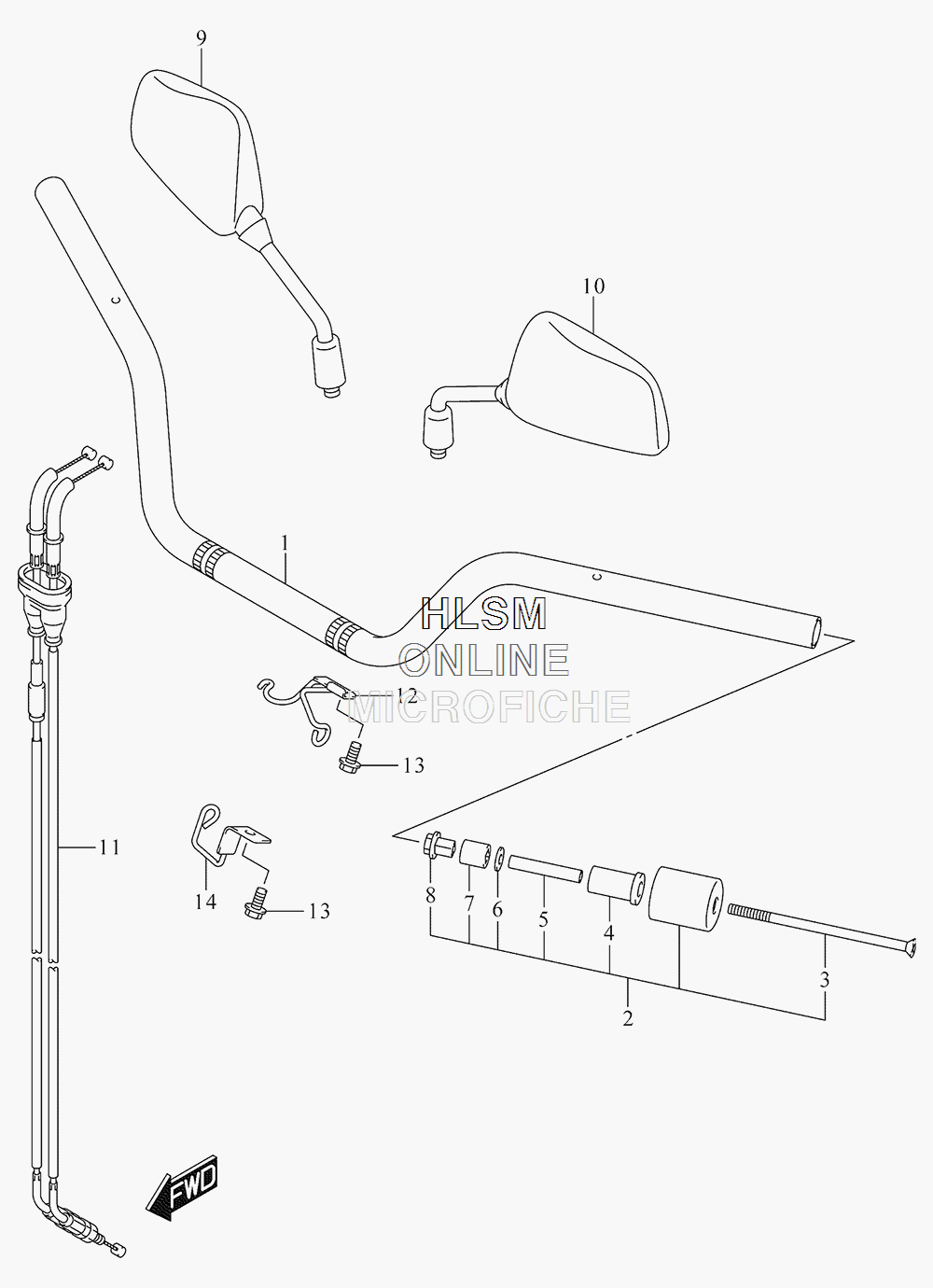

HANDLEBAR для Suzuki DL1000A L5 V-STROM 1000 ADVENTURE W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
156111-31J00-YMC HANDLEBAR (SILVER)HANDLEBAR (SILVER)
-
256200-32840 BALANCER SET, HANDLEB (2)BALANCER SET, HANDLEB (2)
-
309127-06018 ...SCREW (6X110)...SCREW (6X110)
-
456272-06G00 ...EXPANDER, OUTER...EXPANDER, OUTER
-
556276-17D00 ...SPACER...SPACER
-
609160-06130 ...WASHER (6...5X16X1...6)...WASHER (6...5X16X1...6)
-
756272-10G00 ...EXPANDER, INNER...EXPANDER, INNER
-
856273-10G10 ...NUT...NUT
-
956500-04F30 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
1056600-04F30 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1158300-31J00 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1258620-31J00 GUIDE, CABLEGUIDE, CABLE
-
1301547-0612A BOLTBOLT
-
1458620-31J10 GUIDE, CABLEGUIDE, CABLE
