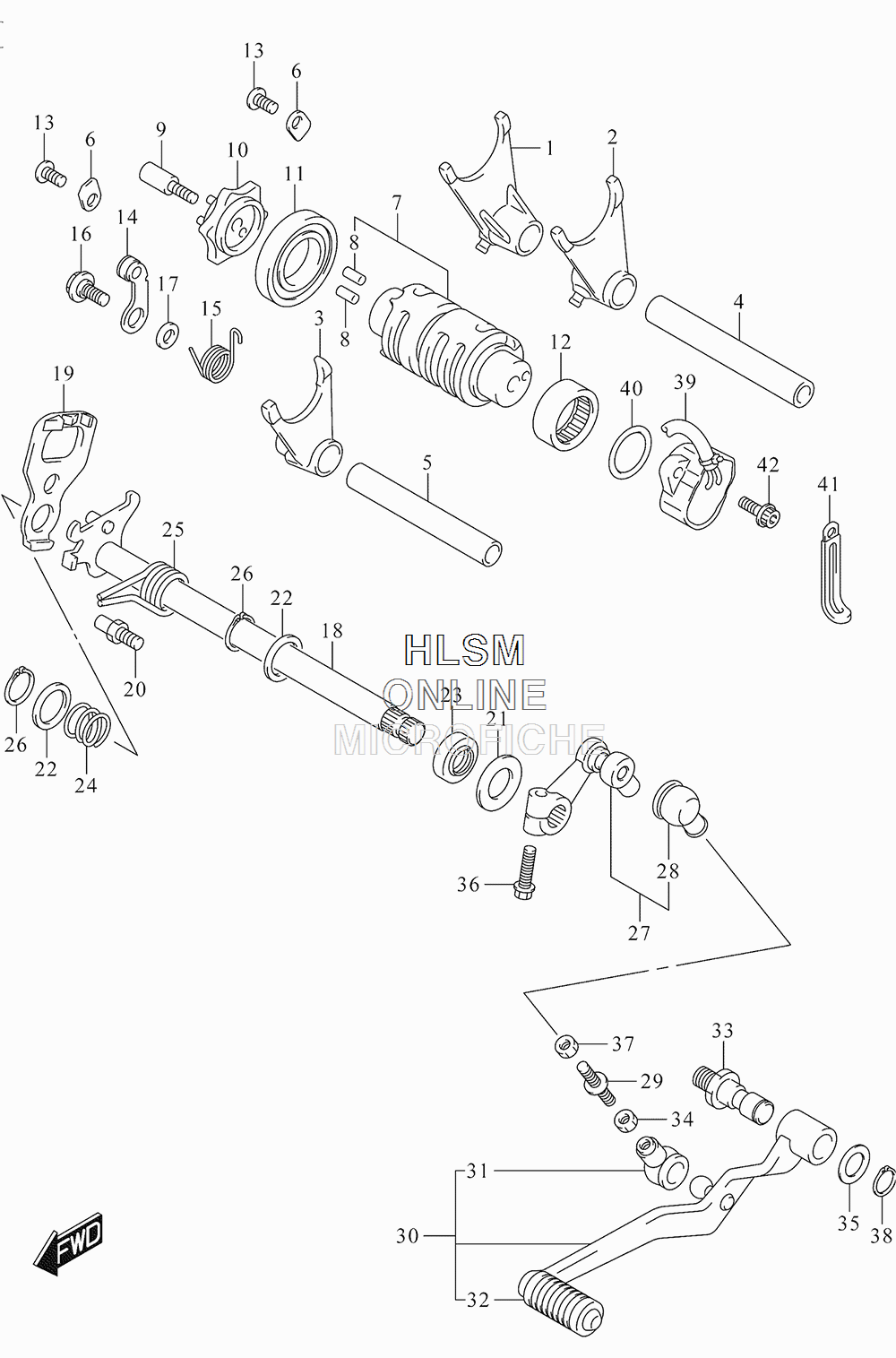

GEAR SHIFTING для Suzuki DL650XA L5 V-STROM 650X EXP W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
125211-42E20 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-42E20 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-42E20 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-26D01 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
525411-44B00 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
624741-21A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
725310-19F00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
804221-04089 ...PIN...PIN
-
925312-42F01 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1025381-19F20 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1109262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1209263-25018 BEARING (25X32X12)BEARING (25X32X12)
-
1302112-0612A SCREWSCREW
-
1425350-35F00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
1525355-35F01 SPRINGSPRING
-
1609111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
1708211-06141 WASHERWASHER
-
1825510-19F10 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1925512-06G10 PLATE, GEAR SHIFT CAM DRIVEPLATE, GEAR SHIFT CAM DRIVE
-
2025671-01011 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2109160-14016 WASHER (14X29X0.8)WASHER (14X29X0.8)
-
2209181-14167 SHIM (14X22X1)SHIM (14X22X1)
-
2309283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2409440-17009 SPRINGSPRING
-
2509444-20001 SPRINGSPRING
-
2608331-3114A CIRCLIPCIRCLIP
-
2725520-27G00 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2825526-47000 ...COVER, DUST...COVER, DUST
-
2925525-27G00 ROD, GEAR SHIFTROD, GEAR SHIFT
-
3025600-11J00 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3125526-47000 .COVER, DUST.COVER, DUST
-
3225652-20C00 .RUBBER, GEAR SHIFT PEDAL.RUBBER, GEAR SHIFT PEDAL
-
3325617-03F10 SHAFT, GEAR SHIFT LEVERSHAFT, GEAR SHIFT LEVER
-
3409140-06025 NUTNUT
-
3509160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3601547-0620A BOLTBOLT
-
3708310-00067 NUTNUT
-
3808331-3112A CIRCLIPCIRCLIP
-
3937730-44H01 SENSOR ASSY, GEAR POSITIONSENSOR ASSY, GEAR POSITION
-
4009280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
4109404-08419 CLAMP (L:80)CLAMP (L:80)
-
4209106-05023 BOLT (5X16)BOLT (5X16)
