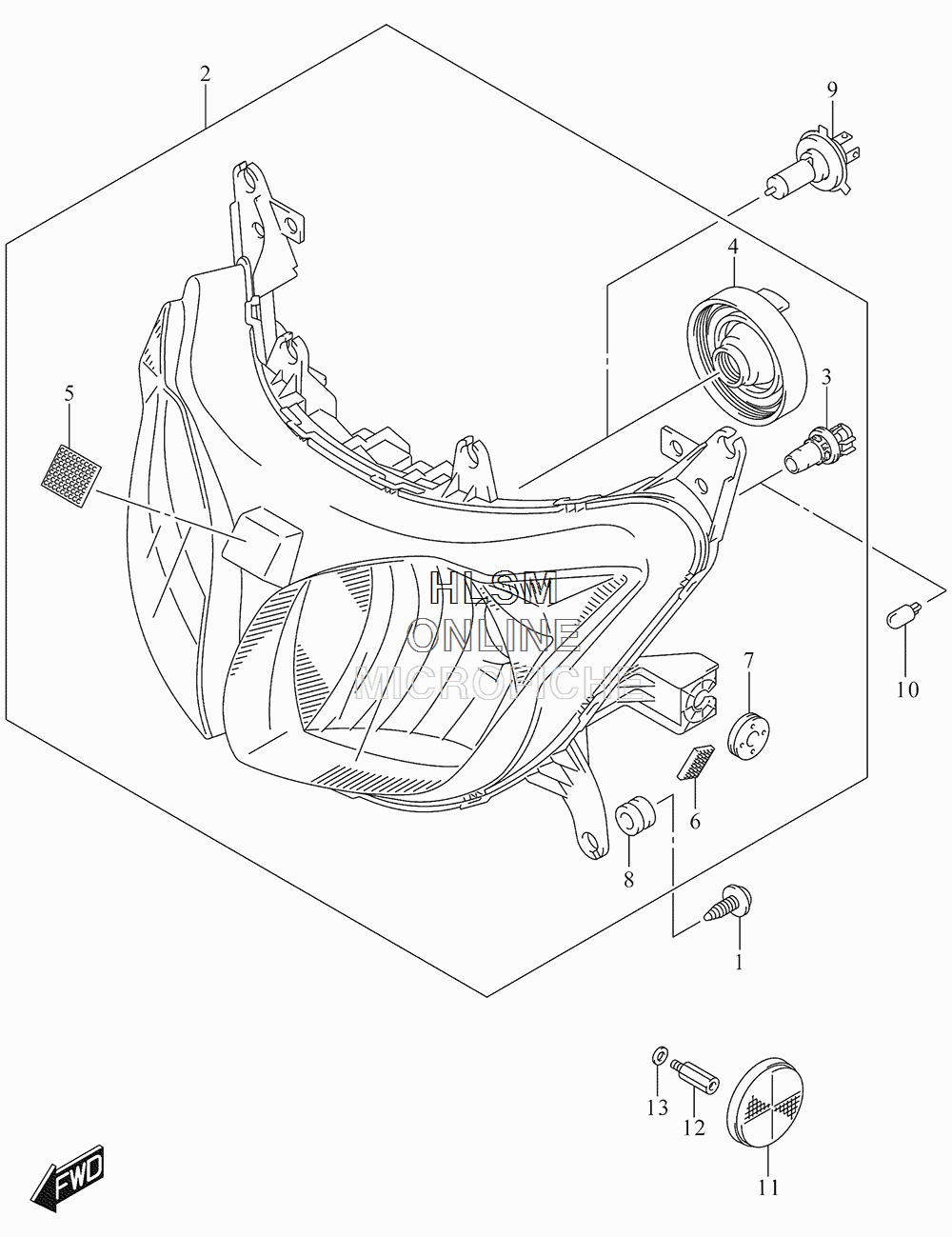

HEADLAMP для Suzuki DL650XA L5 V-STROM 650X EXP W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
109136-05062 SCREW (5X15)SCREW (5X15)
-
235100-11J00-999 HEADLAMP ASSYHEADLAMP ASSY
-
335118-68K00 ...SOCKET, POSITION LAMP...SOCKET, POSITION LAMP
-
435179-58J00 ...COVER, SOCKET...COVER, SOCKET
-
544572-02F01 ...FASTENER...FASTENER
-
644572-37H00 ...FASTENER, COWLING...FASTENER, COWLING
-
709320-08028 ...CUSHION...CUSHION
-
809320-09039 ...CUSHION...CUSHION
-
909471-12182 BULB (12V,60/55W)BULB (12V,60/55W)
-
1009471-12216 BULB (12V5W)BULB (12V5W)
-
1135950-14A11 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
1209119-05023 BOLT (5X10)BOLT (5X10)
-
1308322-0105A WASHERWASHER
