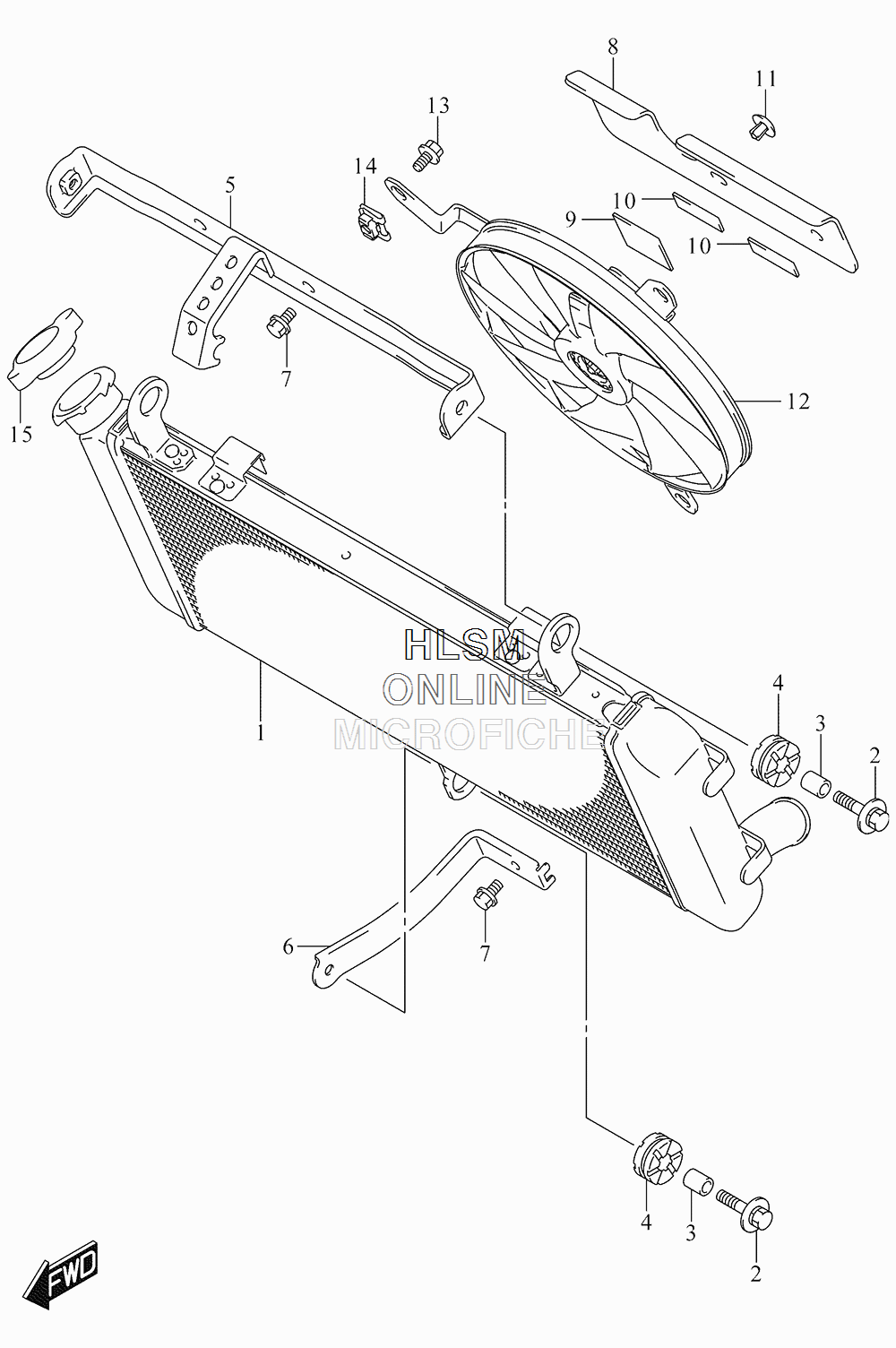

RADIATOR для Suzuki GSX-S750A L5 ABS - 2015 года выпуска
-
№АртикулНазвание
-
117710-08J00 RADIATOR ASSY, WATERRADIATOR ASSY, WATER
-
209118-06122 BOLT (6X25)BOLT (6X25)
-
309180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
409320-10051 CUSHIONCUSHION
-
517740-08J10 BRACKET, RADIATOR UPPERBRACKET, RADIATOR UPPER
-
617750-08J00 BRACKET, RADIATOR LOWERBRACKET, RADIATOR LOWER
-
701550-0612A BOLTBOLT
-
817771-08J00 SHIELD, HEATSHIELD, HEAT
-
944894-24A00 CUSHION, HEAT SHIELDCUSHION, HEAT SHIELD
-
1094476-38C00 CUSHION, HEAT SHIELDCUSHION, HEAT SHIELD
-
1109409-06322-5PK CLIP (BLACK)CLIP (BLACK)
-
1217800-08J00 FAN ASSY, RADIATORFAN ASSY, RADIATOR
-
1317711-08J00 BOLTBOLT
-
1417712-40F00 NUTNUT
-
1517730-08J00 CAP, RADIATORCAP, RADIATOR
