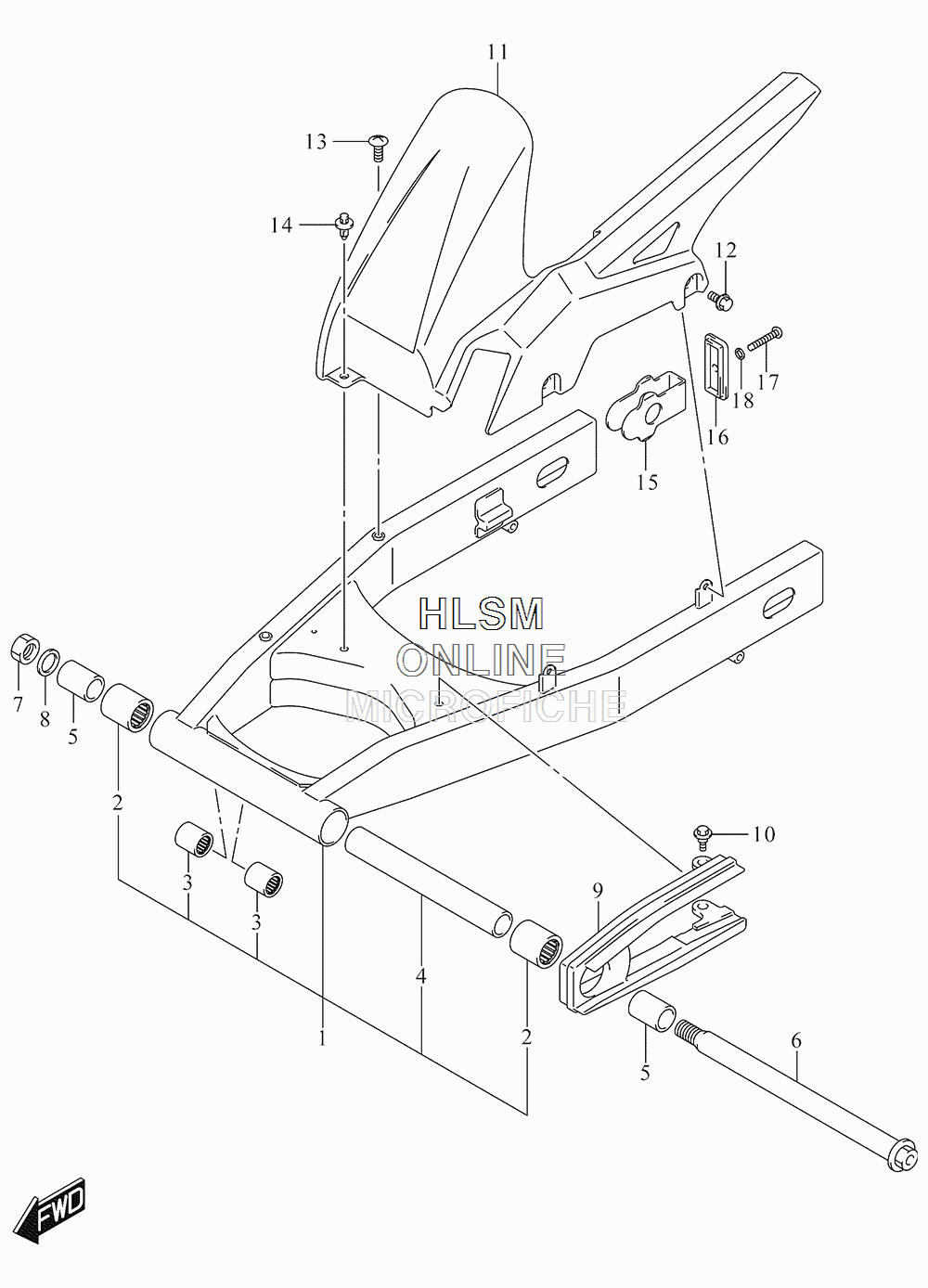

REAR SWINGARM для Suzuki GSX-S750A L5 ABS - 2015 года выпуска
-
№АртикулНазвание
-
161000-08J00-YAP SWINGING ARM ASSY, REAR (BLACK)SWINGING ARM ASSY, REAR (BLACK)
-
209263-25059 ...BEARING (25X33X35)...BEARING (25X33X35)
-
309263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
461282-17C00 ...SPACER, PIVOT CENTER...SPACER, PIVOT CENTER
-
561251-21E00 SPACER, PIVOTSPACER, PIVOT
-
661211-31E00 SHAFT, PIVOTSHAFT, PIVOT
-
709159-18007 NUTNUT
-
809160-18030 WASHER (18.5X28X2.6)WASHER (18.5X28X2.6)
-
961273-08J00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1009111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
1161310-08J00 CASE, CHAINCASE, CHAIN
-
1209111-06107 BOLT (6X12)BOLT (6X12)
