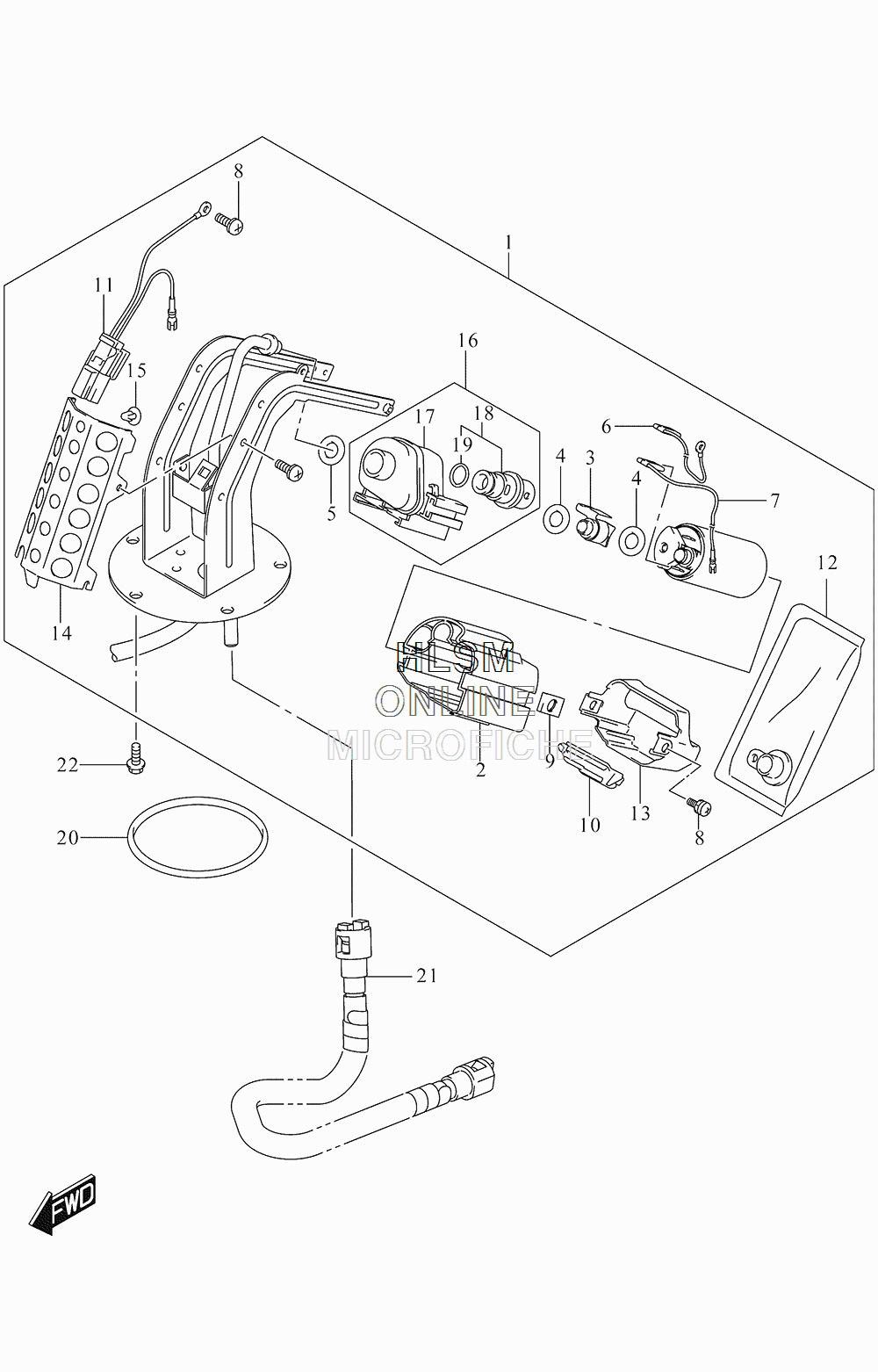

FUEL PUMP для Suzuki GW250Z K5 INAZUMA W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
115100-48H01 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215111-18H00 CUPCUP
-
315112-05H00 JOINTJOINT
-
415113-05H00 O RINGO RING
-
515113-35F00 O RINGO RING
-
615114-05H01 WIRE, EARTHWIRE, EARTH
-
715115-05H01 WIRE, LEADWIRE, LEAD
-
815116-10F00 SCREWSCREW
-
915117-05H00 STOPPERSTOPPER
-
1015118-18H00 COVER, CUPCOVER, CUP
-
1115246-18H01 HARNESS, GAUGEHARNESS, GAUGE
-
1215420-48H10 STRAINERSTRAINER
-
1315426-48H01 COVER, DUSTCOVER, DUST
-
1415581-48H00 GUARDGUARD
-
1515582-18H00 STOPPERSTOPPER
-
1615610-48H00 REGULATOR ASSY, FUELREGULATOR ASSY, FUEL
-
1715410-48H00 FILTERFILTER
-
1815610-48H10 REGULATORREGULATOR
-
1915113-48H00 O RINGO RING
-
2015201-48H00 O RING, FUEL PUMPO RING, FUEL PUMP
-
2115810-48H00 HOSE, FUELHOSE, FUEL
-
2207120-0612A BOLTBOLT
