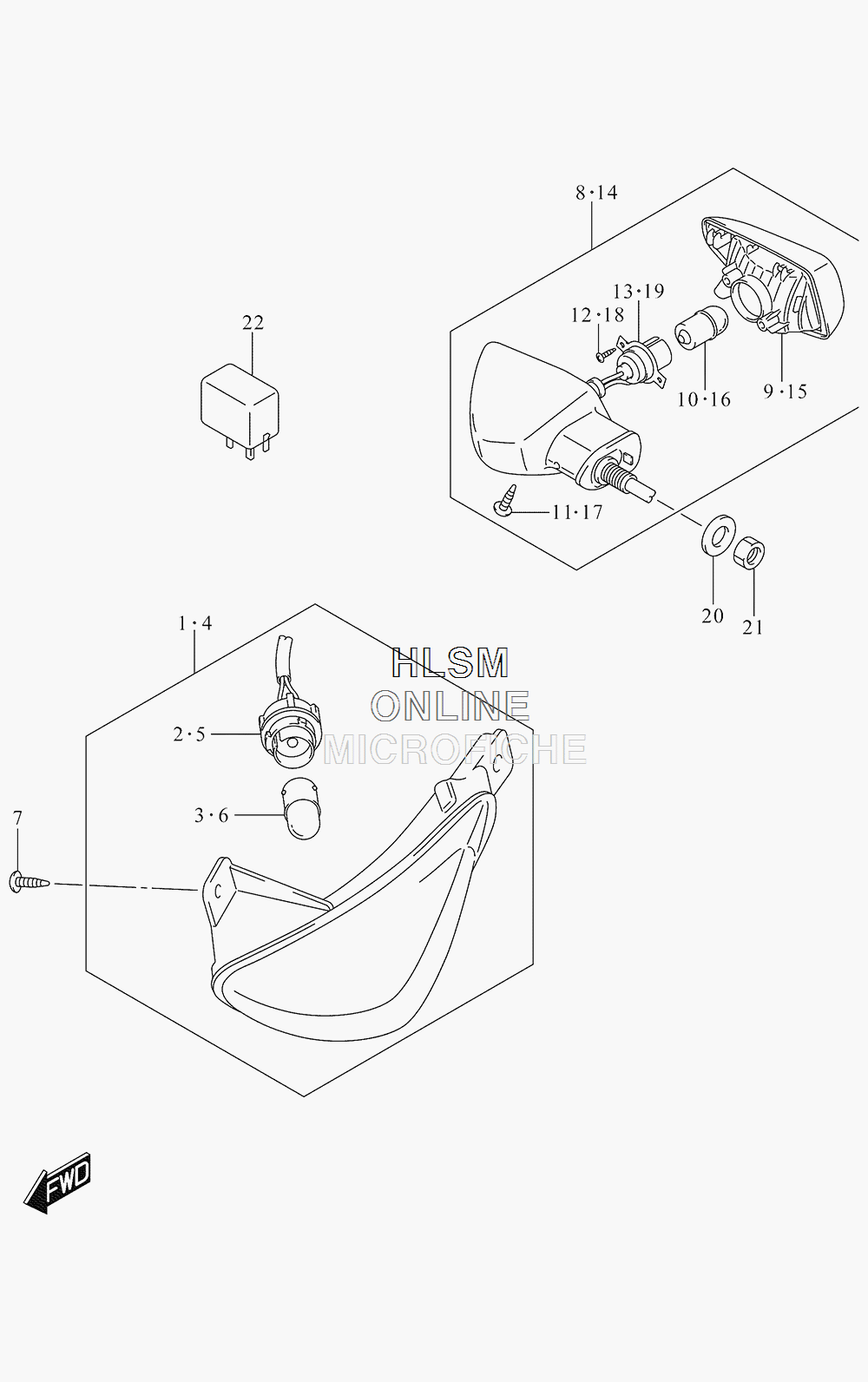

TURN SIGNAL ASSY. для Suzuki GW250Z K5 INAZUMA W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
135601-48H30 LAMP ASSY, FRONT TURNSIGNAL RHLAMP ASSY, FRONT TURNSIGNAL RH
-
235618-48H00 CORDCORD
-
309471-12226 BULB (12V,10W)BULB (12V,10W)
-
435602-48H30 LAMP ASSY, FRONT TURNSIGNAL LHLAMP ASSY, FRONT TURNSIGNAL LH
-
535638-48H00 CORDCORD
-
609471-12226 BULB (12V,10W)BULB (12V,10W)
-
703541-0516A SCREWSCREW
-
835603-48H03 LAMP ASSY, REAR TURNSIGNAL RHLAMP ASSY, REAR TURNSIGNAL RH
-
935650-48H01 LAMP UNIT RHLAMP UNIT RH
-
1009471-12226 BULB (12V,10W)BULB (12V,10W)
-
1103241-0412A SCREWSCREW
-
1235623-48H00 SCREWSCREW
-
1335658-48H00 CORD RHCORD RH
-
1435604-48H03 LAMP ASSY, REAR TURNSIGNAL LHLAMP ASSY, REAR TURNSIGNAL LH
-
1535670-48H01 LAMP UNIT LHLAMP UNIT LH
-
1609471-12226 BULB (12V,10W)BULB (12V,10W)
-
1703241-0412A SCREWSCREW
-
1835623-48H00 SCREWSCREW
-
1935678-48H00 CORD LHCORD LH
-
2035679-48H00 WASHER, REAR TURNSIGNAL LAMPWASHER, REAR TURNSIGNAL LAMP
-
2108310-0010A NUTNUT
-
2238610-26H02 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
