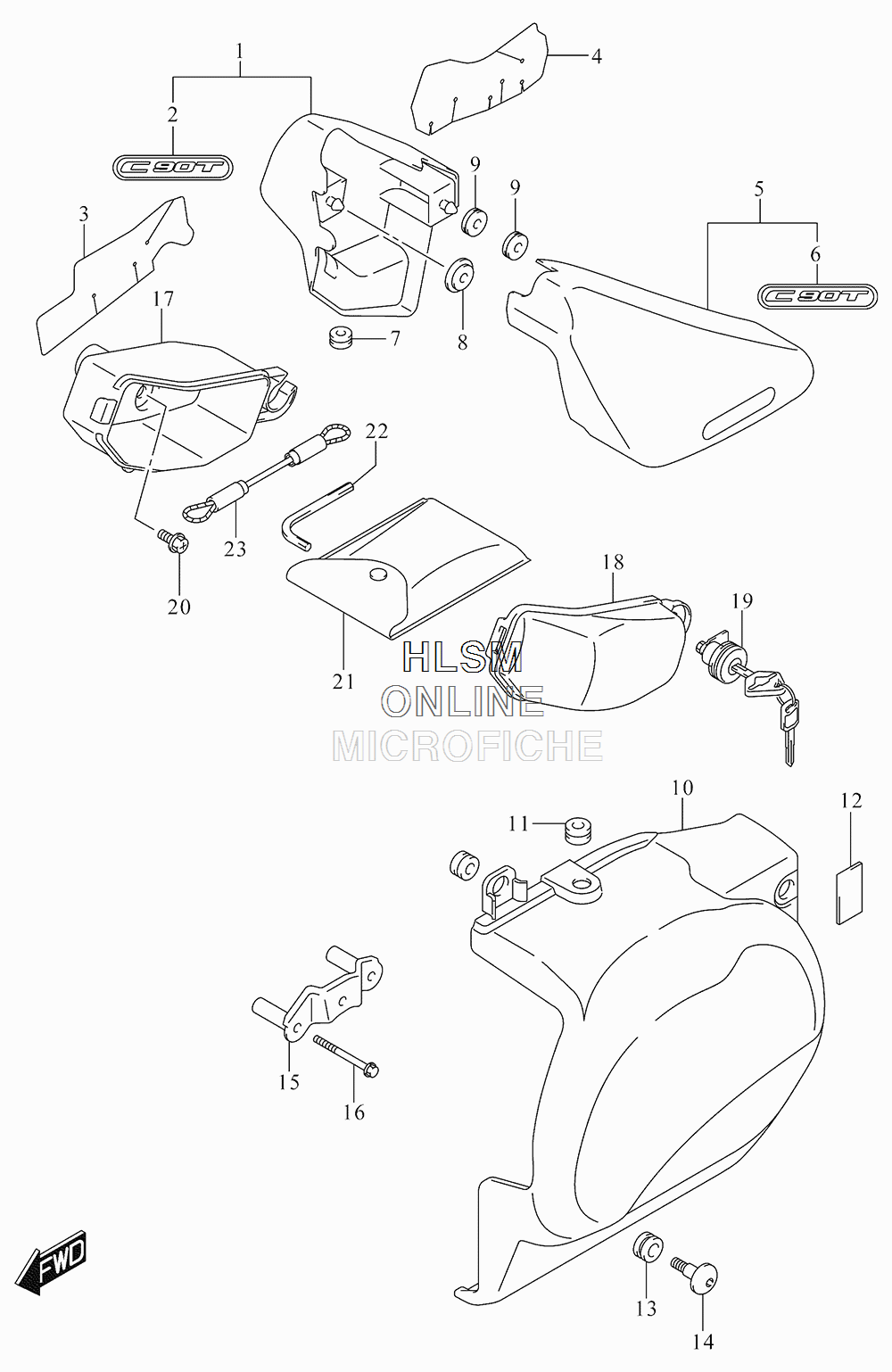

SIDE COVER для Suzuki VL1500T L5 BOULEVARD C90T - 2015 года выпуска
-
№АртикулНазвание
-
147110-06J21-YVB COVER, SIDE RIGHT HAND (BLACK)COVER, SIDE RIGHT HAND (BLACK)
-
268131-10FB1 ...EMBLEM, ''C90T''...EMBLEM, ''C90T''
-
347166-06J10 SHIELD, SIDE COVER RIGHT HANDSHIELD, SIDE COVER RIGHT HAND
-
447166-06J20 SHIELD, SIDE COVER RIGHT HANDSHIELD, SIDE COVER RIGHT HAND
-
547210-06J21-YVB COVER, SIDE LEFT HAND (BLACK)COVER, SIDE LEFT HAND (BLACK)
-
668131-10FB1 ...EMBLEM, ''C90T''...EMBLEM, ''C90T''
-
747167-06J00 CUSHION, SIDE COVER LOWER RIGHT HANDCUSHION, SIDE COVER LOWER RIGHT HAND
-
847191-06J00 CUSHION, SIDE COVER FRONTCUSHION, SIDE COVER FRONT
-
909320-08018 CUSHION (REAR)CUSHION (REAR)
-
1047231-40H00 COVER, LOWER LEFT HANDCOVER, LOWER LEFT HAND
-
1109320-06504 CUSHION (LEFT HAND)CUSHION (LEFT HAND)
-
1251827-01A00 CUSHION (LEFT HAND)CUSHION (LEFT HAND)
-
1309320-09016 CUSHION (LEFT HAND)CUSHION (LEFT HAND)
-
1409139-06190 BOLT (6X20) (LEFT HAND)BOLT (6X20) (LEFT HAND)
-
1547250-06J00 BRACKET, LOWER COVER LEFT HANDBRACKET, LOWER COVER LEFT HAND
-
1601547-0650A BOLTBOLT
-
1792211-06J00 BODY, LUGGAGE BOXBODY, LUGGAGE BOX
-
1892212-06J00 LIDLID
-
1995700-07860 LOCK SET, LUGGAGE BOXLOCK SET, LUGGAGE BOX
-
2009111-06107 BOLT (6X12)BOLT (6X12)
-
2109800-21056 TOOL ASSYTOOL ASSY
-
2209816-00050 SPANNER, 6 HEXAGONSPANNER, 6 HEXAGON
-
2395740-06G00 CABLE, HELMET LOCKCABLE, HELMET LOCK
