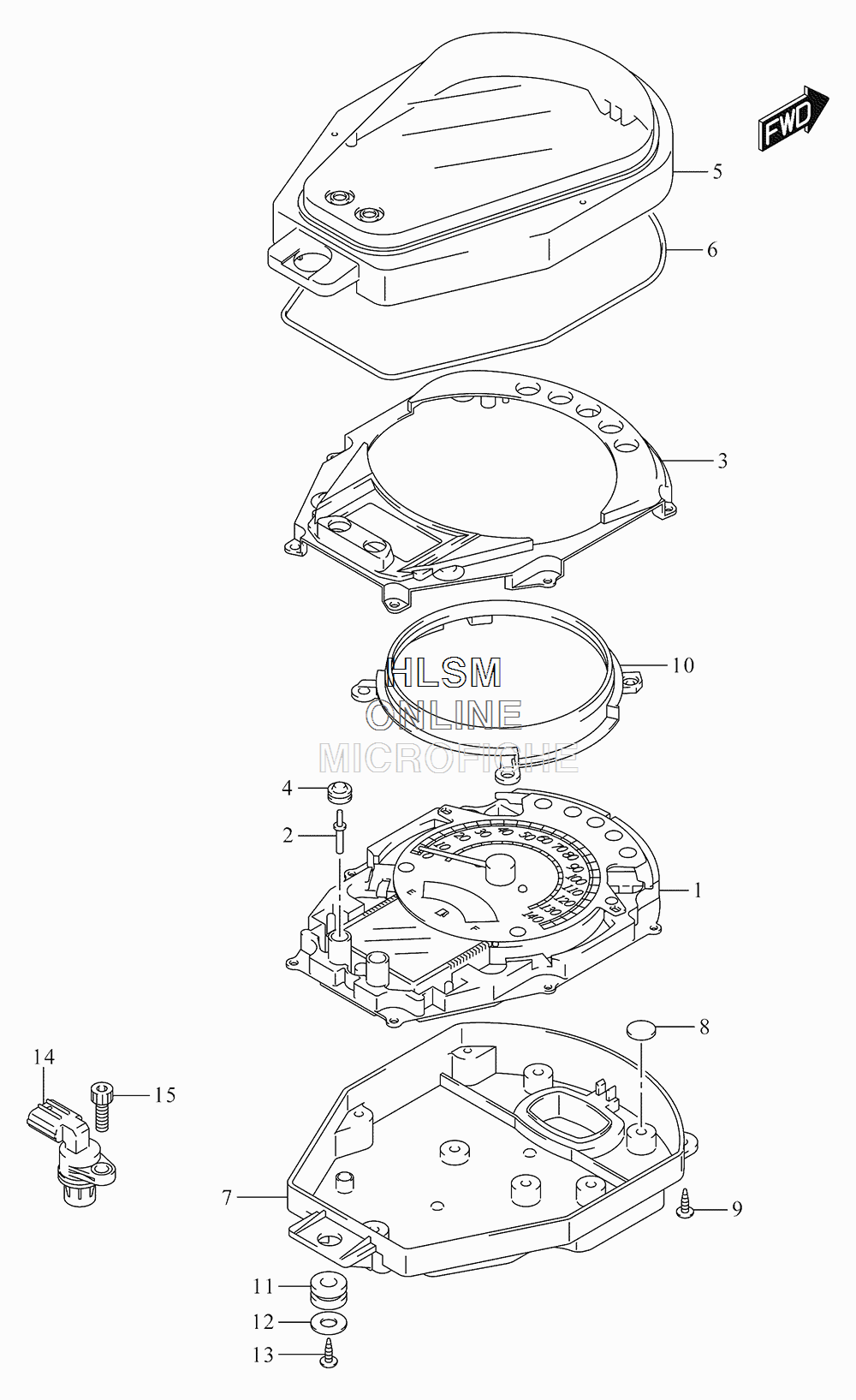

SPEEDOMETER (CALIF) для Suzuki VL1500T L5 BOULEVARD C90T - 2015 года выпуска
-
№АртикулНазвание
-
134120-06J60 SPEEDOMETERSPEEDOMETER
-
234124-16G00 KNOB, SPEEDOMETERKNOB, SPEEDOMETER
-
334125-43H00 PLATE, SPEEDOMETERPLATE, SPEEDOMETER
-
434126-44G00 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
534151-43H00 CASE, UPPERCASE, UPPER
-
634153-43H00 PACKINGPACKING
-
734156-06J00 COVERCOVER
-
834167-13E00 SEALSEAL
-
934183-29F00 SCREW (3X12)SCREW (3X12)
-
1034193-06J00 RINGRING
-
1134996-43410 CUSHIONCUSHION
-
1209160-05037 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
1303541-0516A SCREWSCREW
-
1434990-31G01 SENSOR, SPEEDSENSOR, SPEED
-
1507130-0616A BOLTBOLT
