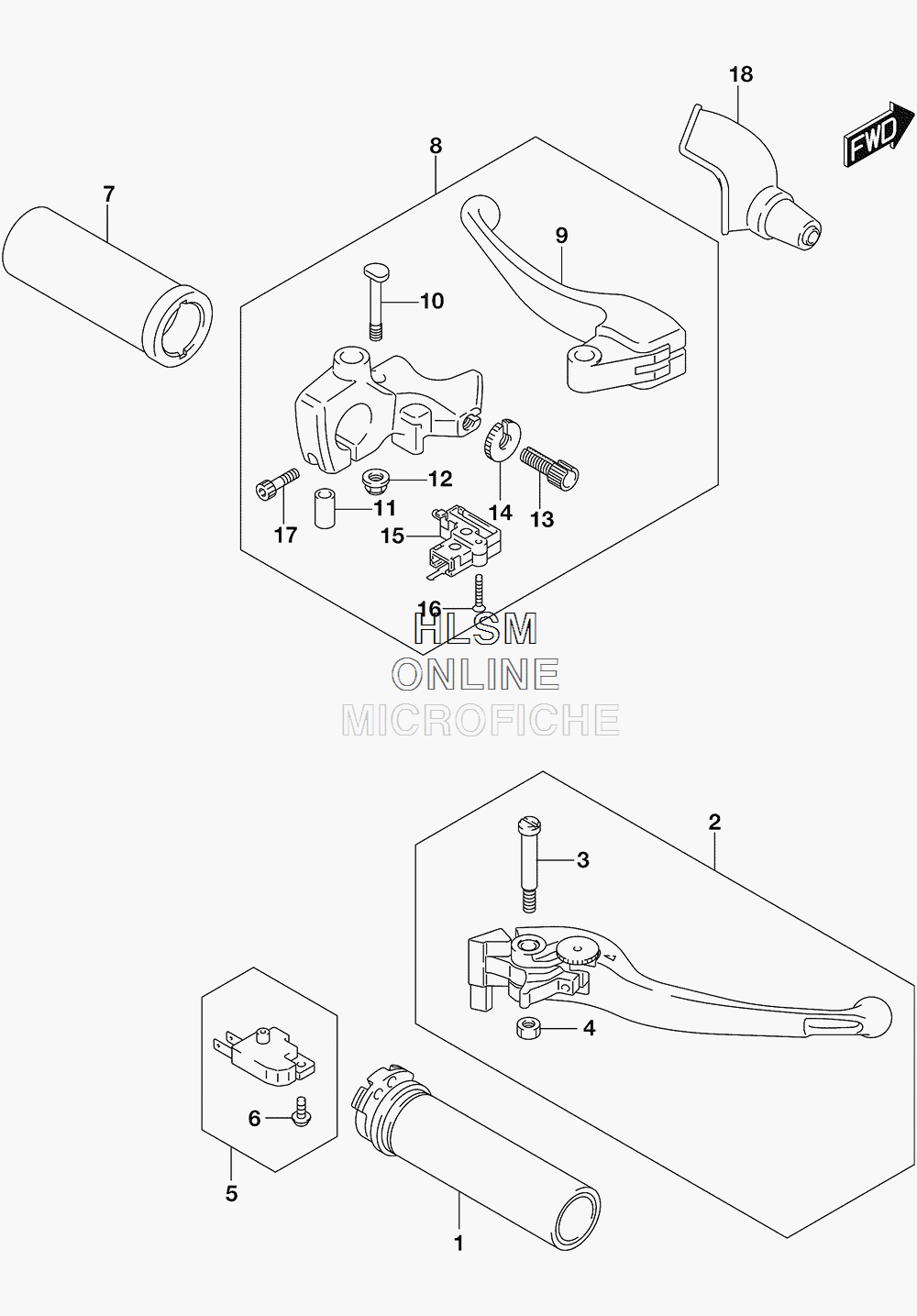

HANDLEBAR - LEVERS для Suzuki VL800 L5 BOULEVARD C50 - 2015 года выпуска
-
№АртикулНазвание
-
157110-26D10 GRIP, THROTTLEGRIP, THROTTLE
-
257300-48G10 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
357431-48G00 ...BOLT, PIVOT...BOLT, PIVOT
-
408319-2106A ...NUT...NUT
-
557460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
657465-17C00 ...SCREW...SCREW
-
757210-26D00 GRIP, LEFT HANDGRIP, LEFT HAND
-
857500-48G11 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
957621-48G11 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1057531-48G00 ...BOLT, PIVOT...BOLT, PIVOT
-
1157623-48G00 ...SPACER...SPACER
-
1208319-3106B ...NUT...NUT
-
1357441-08C00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
1457442-08C00 ...NUT, LOCK...NUT, LOCK
-
1557560-05A10 ...SWITCH, CLUTCH...SWITCH, CLUTCH
-
1657562-41G00 ...SCREW...SCREW
-
1707130-0620A ...BOLT...BOLT
-
1857541-48G10 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
