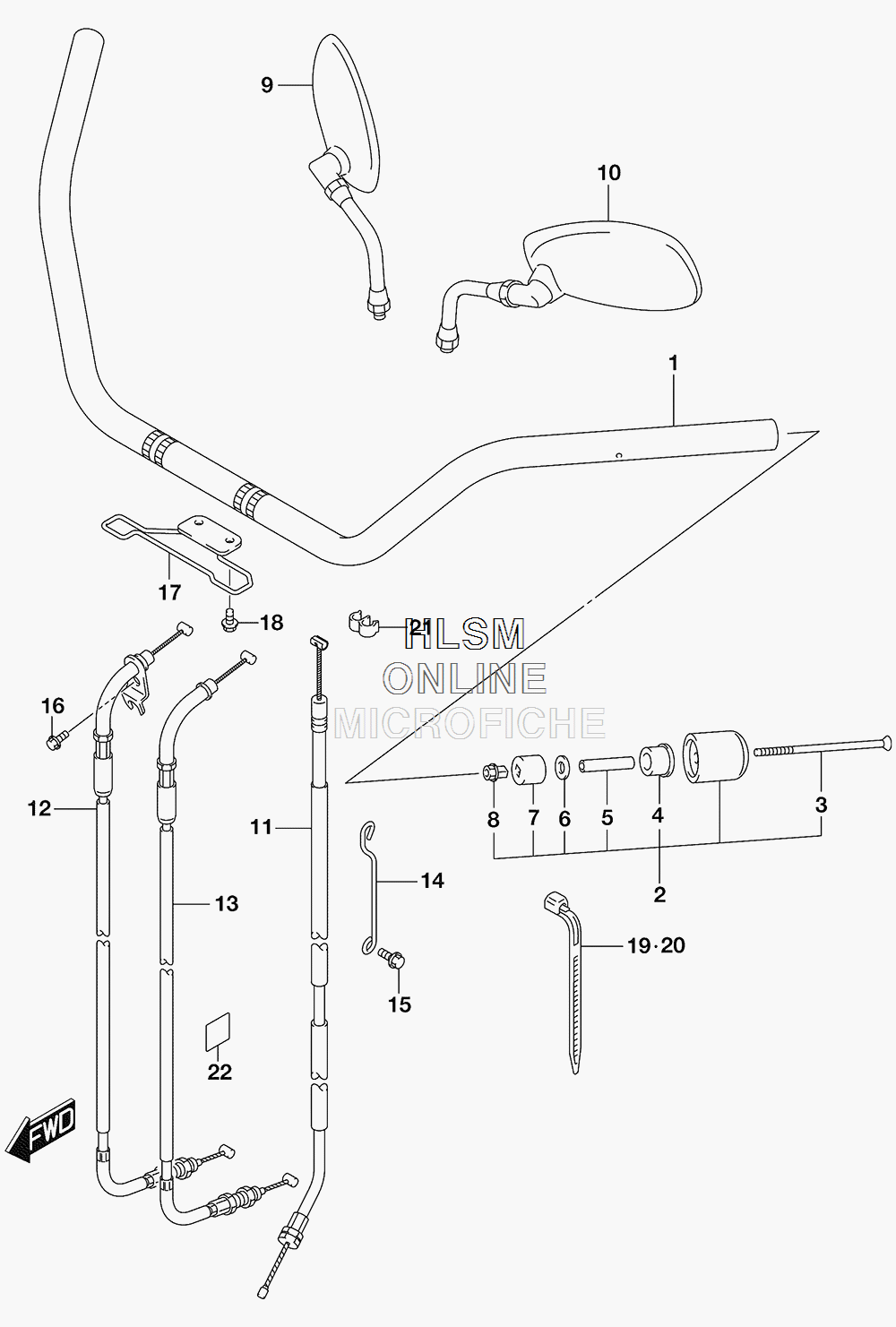

HANDLEBAR для Suzuki VL800 L5 BOULEVARD C50 - 2015 года выпуска
-
№АртикулНазвание
-
156111-41F30 HANDLEBARHANDLEBAR
-
256200-10891 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
309127-06017 ...SCREW (6X127)...SCREW (6X127)
-
456272-26D01 ...EXPANDER, OUTER...EXPANDER, OUTER
-
556276-17D00 ...SPACER...SPACER
-
609160-06131 ...WASHER (6.5X16X4)...WASHER (6.5X16X4)
-
756272-10G10 ...EXPANDER, INNER...EXPANDER, INNER
-
856273-10G10 ...NUT...NUT
-
956500-41F01 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
1056600-41F01 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1158200-41F30 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1258300-43H00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1358300-43H10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1458626-41F01 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1501550-0612B BOLTBOLT
-
1601550-0616A BOLTBOLT
-
1758620-41F00 GUIDE, CABLEGUIDE, CABLE
-
1801550-0612A BOLTBOLT
-
1909407-19401 CLAMP (L:190)CLAMP (L:190)
-
2009407-30401 CLAMP (L:300)CLAMP (L:300)
-
2109408-00244 CLIPCLIP
-
2287873-56K50 PROTECTORPROTECTOR
