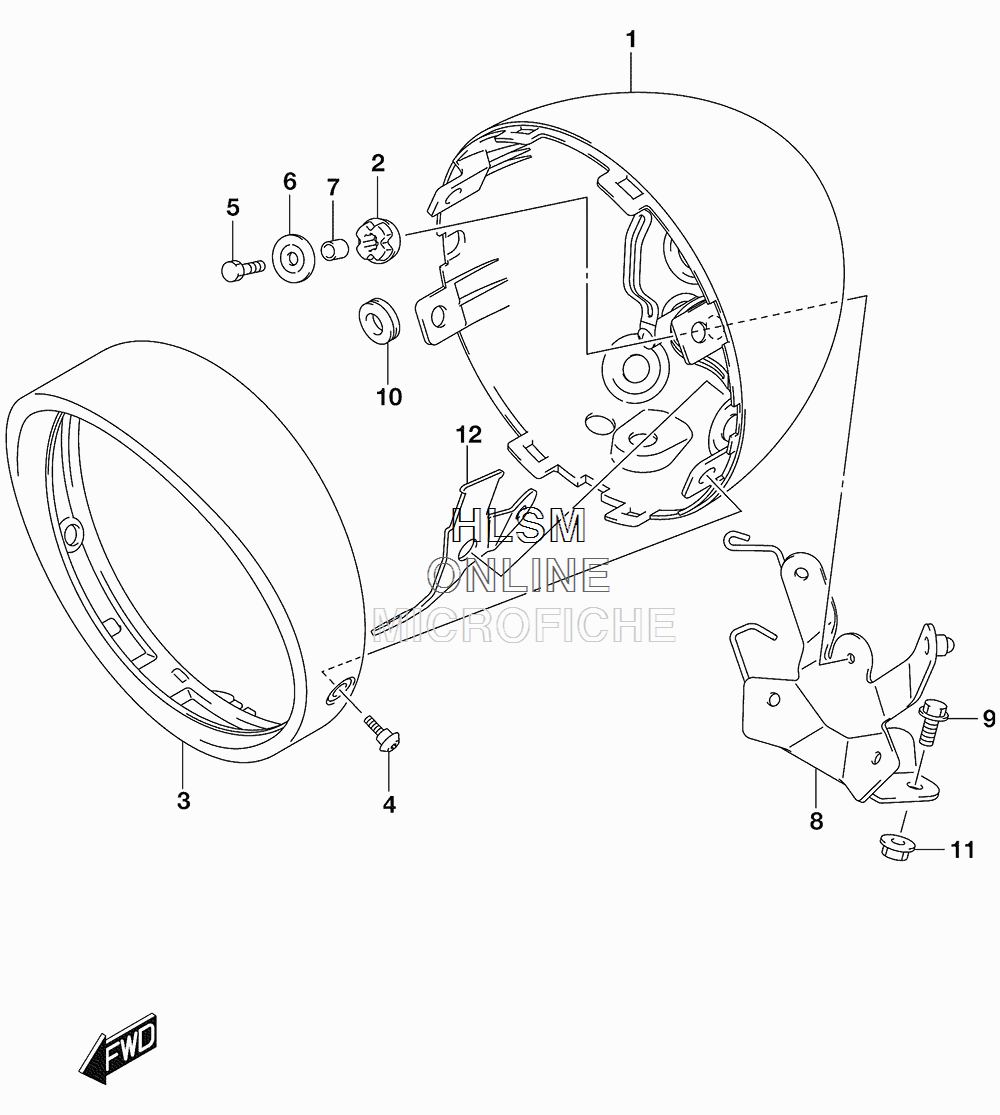

HEADLAMP HOUSING для Suzuki VL800T L5 BOULEVARD C50T - 2015 года выпуска
-
№АртикулНазвание
-
151811-06J00 HOUSING, HEADLAMPHOUSING, HEADLAMP
-
209320-09010 CUSHIONCUSHION
-
351821-06J00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
409139-05077 SCREW (5X16)SCREW (5X16)
-
501500-0625A BOLTBOLT
-
609160-06152 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
709180-06307 SPACER (6.5X9X10)SPACER (6.5X9X10)
-
851850-43H00 BRACKET COMP, HOUSINGBRACKET COMP, HOUSING
-
901550-0825B BOLTBOLT
-
1009320-08028 CUSHIONCUSHION
-
1108319-3108B NUTNUT
-
1251859-43H00 PLATE, HEADLAMP HOUSINGPLATE, HEADLAMP HOUSING
