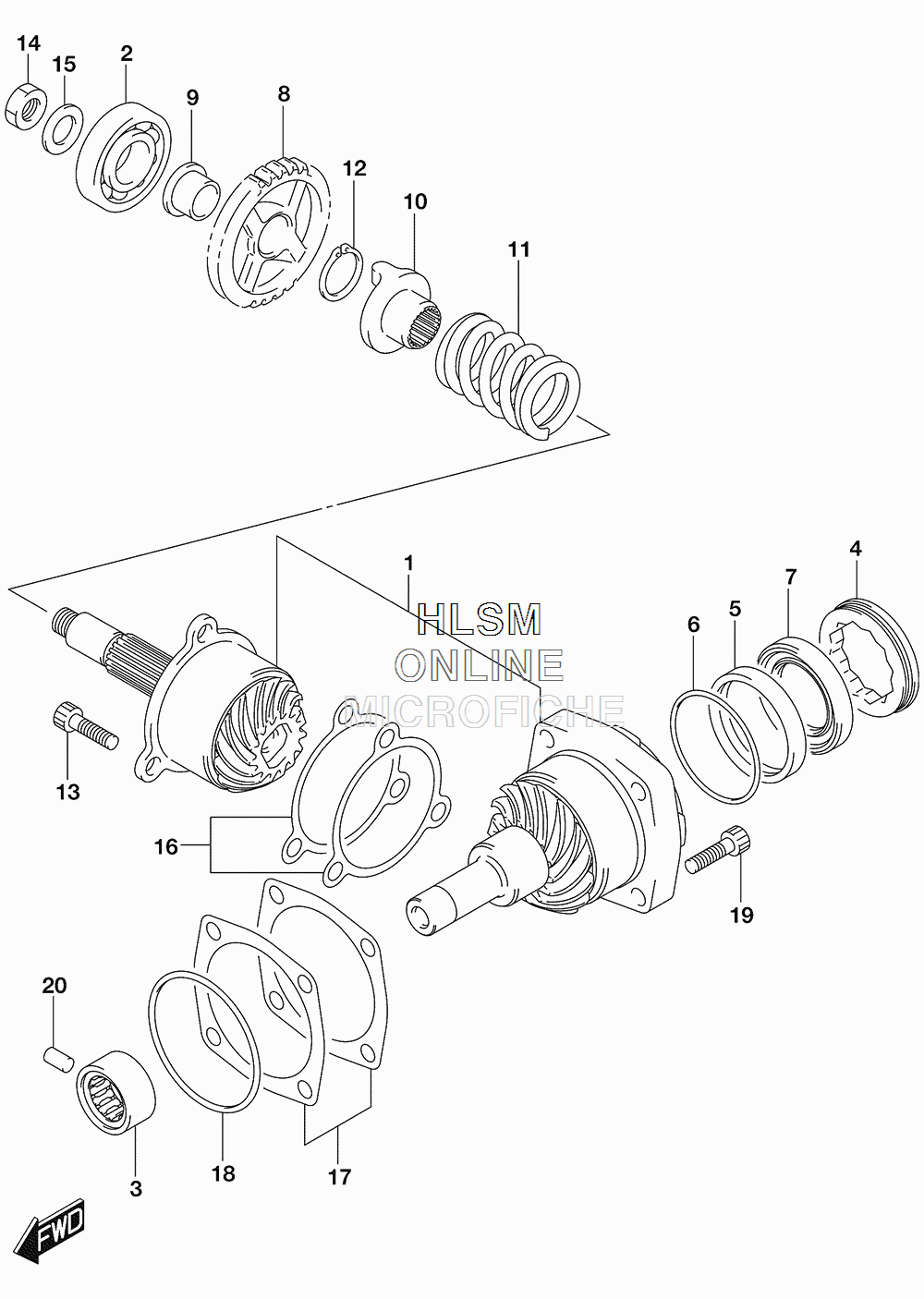

SECONDARY DRIVE GEAR для Suzuki VL800T L5 BOULEVARD C50T - 2015 года выпуска
-
№АртикулНазвание
-
124900-41810 GEAR AND HOUSING SET, SECONDARYGEAR AND HOUSING SET, SECONDARY
-
209262-20073 ...BEARING (20X52X15)...BEARING (20X52X15)
-
309263-20038 ...BEARING (20X34X16)...BEARING (20X34X16)
-
424942-38A50 ...STOPPER, BEARING...STOPPER, BEARING
-
524943-38A50 ...HOUSING, OIL SEAL...HOUSING, OIL SEAL
-
609280-60003 ...O RING (D:1.2,ID:59.6)...O RING (D:1.2,ID:59.6)
-
709283-38016 ...OIL SEAL (38X54X8.5)...OIL SEAL (38X54X8.5)
-
824631-38A00 GEAR, REDUCTION DRIVEN (NT:30)GEAR, REDUCTION DRIVEN (NT:30)
-
924632-38A00 BUSHBUSH
-
1024922-38A00 DOG, OUTPUT CAMDOG, OUTPUT CAM
-
1109440-44002 SPRINGSPRING
-
1208331-31219 CIRCLIPCIRCLIP
-
1309106-08097 BOLT (8X25)BOLT (8X25)
-
1409140-16001 NUTNUT
-
1509160-16029 WASHER (16X29X4)WASHER (16X29X4)
-
1624935-38810 SHIM SET, SEC DRIVE GEAR (T:0.3/0.35/0.4/0.5/0.6)SHIM SET, SEC DRIVE GEAR (T:0.3/0.35/0.4/0.5/0.6)
-
1724945-05810 SHIM SET, SEC DRIVE HOUSING (T:0.3/0.35/0.4/0.5/0.6)SHIM SET, SEC DRIVE HOUSING (T:0.3/0.35/0.4/0.5/0.6)
-
1809280-67004 O RING (D:2.1,ID:66.2)O RING (D:2.1,ID:66.2)
-
1909106-08097 BOLT (8X25)BOLT (8X25)
-
2004221-07129 PINPIN
