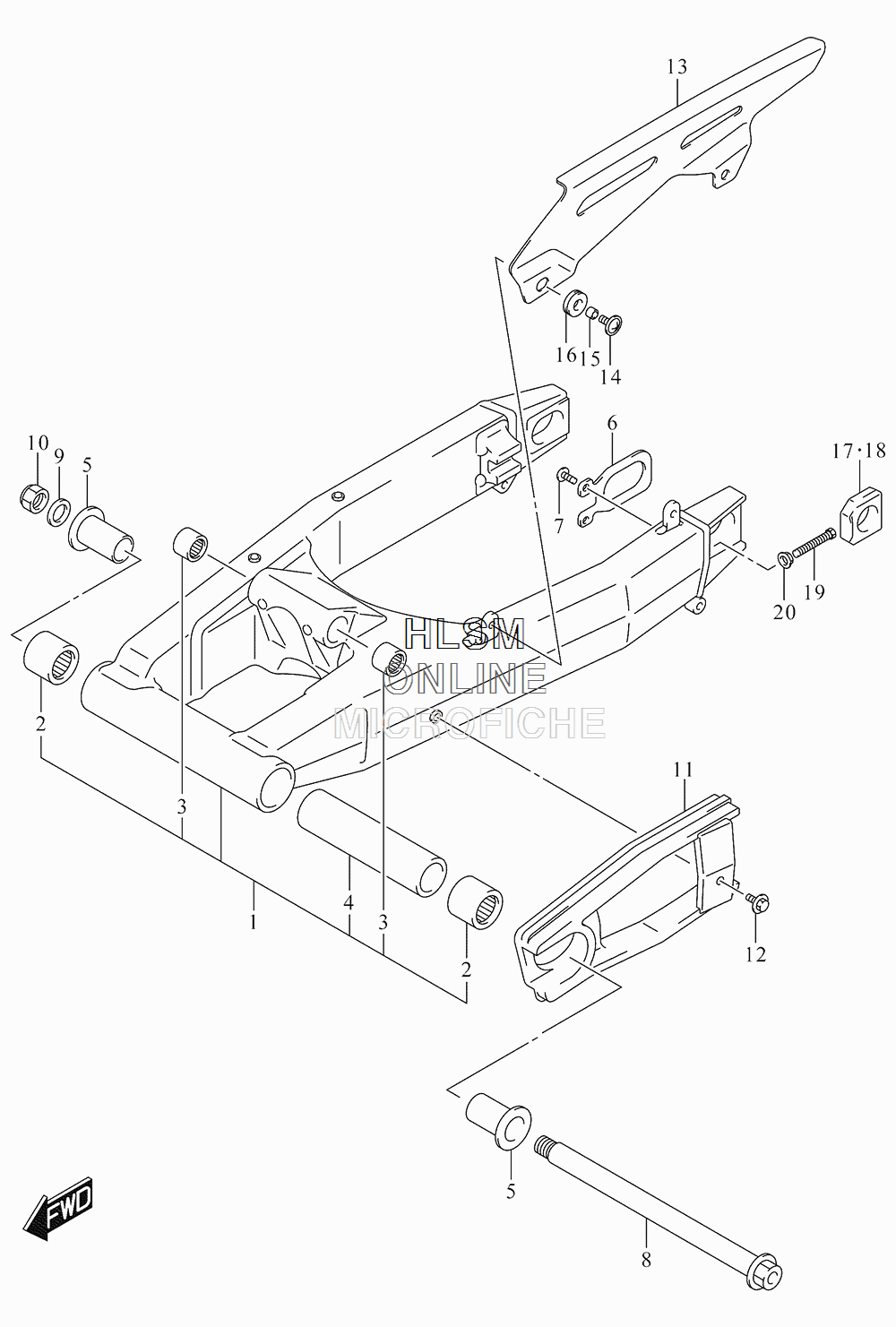

REAR SWINGARM для Suzuki GSF1250SA L6 BANDIT 1250S ABS - 2016 года выпуска
-
№АртикулНазвание
-
161000-49G00 SWINGING ARM ASSY, REARSWINGING ARM ASSY, REAR
-
209263-25059 ...BEARING (25X33X35)...BEARING (25X33X35)
-
309263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
461282-31E00 ...SPACER...SPACER
-
561251-31E00 SPACER, BEARINGSPACER, BEARING
-
661124-33E00 PLATE, REAR SWGARM BRACKETPLATE, REAR SWGARM BRACKET
-
702142-0616B SCREWSCREW
-
861211-31E00 SHAFT, PIVOTSHAFT, PIVOT
-
909160-18030 WASHER (18.5X28X2.6)WASHER (18.5X28X2.6)
-
1009159-18007 NUTNUT
-
1161273-49G10 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1209111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
1361311-27E20 CASE, CHAINCASE, CHAIN
-
1409136-06017 SCREW (6X16)SCREW (6X16)
-
1509180-06092 SPACER (6.2X8.3X6.1)SPACER (6.2X8.3X6.1)
-
1609320-08013 CUSHIONCUSHION
-
1761445-40F00 ADJUSTER, CHAIN RHADJUSTER, CHAIN RH
-
1861446-40F00 ADJUSTER, CHAIN LHADJUSTER, CHAIN LH
-
1909100-08287 BOLT (8X50)BOLT (8X50)
-
2008316-1008A NUTNUT
