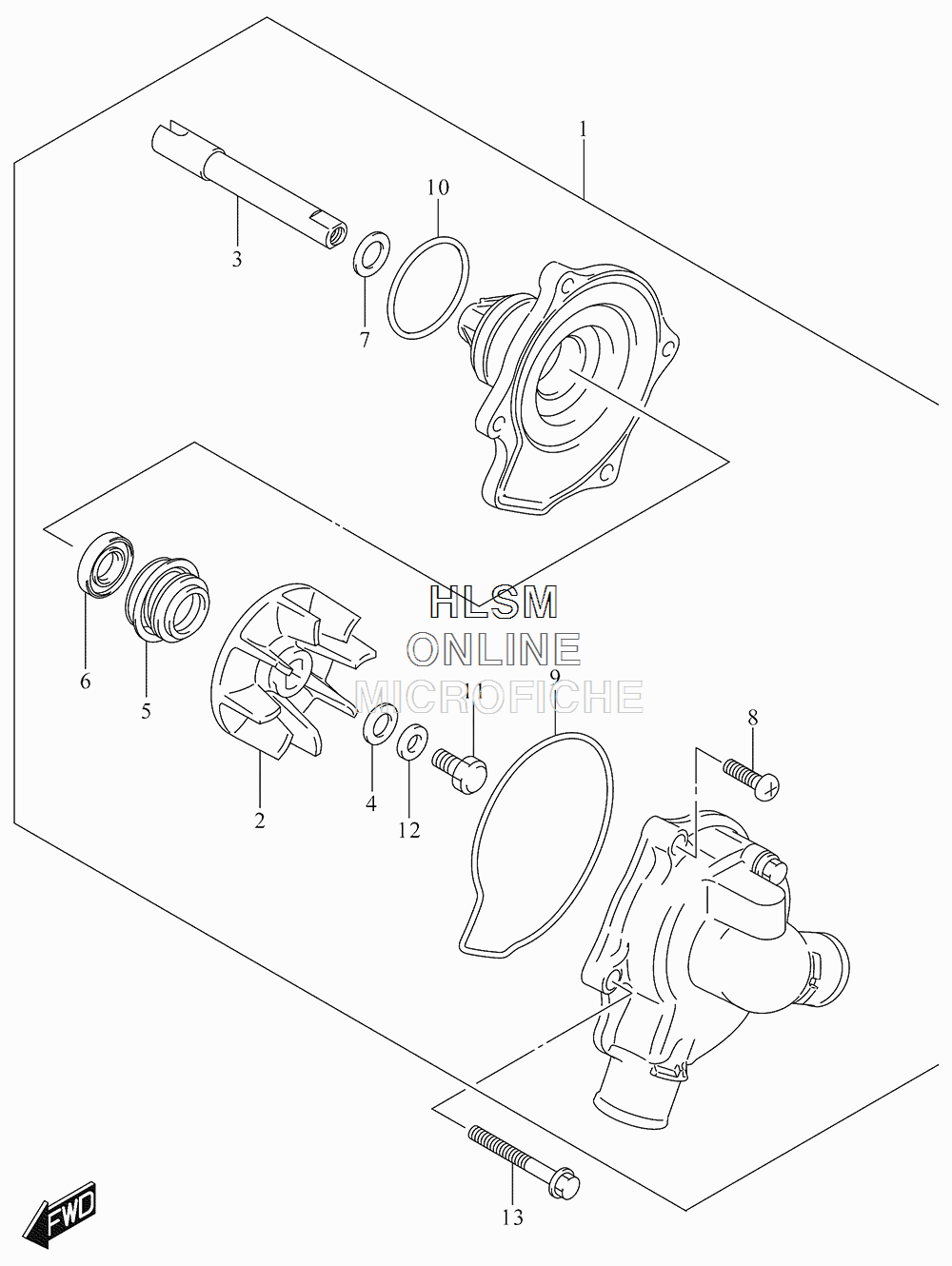

WATER PUMP для Suzuki GSF1250SA L6 BANDIT 1250S ABS - 2016 года выпуска
-
№АртикулНазвание
-
117400-18H00 PUMP ASSY, WATERPUMP ASSY, WATER
-
217491-01H00 ...IMPELLER...IMPELLER
-
317511-41G00 ...SHAFT...SHAFT
-
409168-06025 ...GASKET (6X15X2.2)...GASKET (6X15X2.2)
-
517470-02F10 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
617461-01H00 ...OIL SEAL...OIL SEAL
-
717432-07G00 ...WASHER...WASHER
-
802112-0616A ...SCREW...SCREW
-
917418-18H00 ...O RING...O RING
-
1017435-33400 ...O RING...O RING
-
1109100-06099 ...BOLT (6X13)...BOLT (6X13)
-
1209164-06006 ...WASHER...WASHER
-
1301547-0635A BOLTBOLT
