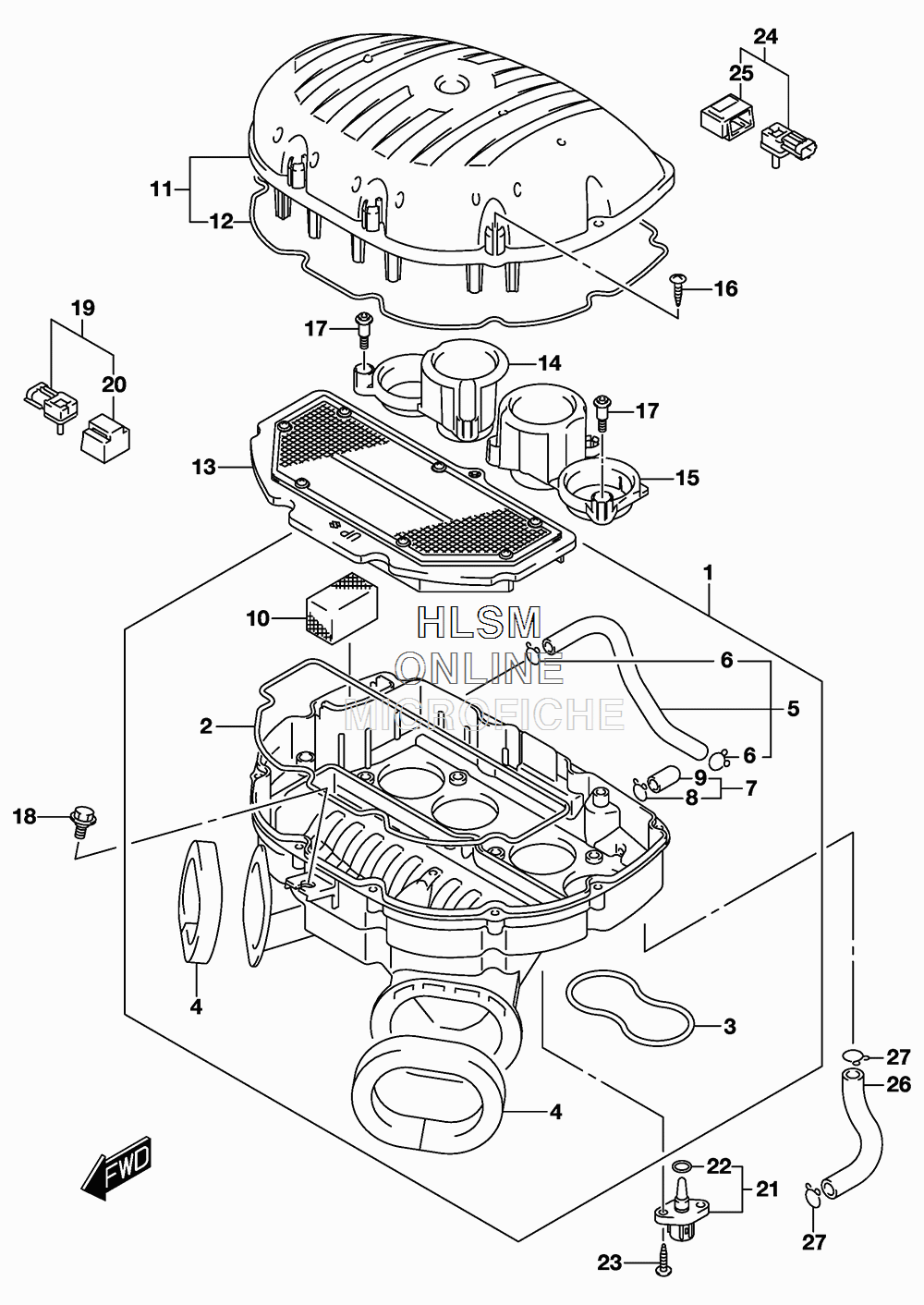

AIR CLEANER для Suzuki GSX-R1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
113720-47H01 CASE, AIR CLEANERCASE, AIR CLEANER
-
213756-47H00 ...GASKET, CASE...GASKET, CASE
-
313757-47H00 ...GASKET, CASE...GASKET, CASE
-
413736-01H00 ...CUSHION, DUCT...CUSHION, DUCT
-
513850-47H00 ...TUBE, BREATHER...TUBE, BREATHER
-
609401-14101 ......CLIP......CLIP
-
713856-19B03 ...PLUG ASSY, DRAIN...PLUG ASSY, DRAIN
-
809401-14101 ......CLIP......CLIP
-
913859-41B10 ......PLUG......PLUG
-
1013788-47H00 ...FILTER, BREATHER...FILTER, BREATHER
-
1113740-47H00 CAP, AIR CLEANERCAP, AIR CLEANER
-
1213746-47H00 ...GASKET, CAP...GASKET, CAP
-
1313780-47H10 FILTER ASSYFILTER ASSY
-
1413881-47H00 FUNNEL, OUTLET RHFUNNEL, OUTLET RH
-
1513882-47H00 FUNNEL, OUTLET LHFUNNEL, OUTLET LH
-
1603541-0525A SCREWSCREW
-
1713831-47H00 BOLTBOLT
-
1809111-06089 BOLT (6X16)BOLT (6X16)
-
1915630-29G40 SENSOR, BOOSTSENSOR, BOOST
-
2015625-29G40 ...COVER...COVER
-
2113650-14G10 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2213655-14G10 ...O RING...O RING
-
2303511-0516A BOLTBOLT
-
2415630-29G30 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
2515625-29G30 ...COVER...COVER
-
2613697-47H00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2709401-15101 CLIPCLIP
