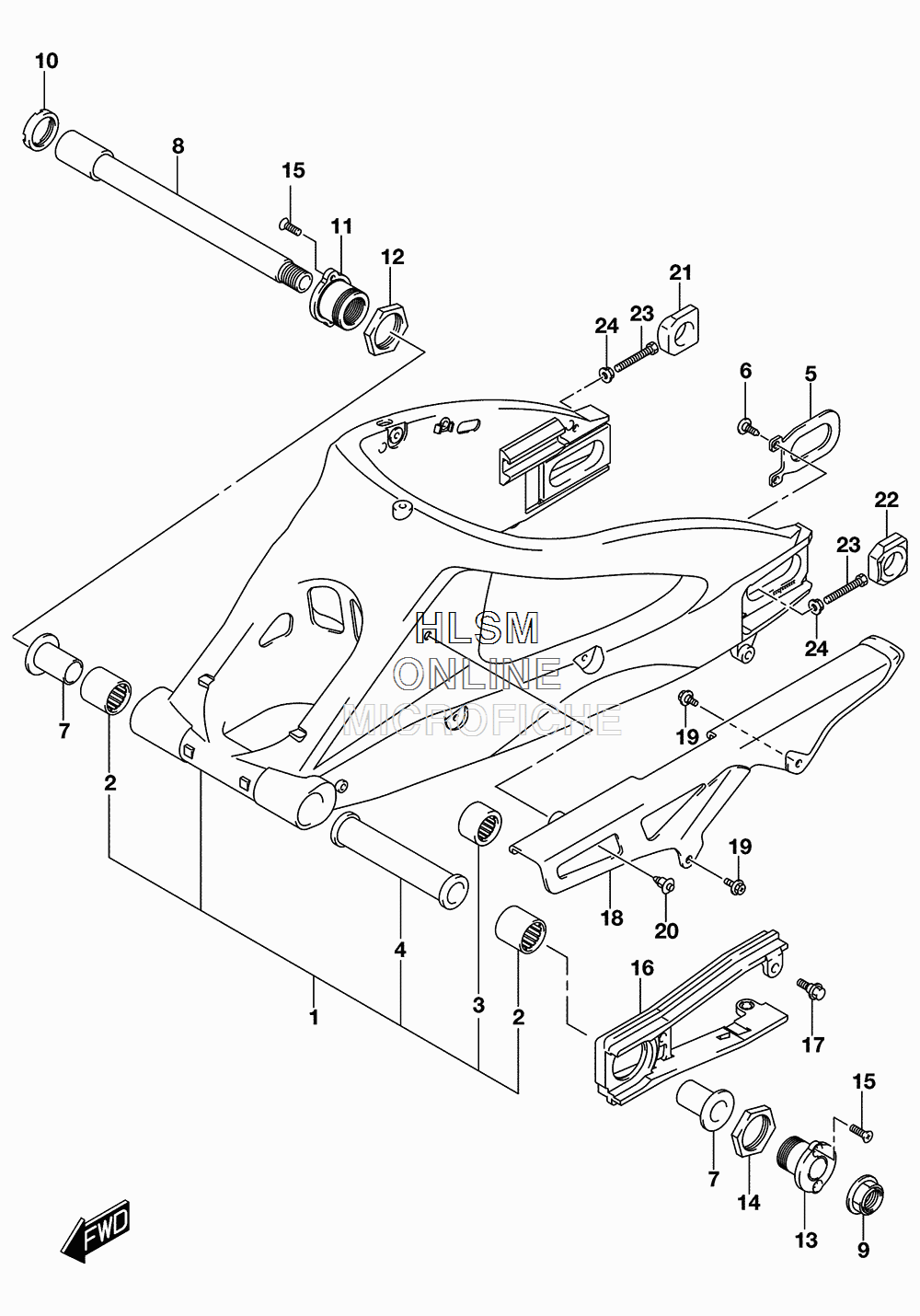

REAR SWINGARM для Suzuki GSX-R1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
161000-47H10-YAP SWINGING ARM ASSY, REAR (BLACK)SWINGING ARM ASSY, REAR (BLACK)
-
209263-27013 ...BEARING (27X35X35)...BEARING (27X35X35)
-
309263-20070 ...BEARING (20X27X30)...BEARING (20X27X30)
-
461281-41G00 ...SPACER, CENTER...SPACER, CENTER
-
561124-41G00 PLATE, BRACKETPLATE, BRACKET
-
609125-06060 SCREW (6X12)SCREW (6X12)
-
761251-41G00 SPACER, BEARINGSPACER, BEARING
-
861211-41G00 SHAFT, PIVOTSHAFT, PIVOT
-
909159-20006 NUTNUT
-
1061214-42E10 NUT, PIVOTNUT, PIVOT
-
1161212-47H00 BOSS, RR SWGARM PIVOT RHBOSS, RR SWGARM PIVOT RH
-
1261213-41G00 NUT, RR SWGARM PIVOT BOSS RHNUT, RR SWGARM PIVOT BOSS RH
-
1361214-47H00 BOSS, RR SWGARM PIVOT LHBOSS, RR SWGARM PIVOT LH
-
1461215-41G00 NUT, RR SWGARM PIVOT BOSS LHNUT, RR SWGARM PIVOT BOSS LH
-
1502122-0512B SCREWSCREW
-
1661273-47H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1709111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
1861311-21H00 CASE, CHAINCASE, CHAIN
-
1909111-06107 BOLT (6X12)BOLT (6X12)
-
2009409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
2161445-40F00 ADJUSTER, CHAIN RHADJUSTER, CHAIN RH
-
2261446-40F00 ADJUSTER, CHAIN LHADJUSTER, CHAIN LH
-
2309100-08287 BOLT (8X50)BOLT (8X50)
-
2408316-1008A NUTNUT
