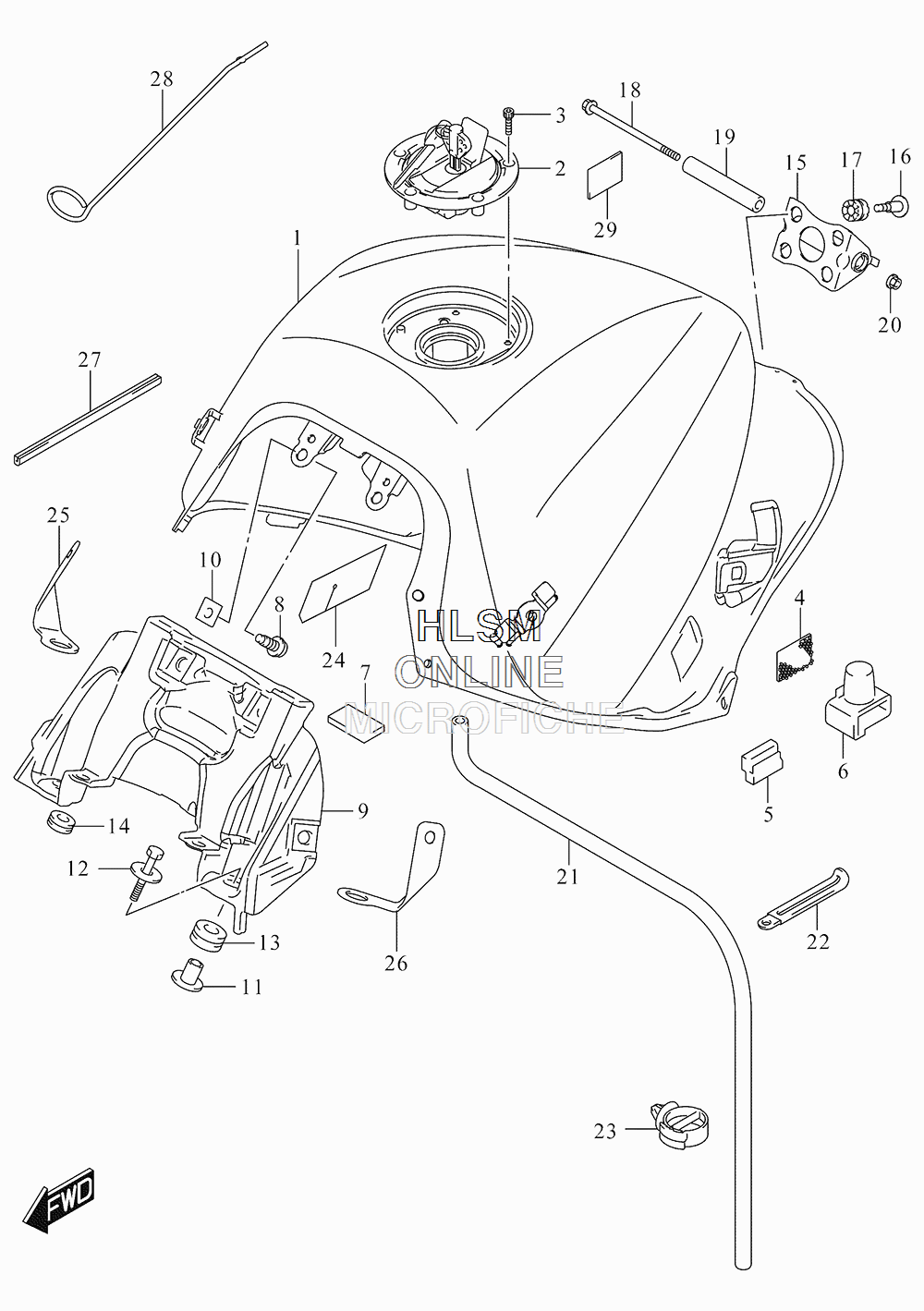

FUEL TANK для Suzuki GSX-S1000FA L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
144100-04K20-PGZ TANK ASSY, FUEL (GRAY) (FOR PGZ)TANK ASSY, FUEL (GRAY) (FOR PGZ)
-
144100-04K20-YSF TANK ASSY, FUEL (BLUE) (FOR YSF)TANK ASSY, FUEL (BLUE) (FOR YSF)
-
144100-04K20-YVB TANK ASSY, FUEL (BLACK) (FOR AV4)TANK ASSY, FUEL (BLACK) (FOR AV4)
-
244200-16870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
344244-11J00 BOLTBOLT
-
444572-13G00 FASTENERFASTENER
-
544541-41G00 CUSHION, SIDECUSHION, SIDE
-
644542-04K00 CUSHION, REARCUSHION, REAR
-
733652-21G10 CUSHION, FUEL TANK INNERCUSHION, FUEL TANK INNER
-
844543-04K00 SCREW, BRACKET FRONTSCREW, BRACKET FRONT
-
944521-04K00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
1044523-47H00 NUTNUT
-
1144512-04K00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
1209116-06172 BOLT (6X30)BOLT (6X30)
-
1309320-10050 CUSHIONCUSHION
-
1409320-06504 CUSHIONCUSHION
-
1544530-04K00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1609139-06203 SCREW (6X24)SCREW (6X24)
-
1709320-08089 CUSHIONCUSHION
-
1809103-06060 BOLT (6X100)BOLT (6X100)
-
1944561-18G00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
2009159-06076 NUTNUT
-
2144423-04K10 HOSE, DRAINHOSE, DRAIN
-
2209404-06433 CLAMP (L:80)CLAMP (L:80)
-
2309403-20307 CLAMPCLAMP
-
2444283-06J00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2544561-04K00 BRACKET, FUEL TANK FRONT, RHBRACKET, FUEL TANK FRONT, RH
-
2644571-04K00 BRACKET, FUEL TANK FRONT, LHBRACKET, FUEL TANK FRONT, LH
-
2744552-24B00 MOLDING, FUEL TANK, REARMOLDING, FUEL TANK, REAR
-
2844560-23H00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
-
2994474-17H00 PROTECTORPROTECTOR
