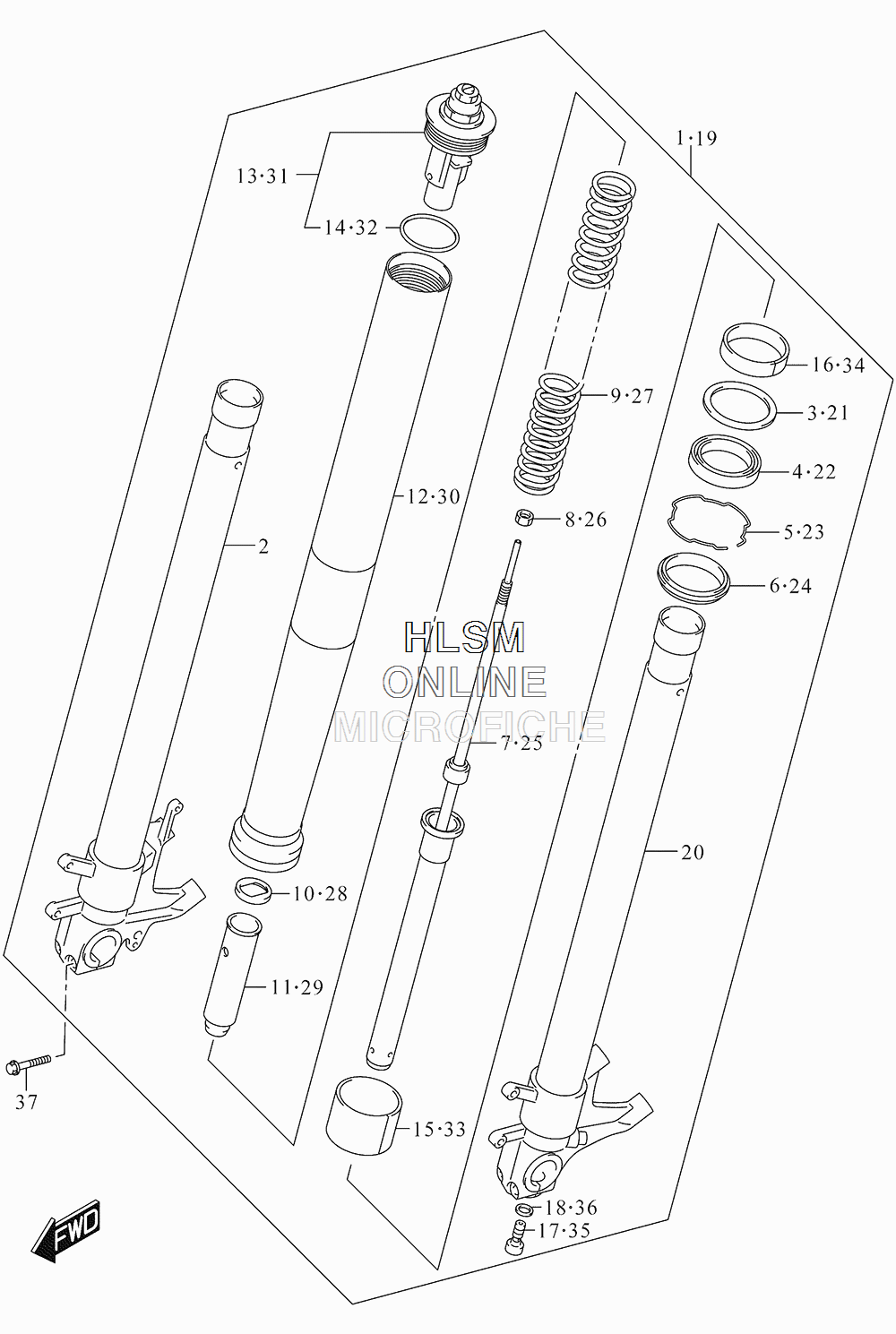

SUSPENSION - FRONT FORK для Suzuki GSX-S1000FA L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
151103-04K20 DAMPER ASSY, FRONT FORK RHDAMPER ASSY, FRONT FORK RH
-
251110-04K00 TUBE, INNER RHTUBE, INNER RH
-
351158-14200 WASHERWASHER
-
451153-44G00 OIL SEALOIL SEAL
-
551156-14200 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
651173-02FA0 SEAL, DUSTSEAL, DUST
-
751146-04K20 CYLINDERCYLINDER
-
851352-13A60 NUT, RODNUT, ROD
-
951171-04K20 SPRINGSPRING
-
1051158-40F30 GUIDE, SPRINGGUIDE, SPRING
-
1151176-40F30 SPACER, SPRINGSPACER, SPRING
-
1251131-04K00 TUBE, OUTERTUBE, OUTER
-
1351351-04K00 CAPCAP
-
1462278-14100 O RINGO RING
-
1551112-31J00 PISTONPISTON
-
1651152-31J00 SLIDEMETALSLIDEMETAL
-
1751147-24F50 BOLTBOLT
-
1851148-41310 GASKETGASKET
-
1951104-04K20 DAMPER ASSY, FRONT FORK LHDAMPER ASSY, FRONT FORK LH
-
2051120-04K00 TUBE, INNER LHTUBE, INNER LH
-
2151158-14200 WASHERWASHER
-
2251153-44G00 OIL SEALOIL SEAL
-
2351156-14200 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
2451173-02FA0 SEAL, DUSTSEAL, DUST
-
2551146-04K20 CYLINDERCYLINDER
-
2651352-13A60 NUT, RODNUT, ROD
-
2751171-04K20 SPRINGSPRING
-
2851158-40F30 GUIDE, SPRINGGUIDE, SPRING
-
2951176-40F30 SPACER, SPRINGSPACER, SPRING
-
3051131-04K00 TUBE, OUTERTUBE, OUTER
-
3151351-04K00 CAPCAP
-
3262278-14100 O RINGO RING
-
3351112-31J00 PISTONPISTON
-
3451152-31J00 SLIDEMETALSLIDEMETAL
-
3551147-24F50 BOLTBOLT
-
3651148-41310 GASKETGASKET
-
3751166-24F60 BOLTBOLT
