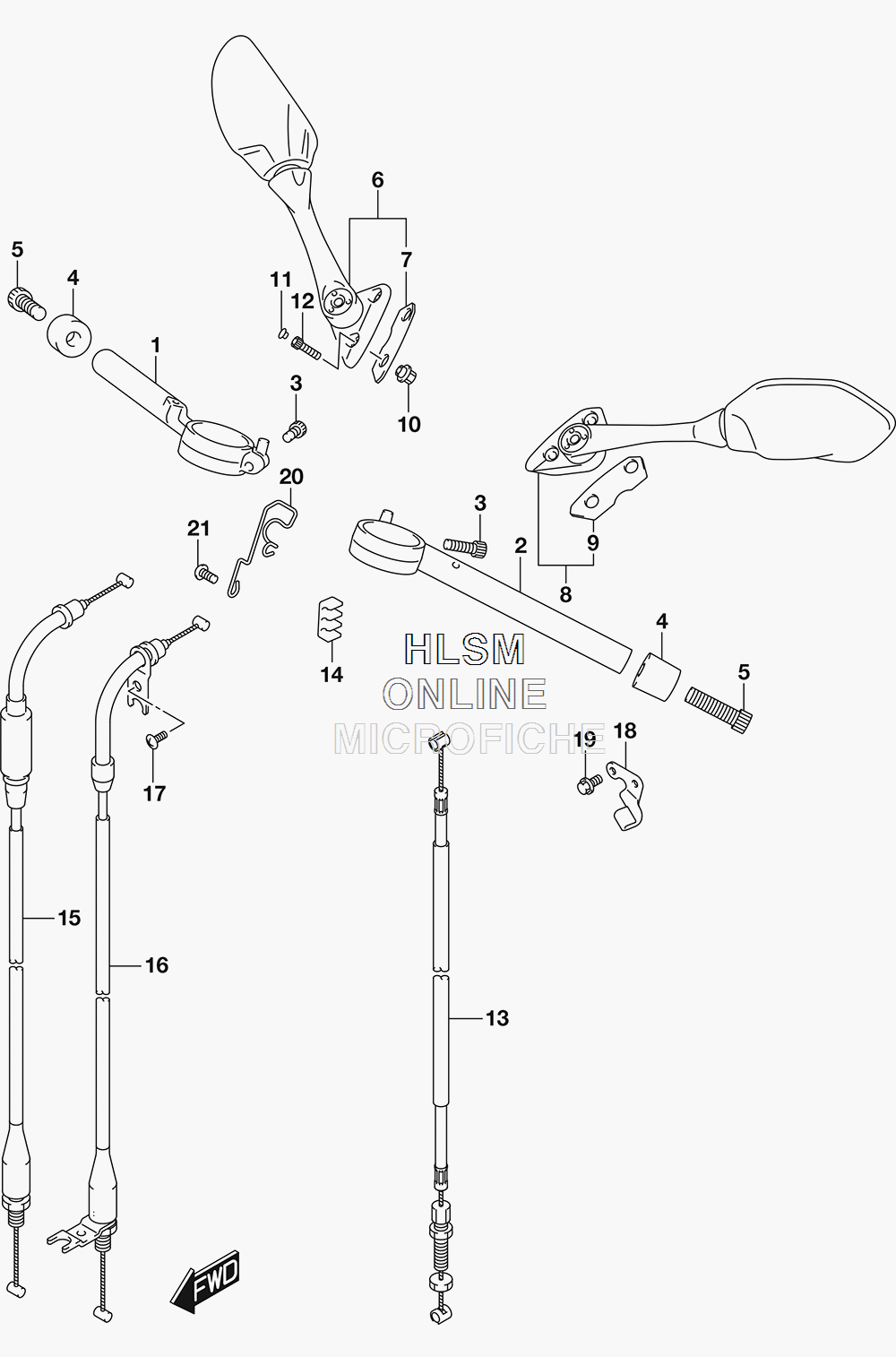

HANDLEBAR для Suzuki GSX-R1000A - 2017 года выпуска
-
№АртикулНазвание
-
156111-17K00 HANDLEBAR, (RH)HANDLEBAR, (RH)
-
256151-17K00 HANDLEBAR, (LH)HANDLEBAR, (LH)
-
309106-08185 BOLT (8X32)BOLT (8X32)
-
456278-17K00 BALANCER, HANDLEBARBALANCER, HANDLEBAR
-
509106-12001 BOLT (12X45)BOLT (12X45)
-
656500-17K00 MIRROR ASSY, REAR VIEW (RH)MIRROR ASSY, REAR VIEW (RH)
-
756525-17K00 ...CUSHION, MIRROR...CUSHION, MIRROR
-
856600-17K00 MIRROR ASSY, REAR VIEW (LH)MIRROR ASSY, REAR VIEW (LH)
-
956525-17K00 ...CUSHION, MIRROR...CUSHION, MIRROR
-
1056619-41G01 NUTNUT
-
1109250-05009 CAP (OD:10)CAP (OD:10)
-
1207130-0620B BOLTBOLT
-
1358200-17K00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1458285-17K00 CLAMPCLAMP
-
1558300-17K00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1658300-17K10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1709125-05042 SCREW (5X10)SCREW (5X10)
-
1858635-17K00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1901550-0616A BOLTBOLT
-
2058621-17K00 GUIDE, CABLEGUIDE, CABLE
-
2109139-06109 SCREW (6X16)SCREW (6X16)
