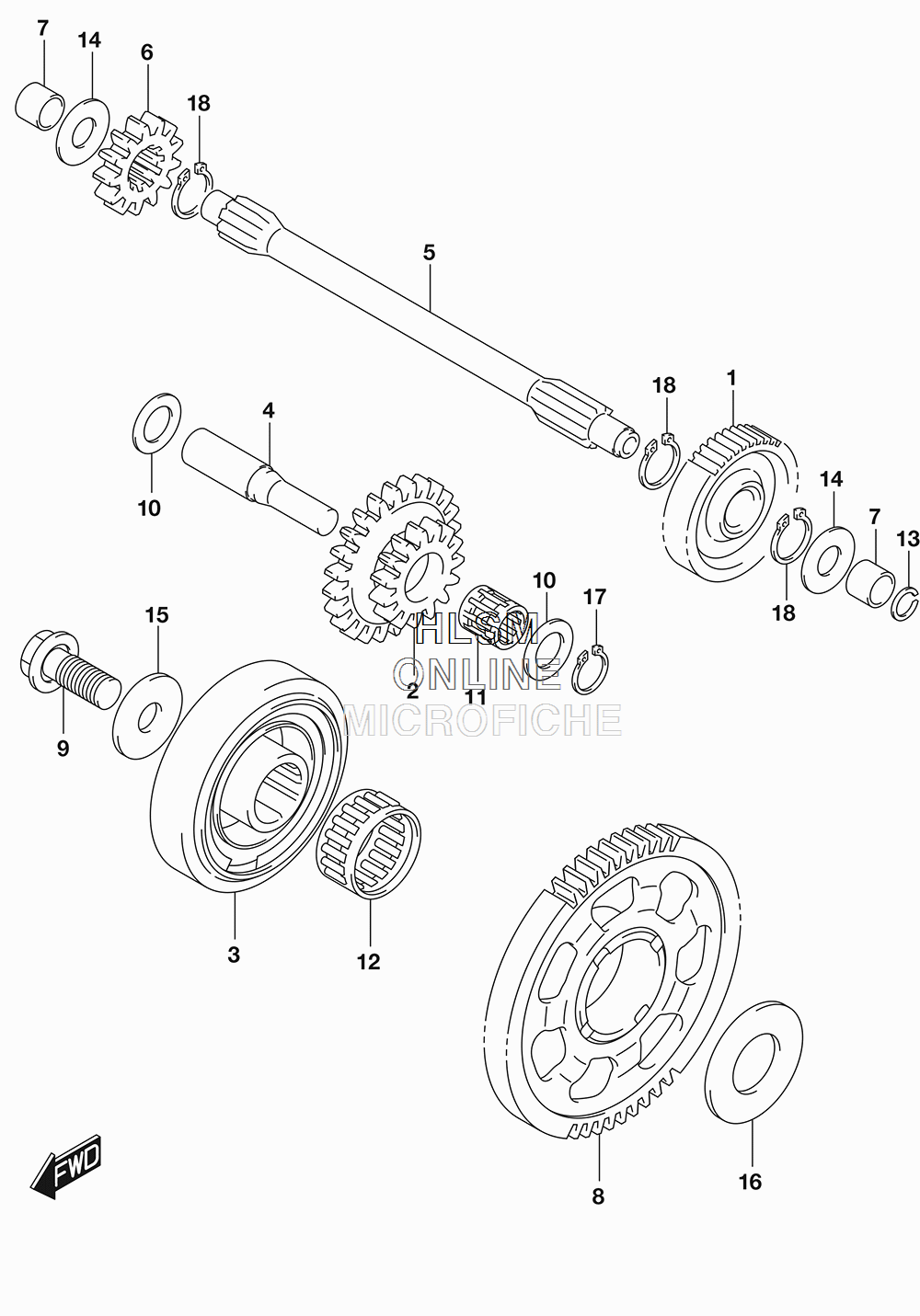

STARTER CLUTCH для Suzuki GSX-R1000A - 2017 года выпуска
-
№АртикулНазвание
-
112611-17K00 GEAR, STARTER IDLE NO.1 (NT:45)GEAR, STARTER IDLE NO.1 (NT:45)
-
212612-47H00 GEAR, STARTER IDLE NO.2 (NT:15/24)GEAR, STARTER IDLE NO.2 (NT:15/24)
-
312614-17K00 CLUTCH , STARTER ONE WAYCLUTCH , STARTER ONE WAY
-
412615-17K00 PIN, STARTER IDLE GEAR NO.2PIN, STARTER IDLE GEAR NO.2
-
512616-17K00 SHAFT, STARTER IDLE GEAR NO.1SHAFT, STARTER IDLE GEAR NO.1
-
612617-47H00 GEAR, LIMITER DRIVEN (NT:13)GEAR, LIMITER DRIVEN (NT:13)
-
712618-31G00 BUSHBUSH
-
812622-17K00 GEAR, STATER CLUTCH (NT:49)GEAR, STATER CLUTCH (NT:49)
-
909103-10189 BOLT (10X23)BOLT (10X23)
-
1009181-12167 SHIM (12X20X1)SHIM (12X20X1)
-
1109263-12023 BEARING (12X16X16)BEARING (12X16X16)
-
1209263-26035 BEARING (26X31X16)BEARING (26X31X16)
-
1309380-09003 CIRCLIPCIRCLIP
-
1408211-10221 WASHERWASHER
-
1508211-10285 WASHERWASHER
-
1608211-20403 WASHERWASHER
-
1708331-3112A CIRCLIPCIRCLIP
-
1808331-3115A CIRCLIPCIRCLIP
