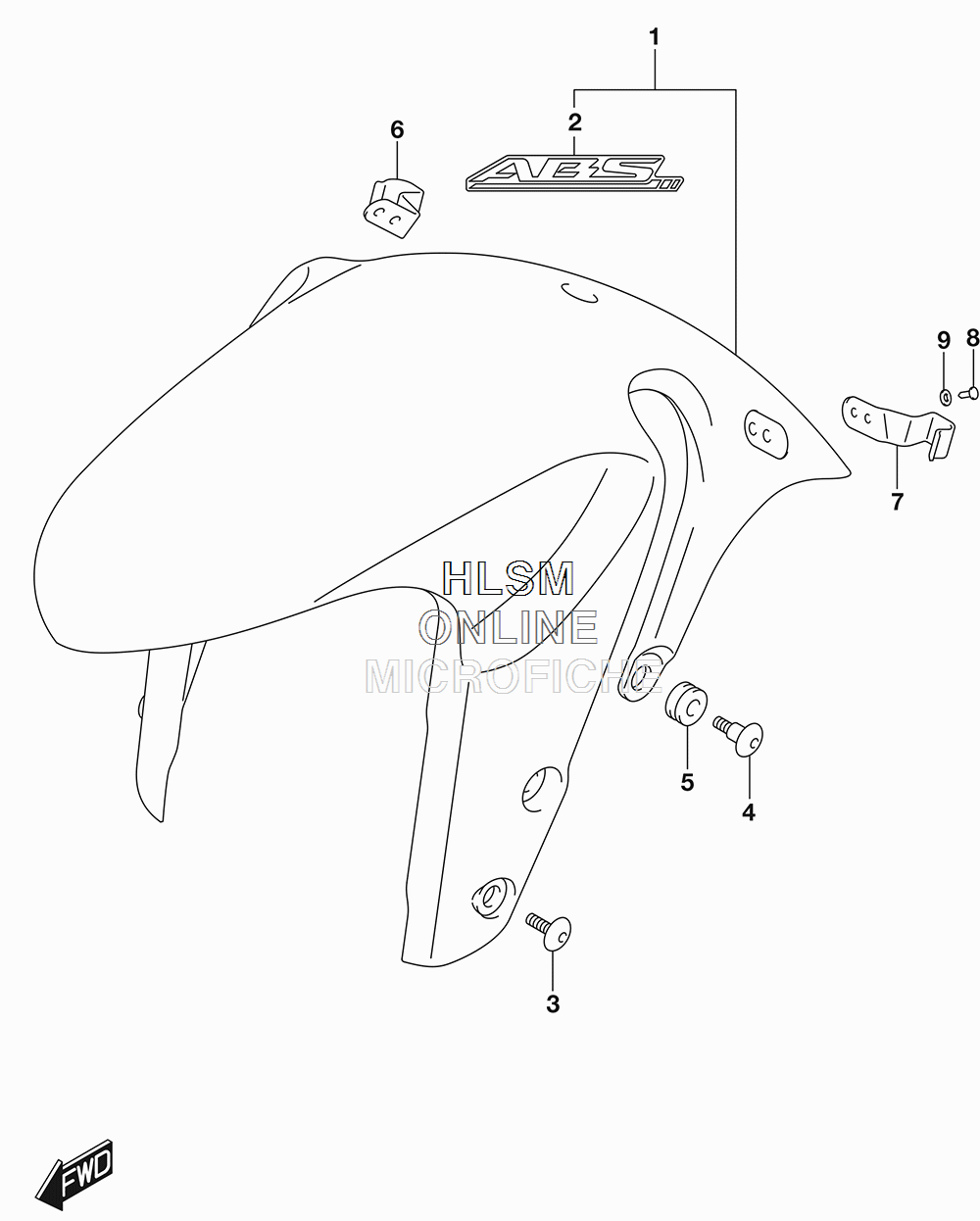

FENDER - FRONT (EXCEPT CALIF.) для Suzuki GSX-S1000A - 2017 года выпуска
-
№АртикулНазвание
-
1-153100-04K00-YSF FENDER ASSY, FRONT (FOR YSF - BLUE)FENDER ASSY, FRONT (FOR YSF - BLUE)
-
1-253100-04K00-YVB FENDER ASSY, FRONT (YVB - BLACK FOR AV4)FENDER ASSY, FRONT (YVB - BLACK FOR AV4)
-
1-353100-04K10-PGZ FENDER ASSY, FRONT (FOR PGZ - GRAY)FENDER ASSY, FRONT (FOR PGZ - GRAY)
-
2-168151-38G00-1ZY ...EMBLEM, "ABS" (1ZY - GRAY FOR YSF,YVB)...EMBLEM, "ABS" (1ZY - GRAY FOR YSF,YVB)
-
2-268151-38G10-A79 ...EMBLEM, "ABS" (A79 - GRAY/GRAY FOR PGZ)...EMBLEM, "ABS" (A79 - GRAY/GRAY FOR PGZ)
-
309139-06169 SCREW (6X16) (FRONT)SCREW (6X16) (FRONT)
-
409139-06190 BOLT (6X20) (REAR)BOLT (6X20) (REAR)
-
509320-09016 CUSHION (REAR)CUSHION (REAR)
-
653117-04K00 CLAMP, BRAKE HOSE (RH)CLAMP, BRAKE HOSE (RH)
-
753118-04K00 CLAMP, BRAKE HOSE (LH)CLAMP, BRAKE HOSE (LH)
-
809229-04038 RIVETRIVET
-
908322-0104B WASHERWASHER
